SAGIS consists of a collection of processing tools that collate a wide range of spatial data and transform it into a form that can be input to the river water quality planning models, SIMCAT and MPER (this manual assumes the user is familiar with the basic principles and mode of operation of SIMCAT and MPER). This document describes the set-up requirements and functions available within SAGIS. Manuals for SIMCAT and MPER are available from the Environment Agency.

It is recommended that modellers become familiar with ArcGIS Pro. There are free introductory online courses available from Esri (information available at the following link; https://www.esri.com/training/catalog/57630435851d31e02a43f007/getting-started-with-arcgis-pro/).

Format of the manual

This user manual aims to provide a step-by-step guide to operation of SAGIS in ArcGIS Pro. This information is provided by a series of grey boxes (each with a number) as listed in the Contents. SAGIS provides opportunities to vary the basic operation by changing the settings on the various forms, details of which are provided in the main text, along with information on how SAGIS works (further details of how SAGIS was created and underlying theory are reported in UKWIR reports and scientific papers^1).

System specification

Windows 10 operating system. The software will NOT operate reliably in other versions of Windows.
ArcGIS Pro 2.3. Note that this is not the latest version but is the version in which the software has been developed. Performance in later versions of ArcGIS pro is untested. Esri’s hardware specification for ArcGIS Pro 2.3 is available via the following link; https://pro.arcgis.com/en/pro-app/get-started/arcgis-pro-system-requirements-2-3-0.htm. Testers have, however, found that a dedicated graphics card hasn’t been required for SAGIS related tasks although the speed of processing has been found to be sensitive to the hardware specification and if operated from a local or network drive location.
Microsoft Office 365. Many of the reporting functions have been migrated to Excel workbook templates which are embedded within the SAGIS add-in. The workbooks use macros which require the Visual Basic for Applications (VBA) references shown in the screenshot (Figure 1) below to be activated.

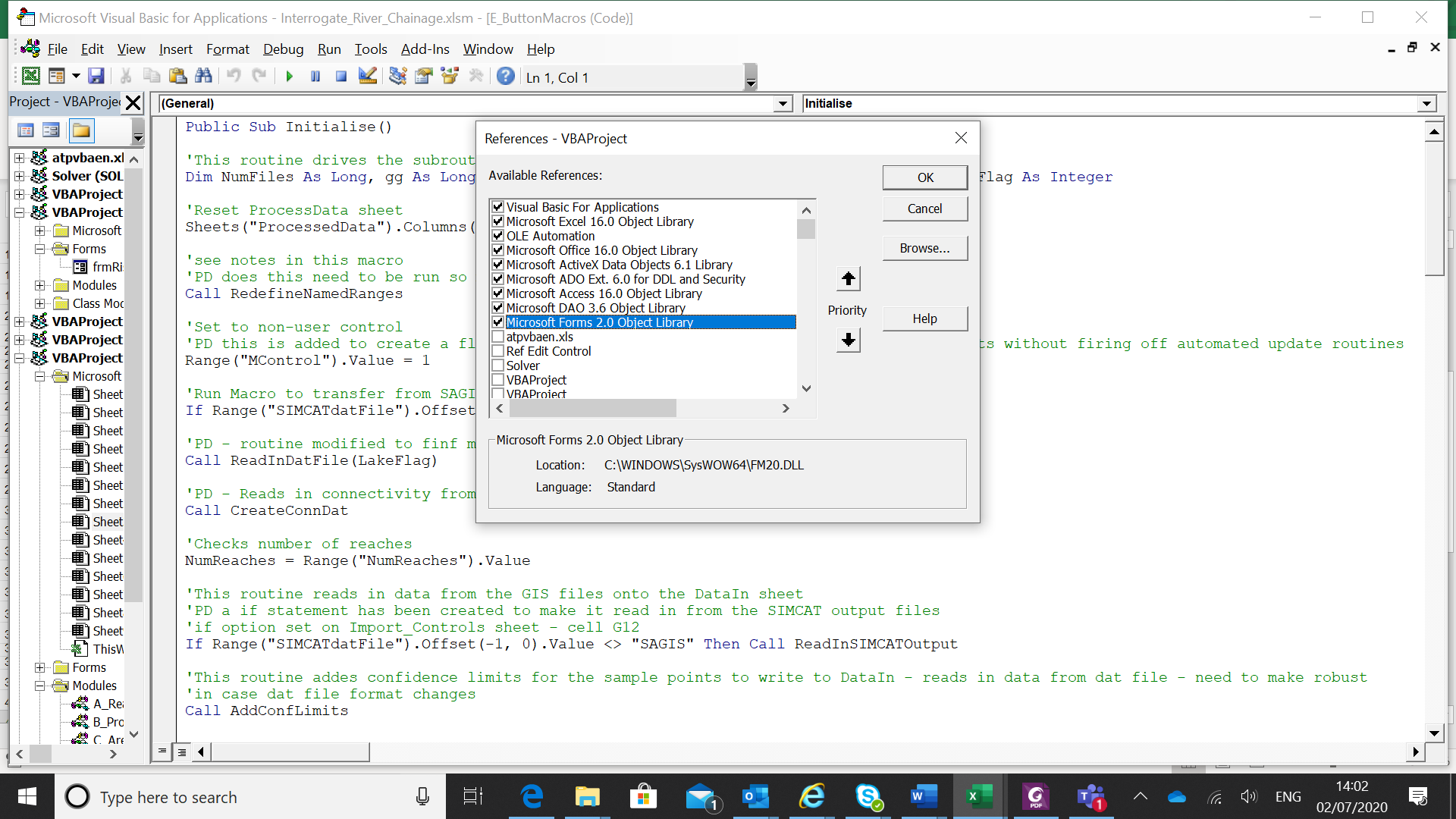

Figure 1 VBA references

Database updates

The model database structure has been modified to improve user experience. A schematic of the updated model components is given in Figure 2. The changes include:

The consolidation of Export Coefficient databases to a ‘Land National Database’ and a ‘LTRac National Database’ (consolidated LakeExportCoefficientDB and TransWatersExportCoefficientDB).
The database formerly known as SAGISObsData is now defunct, with relevant tables moved to the ‘Common Database’.
The ‘layer files’ are now embedded within the SAGIS add-in and NPD template files have been relocated to the common tables database.

SAGIS databases

The required data to run SAGIS is held in a series of databases which must, with one exception, be available in advance of creating a SAGIS project, namely:

Land National Database – This contains national data for diffuse and point source inputs. Diffuse inputs are specified on a 1 km² grid, whilst the point sources are defined as points with Easting and Northing references. Land National databases have been created for England/Wales and Scotland (previously referred to as ‘Export Coefficient databases’). The national databases are used to build the regional SAGIS models and are not typically used in ‘day to day’ operation of SAGIS. Note that it isn’t required to specify a ‘Land National Database’ (these are not usually distributed with other model components since the embedded PSYCHIC and NEAP-N data are only available under licence or where the data are required to fulfil a statuary responsibility – contact your relevant regulatory agency for further information) but modellers should be aware that upon running the ‘Open and Update’ process, the system will produce an alert which, in this instance, can be ignored.
Regional Database – This contains the spatial information related to regions that the UK has been divided into for the purposes of modelling (19 regions for England and Wales and over 100 for Scotland). The Regional Database contains region-specific data that appears in SIMCAT dat files.
SIMCAT Common Database – This contains data and settings that are common to different regional SAGIS models, including default settings (e.g. effluent water quality) and observed water quality data (environmental and discharge). In Scotland there is a separate common database for each model region.
LTrac National Database – this contains sector data relating to Lakes and Estuaries included in the SAGIS model. The LTrac national database is used to build the regional SAGIS models and are not typically used in the ‘day to day’ operation of SAGIS.
Outputs Database – Modellers may optionally create an outputs database to which model outputs are written to directly rather than the regional database as in the legacy version.

It is recommended that modellers create back-up copies of all project databases in advance of any modelling project.

Figure 2 Components of the SAGIS modelling system

Installing the Add-In

The ArcGIS Pro version of SAGIS is distributed as an Add-In that users must install within ArcGIS Pro. In advance of installing an Add-In any previous versions must be removed. To do this:

1	*Remove Previous Versions of Add-In*
1	Open ArcGIS Pro.

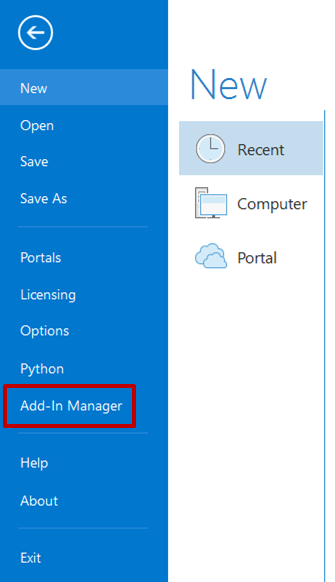

2	Select Settings then Project, and then the Add-In Manager option (Figure 3) which will list the installed Add-Ins.
3	Choose the Add-In to delete and select Delete this Add-In.

Figure 3 Add-In Manager

The installation process is straightforward:

2	*Install Add-In*
1	Ensure ArcGIS Pro is closed.
2	Double click the provided Add-In.**
3	Select Yes to the digital certification pop-up and then OK.

SAGIS interface

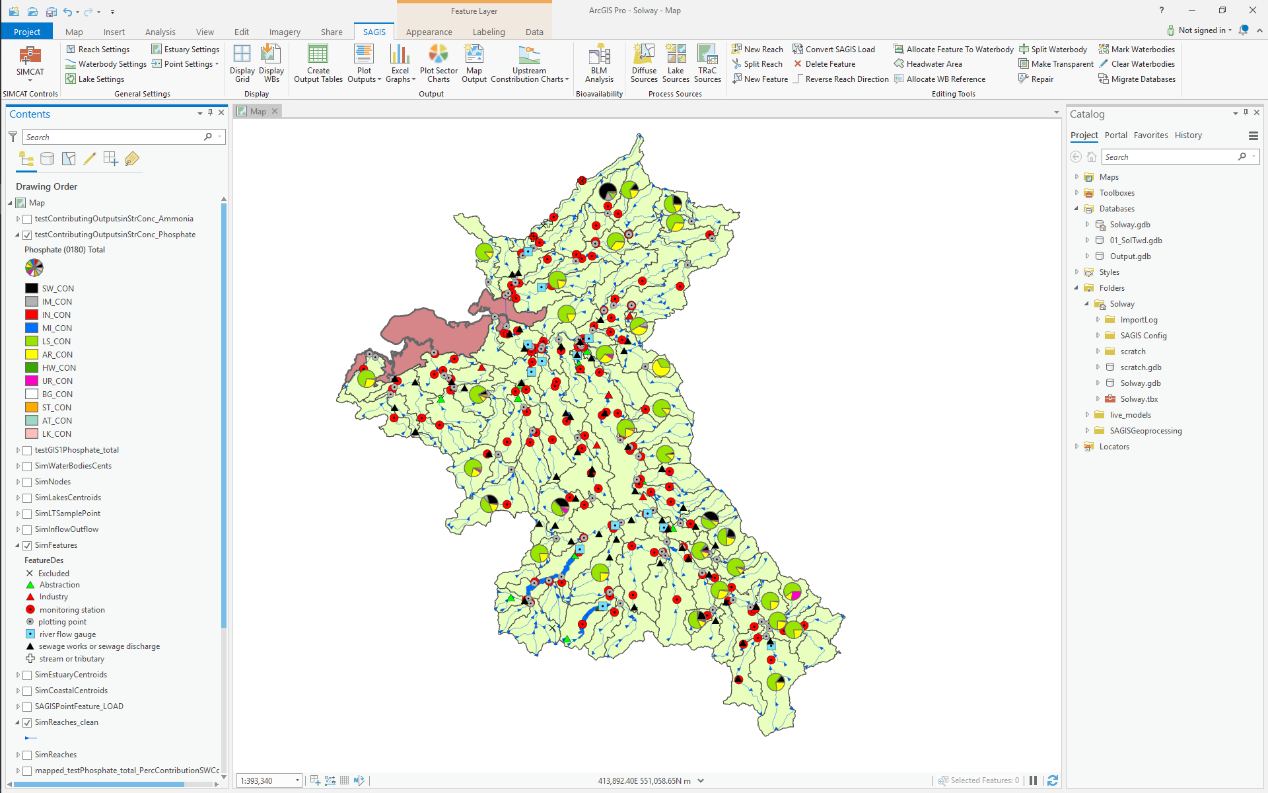

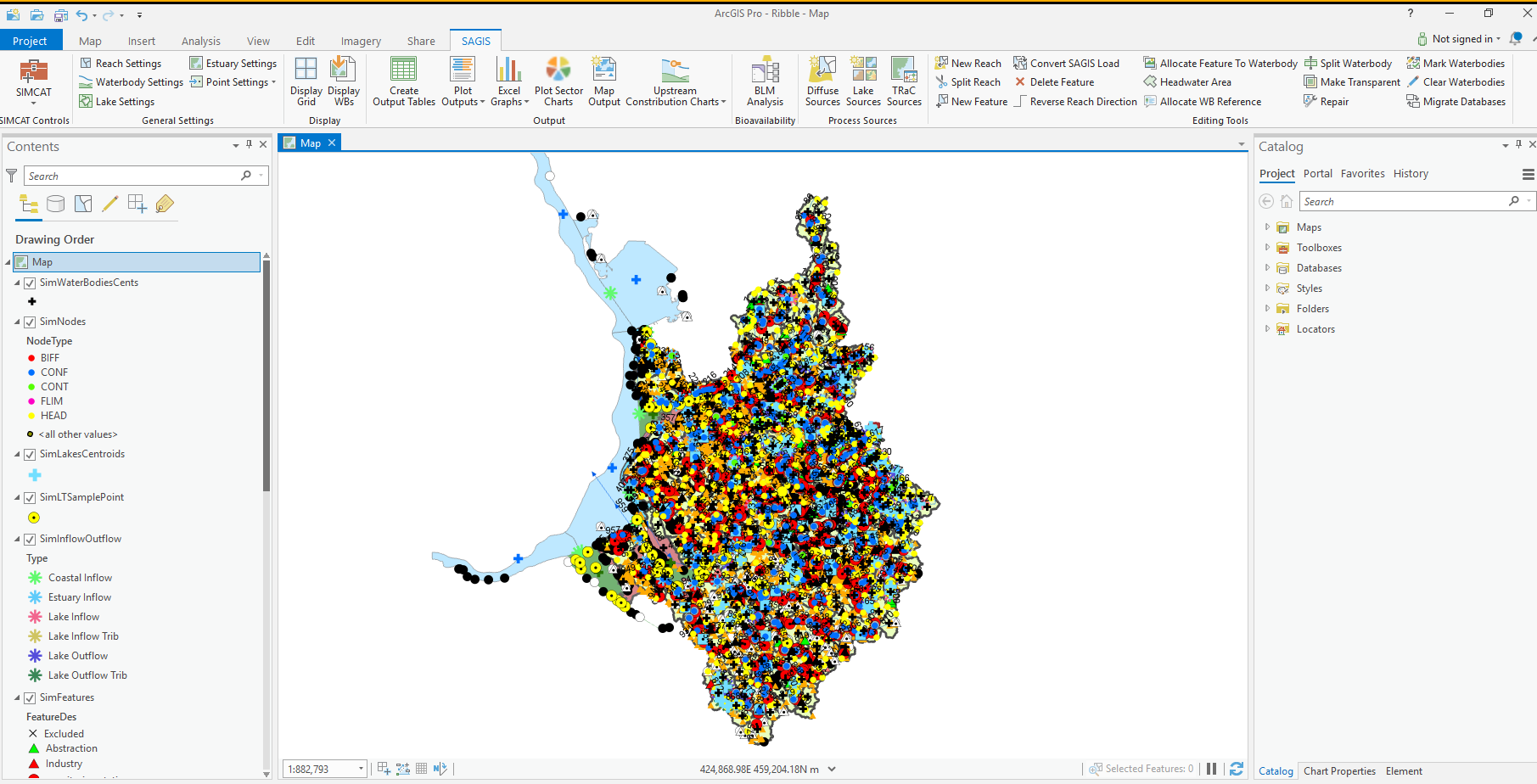

All SAGIS processing tools are contained in the SAGIS tab on the toolbar in the ArcGIS Pro project, as shown below (Figure 4). Standard ArcGIS pro tools are fully functional and can be used to manipulate the data and modify visualisation of outputs.

Figure 4 SAGIS GIS interface tab

Activating geoprocessing log files and viewing history

Before commencing modelling, users should ensure that ArcGIS Pro is configured to save geoprocessing log files. This can be done by:

3	Activating Geoprocessing Log Files and Viewing History
1	Select Project* then Options and Geoprocessing to open the form shown in* Figure 5.
2	Check the Write geoprocessing operations to XML log file* box (highlighted in yellow in Figure 3), then select OK.*

Activating Geoprocessing Log Files and Viewing History

Select Project then Options and Geoprocessing to open the form shown in

Figure 5.

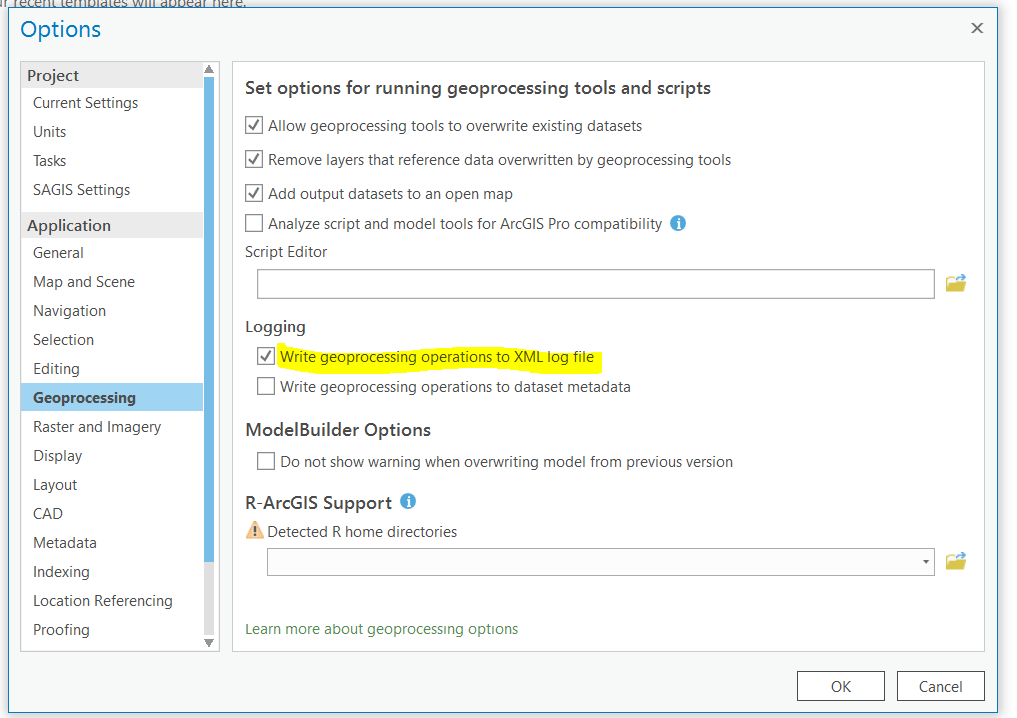

Check the Write geoprocessing operations to XML log file box (highlighted in yellow in Figure 3), then select OK.

This is necessary because if a geoprocessing task fails at any stage, or if a user identifies a problem with the outputs of a particular process, these files will be required to diagnose the underlying causes. Note that when using SAGIS a pop-up window showing geoprocessing history (Figure 6) will appear on the righthand side of the screen which provides feedback to the user on progress. The progress notifier may be pinned to the screen and the system messages reviewed, although these outputs are written to a log file which also reports time elapsed for discrete processing functions. The log files can be located by pasting the following location into Windows Explorer which will open a folder containing a series of xml files as in Figure 7.

%APPDATA%\Esri\ArcGISPro\ArcToolbox\History

Figure 5 Geoprocessing options form

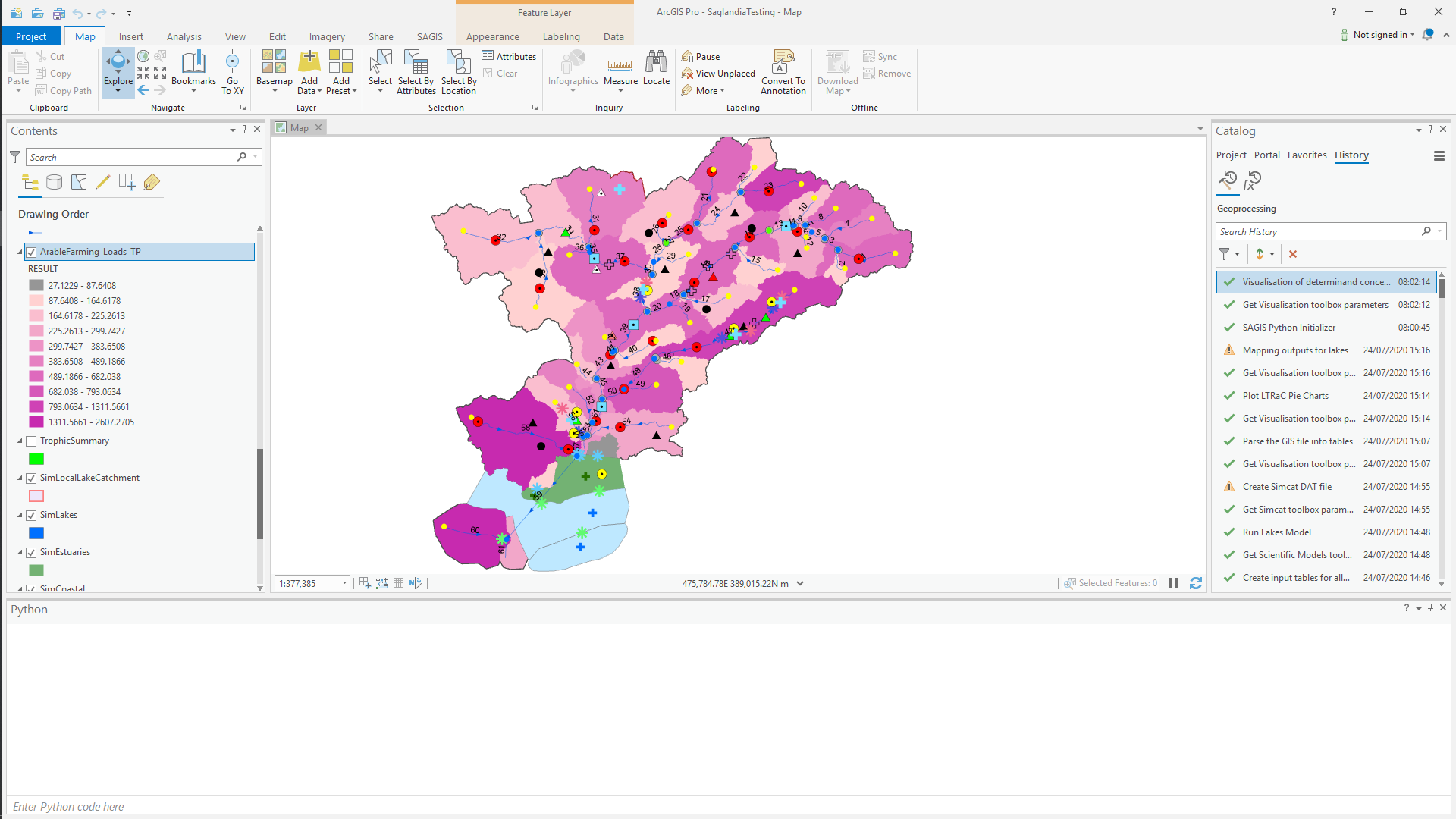

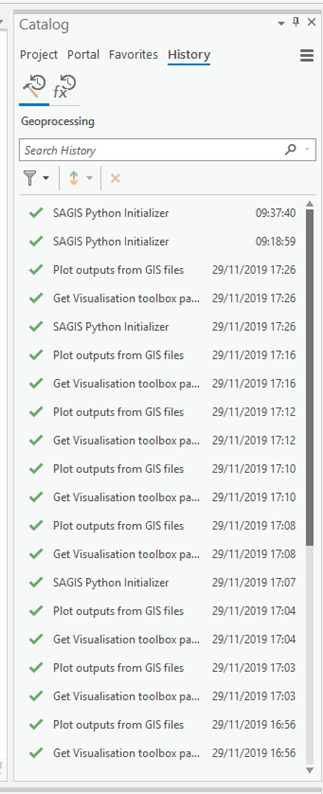

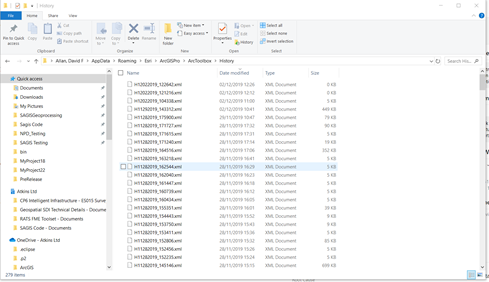

Figure 6 Geoprocessing history Figure 7 Geoprocessing log files

Managing SAGIS projects

SAGIS model files can be located on any accessible drive or folder including OneDrive although modellers should be aware that the periodic OneDrive backup process might ‘lock’ databases which can interfere with modelling actions. The SAGIS processing tools are embedded within the SAGIS aprx (equivalent to the ArcMap mxd). To begin a SAGIS project, an existing or blank project is opened in ArcGIS Pro. Once an ArcGIS Pro project has been created, it can be saved and re-opened as required.

If multiple copies of the aprx are created for a model region, these will all access the same databases so changes made in different aprx’s will affect the same source data. Multiple aprx’s of the same model region accessing the same databases should be avoided. Making copies of the regional databases, each related to a different suite of substances is one option to simplify data management and avoid the need to rebuild databases when switching between different groups of substances.

Using SAGIS (high level overview of simple functions)

A modeller will perform the following actions to create a SAGIS project:

Connect SAGIS to the model databases. Done by performing Configuring a Project, Open and Update or Refresh Layers actions. This writes data to attributes tables that are used in subsequent steps. The Refresh Layers option is typically used where databases are transferred from one modeller to another where there is the intention to retain the database settings (that is, an Open and Update is not required – refer to Chapter 4 for further information on Refresh Layers).
Specify the General Settings for the determinands to be modelled. Choose General Settings, selectable through the SIMCAT button. Name the dat file.
Customise the dat file to be created. Choose Create SIMCAT File, selectable through the SIMCAT button. Customise the dat file (usually unnecessary) and apply calibration settings. Select Run to create the dat file.
Run SIMCAT.
Plot the outputs. A range of visualisation options are available to present the results of the SIMCAT simulation.

These are described in further detail later.

Inputting improved data based on local information

SAGIS has been set up using national datasets with the aim of providing a consistent approach to national and regional water quality planning. These national datasets may, however, not include all of the key influences on water quality in a catchment because:

Some influences including landfills, quarries, contaminated land, coal mines, are not represented by these national datasets.
Better information may be available; for example, output from sewer network modelling by water companies in relation to impacts of intermittent discharges.
Some errors may exist in national datasets with regard to the location and influence of features.

It will, therefore, be important that the models are checked by scientists with local knowledge of catchments and that better data is used where available.

Configuring a Project

This chapter describes how to connect SAGIS to model databases by ‘configuring’ a project. The process is as follows:

4	*Configuring a Project*
1	Click on Project then Options and SAGIS Settings to open the form shown in (Figure 8).
2	Select the required file geodatabases (including the Regional Database) and the location of the Simcat Folder using the Windows Explorer browsers.
3	An Output Database must be selected (i.e. the location to which model outputs are written). A blank database is created when a Project is created in ArcGIS Pro which could be used (refer to the Esri website given in the introduction for training on using ArcGIS Pro). This could also be the Regional Database although this is discouraged to avoid cluttering these databases with model output files.
4	Select OK.

The geodatabase structure includes the Land National Database (consolidated export coefficient database) and LTRac National Database (consolidated export coefficient database for lakes and transitional waters). It isn’t required to specify a Land National Database (these are not usually distributed with other model components) but modellers should be aware that upon running the Open and Update process, the system will produce an alert which, in this instance, can be ignored.

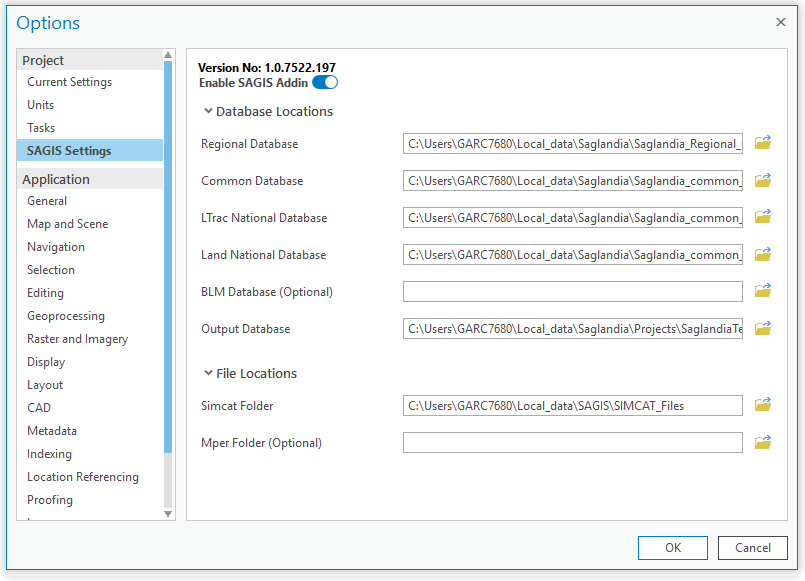

Figure 8 SAGIS Settings Options form

Building Regional Databases

This chapter describes how the information in the national sector databases (Land National Database and LTRac National Database) is processed to create the tables in the Regional Database that SAGIS ultimately uses to create the inputs to SIMCAT (i.e the sector data). These tools only need to be used when building the models; they are not required by the regular user of the tool.

Populate regional diffuse export database

The Diffuse Sources tool (Figure 9) takes the data on diffuse chemical loads or concentrations, standard deviation and correlation coefficient from the national sector databases (for each km² grid cell) and either adds these up (loads), or calculates an average value (concentration, standard deviation and correlation coefficient) for each water body, which is then stored in the relevant Regional Database (i.e. the current selected Regional Database; Figure 8).

Figure 9 Diffuse Sources button

This processing set up only needs to be repeated if the sector data or water body shapes change.

The Diffuse Sources tool operation is only applied to the tables with the Use field ticked (or set to ‘yes’) in the MasterTableNames table within the national sector databases. These can be unticked if changes are only required for some sectors. There are four types of table in the Land National Database; load (LOAD), concentration (CONC), coefficient of variation (STDDEV) and correlation coefficient (CORCOEFF), which are all translated to waterbody-based values when populating the regional model databases.

5	*Building Regional Tables for Diffuse Source Inputs*
1	Specify the Land National Database containing the data in the SAGIS Settings (Figure 8), then select OK.
2	Click on the Diffuse Sources button (Figure 9 - which is available in the SAGIS tab on the ArcPro toolbar, Figure 4).

Create lakes and estuaries export database

The Lakes Sources (Figure 10) and TRaC Sources (Figure 11) buttons are clicked to extract the diffuse data from the LTRac National Database to populate the Regional Database.

This step will only need to be repeated if the LTRac National Database or water body shapes change.

6	*Building Regional Lake and Estuary Input Tables*
1	Specify the LTrac Database containing the data in the SAGIS Settings (Figure 8), then select OK.
2	Click on Lake Sources or TRaC Sources button (Figure 10 or Figure 11 - which are available in the SAGIS tab on the ArcPro toolbar, Figure 4).

Loading Regional Data

When SAGIS operates it can model up to ten chemicals at one time (i.e. the maximum number that SIMCAT can simulate using a single dat file). If a different set of chemicals need to be modelled, it is necessary to load the data related to the new set of chemicals. The user might also need to set up SAGIS for a different region. Two approaches can be applied by SAGIS to set up, and switch between models: 1) Open and Update and 2) Refresh. The key differences between these are explained below:

Open and Update transfers the data from several tables in the selected Common Database and Regional Database (Figure 8) for the selected chemicals into the attributes table of the ArcGIS geodatabase layers on the SAGIS map. This overwrites any temporary changes that have been made to the data in the attributes table data, for example when running scenarios. This prevents the SAGIS data being ‘destroyed’ by the user.
Refresh Layers switches the SAGIS interface to the geodatabases and tables associated with a different model region. In contrast to Open and Update this does not change the data in the attributes data for the selected region. The data contained will be those uploaded when Open and Update was last run on the selected region applied to the chemicals selected at this time. Refresh Layers takes only takes a few seconds, so is a way to quickly move between regional models with the required chemicals already set up. The target databases must be specified in the same manner as for Open and Update (i.e. on the SAGIS Options page - refer to Figure 8).

Open and Update

When the model Opens and Updates, the data in the layers in GIS are populated with fixed data taken from several tables in the selected Regional Database and Common Database (Figure 8). This processing step is used to build a model for a different region, apply new chemical substances or reset the modified settings for the current region.

7	*Open and Update Regional Database*
1	Select the SIMCAT icon (on the main screen below the Project tab; Figure 12) then Open and Update to open the Open and Update Options form.
2	Change the values on the Open and Update Options form (Figure 13) as required.
3	Select Run.

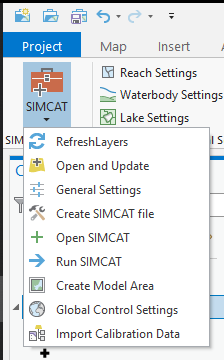

Figure 12 SIMCAT menu items

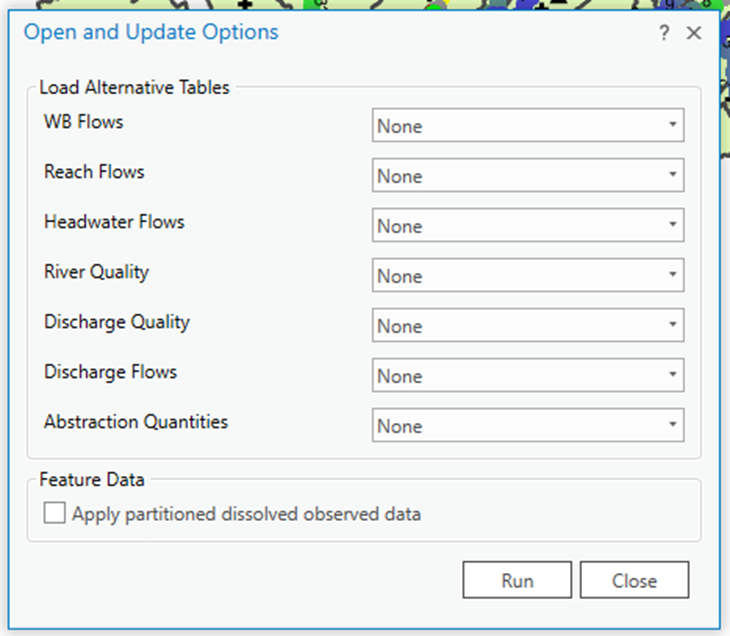

Figure 13 Open and Update Options form

When the model Opens and Updates, it loads data from a series of core databases in the Regional Database and Common Database. The dropdown boxes in the Load Alternative Tables part of the form allow the user to select different versions of these tables that are held in the databases. For example, the user might create a version of the waterbody flow data related to climate change scenarios which, if selected, can then be used to carry out model runs. Similarly, water quality for a different period might be selected or consented effluent quality values rather than observed.

When creating these new versions of the tables, these must have the same name as the unmodified table but with further characters added to the end of the name (e.g. WBFlow_Estimates could become WBFlow_EstimatesCC). If this convention is not followed the new table will not appear in the dropdown box.

Refresh Databases

The following steps are followed to refresh the Regional Database:

8	Refresh Regional Database
1	Click on Project* then Options and SAGIS Settings to open the form shown in (Figure 8).*
2	Specify the location of the Regional Database, then select OK.
3	Select the SIMCAT* icon then Refresh Layers (Figure 12).*

Global Controls

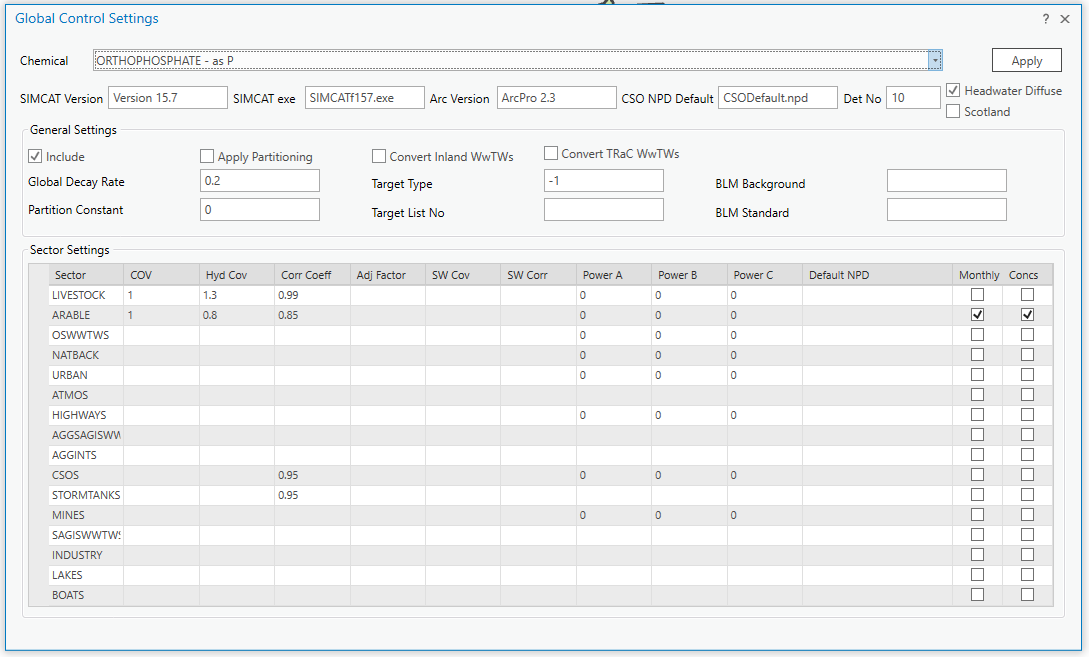

The Global Control Settings form (Figure 14) is used to manage global settings which are specified in the DeterminandsForSIMCAT table in the Common Database (pre-dates the development of SAGIS). These are applied to any model that is opened and updated. The Global Controls form is used to set up the way in which inputs from different sectors are set up for each chemical substance. These are implemented when the SIMCAT dat file is created.

Figure 14 Global Control Settings form

To change the global settings:

9	*Modify Global Controls*
1	Select the SIMCAT icon then Global Control Settings (Figure 12) to open the Global Control Settings form (Figure 14).
2	Select the determinands you wish to work with by ticking the Include box and clicking Apply. Deselect others by unticking the Include box. Ensure that no more than ten chemicals are included for a single dat file (this is a limitation of SIMCAT).
3	Change the settings and then click on Apply once selections are complete. It is advisable to check General Settings to ensure the correct/intended determinands are selected.

The settings are listed below (refer to the SIMCAT user manual for information about the SIMCAT specific settings):

SIMCAT Version – This is the version stamp printed at the top of the SIMCAT output files that is used for version control.
SIMCAT.exe – This is the current version of the SIMCAT executable file. This only needs to be changed if a new version of SIMCAT is deployed.
Arc Version – Current version of Arc (e.g. ArcPro 2.3).
CSO NPD Default – Name of default npd distribution used to generate the CSO and stormtank non-parametric inputs files.
Det No – Number of determinands included in the SIMCAT output files (normally 10).
Headwater Diffuse – When this is ticked headwater sector inputs are added when the SIMCAT dat file is created.
Scotland – This is ticked to apply modifications to the way SAGIS is set up and run for the Scottish models.
Include – When this is ticked, the determinand will be added when the model is Opened and Updated.
Apply Partitioning – This is ticked to ‘convert’ total metal concentration to a dissolved phase concentration equivalent (requires that a partition coefficient is pre-specified which is, however, in place for most metals). If observed dissolved data for determinands for which Apply Partitioning has been ticked is to be included (within the outputs, for example, to compare observed and predicted values), then, when the model is Opened and Updated, the Apply partitioned dissolved observed data tick box on the Open and Update Options Form (Figure 13) should be checked.
Convert Inland WwTWs – Converts inland point load features to flow and concentration features when the dat file is created.
Convert TraC WwTWs – Converts coastal and estuary point load features to flow and concentration features when the dat file is created.
Global Decay Rate – Global decay rate.
Partition Constant – Partition constant/coefficient (zero if no value).
Target Type – Target type (as defined by SIMCAT).
Target List No – Number of WFD type target used to assess compliance.
BLM Background – Biotic ligand model background concentration (background concentration allowance for bioavailability-based standards for trace metals).
BLM Standard – Biotic ligand model standard (bioavailability-based standard for trace metals).
COV – If a number is entered, this overrides the value for the COV derived from the Land National Database with the specified value.
HydCOV – If a number is entered, this overrides the value for the COV derived from the Land National Database by applying the specified multiple of the COV of the diffuse inflow for the same reach.
Corr Coeff – If a number is entered, this overrides the value for the correlation coefficient derived from the Land National Database with the specified value.
Adj Factor – Factors up or down of the inputs (loads or concentrations) associated with the specified sector and substance. This can be used to adjust for systematic biases in the loads for all inputs. If further adjustments are later applied on a waterbody or reach basis these adjustments are combined.
SW COV – Coefficient of variation for seawater concentrations in estuaries (this is used for the estuary functionality).
SW Corr – Correlation coefficient for the seawater concentrations in estuaries (this is used for the estuary functionality).
Power A – This is the power index term in the power functions to define input load distributions.
Power B – This is the baseline load in the power functions to define input load distributions.
Power C – This is the cut-off percentile below which loads are set to zero.
Default NPD – Name of the template NPD file (with average load of 1) used to create the reach npd files.
Monthly – If the loads in the Land National Database have been set up on a monthly basis, the dat file will be set up to receive a monthly distribution of inputs loads.
Concs – If ticked sector inputs will be added as concentrations rather than loads.

General Settings

The General Settings form (Figure 15) contains the settings related to chemical substances in SIMCAT (this translates to the [a] General and [b] Determinands sections in the SIMCAT dat file). The form is also used to create the SIMCAT dat file name and location and generate the suspended solids non-parametric files if the tool is being used carry out runs involving the partitioning of metals.

Different settings can be created as scenarios (related only to settings on the General Settings form) which can then be selected using the dropdown box.

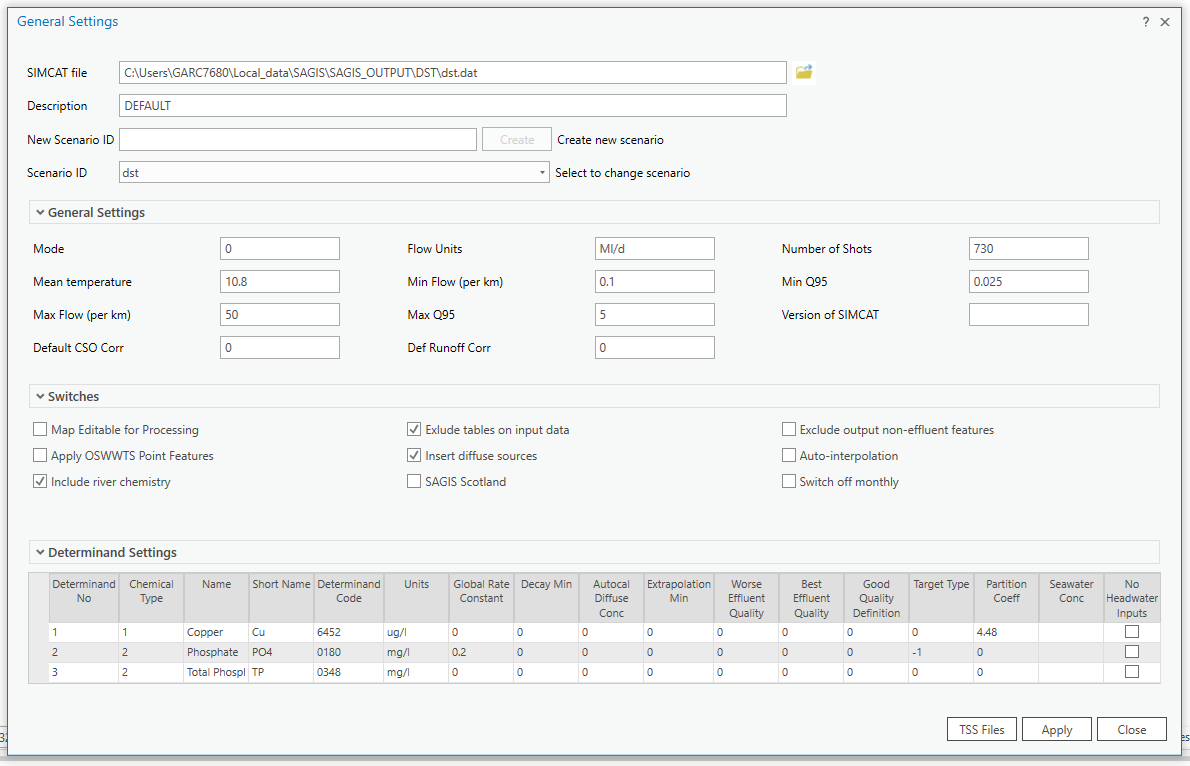

Figure 15 General Settings form

To use the General Settings form:

10	Apply General Settings
1	Select the SIMCAT* icon then General Settings (Figure 12) which loads the General Settings form (Figure 15).*
2	To select a scenario previously set up, click on the Scenario ID* dropdown box and select the scenario. The associated settings will then be loaded.*
3	To create a new scenario, first select an output location and name for the new dat file. This can be modified manually be editing the SIMCAT File input box or by clicking on the file button beside this box. This opens a File Open dialogue to select the location and add the name of the dat file (extension). This must not exceed 75 characters in length.
4	Add text to the Description* box that describes the scenario.*
5	Change any of the settings (these are described below).
6	To run partitioned metals, files with information on suspended solids are required in the same folder as the SIMCAT dat file. These are created by clicking on the TSS Files button. TSS Files must be created prior to running the CreateSIMCAT function.
7	Add a Scenario ID to the New Scenario ID* box. For a new dat file name to be applied it is necessary to click on Create new scenario after entering a scenario name, then to click Apply.*

The settings on the General Settings form are described below (Further information on these settings can be found in the SIMCAT user manual):

Mode – If the value is zero, SIMCAT is run in mean mode. If it is set to one, SIMCAT is run in percentile mode.
Number of Shots – Number of SIMCAT shots.
Flow Units – Flow units in SIMCAT.
Mean Temp – Mean temperature in SIMCAT.
Min Flow (per km), Max Flow (per km), Min Q95 and Max Q95 – This sets limits on the maximum and minimum values for the mean and Q95 flow per kilometre when the dat file is generated.
Version of SIMCAT – The version of SIMCAT as printed on the first line of the SIMCAT output files. This is used to check that the correct version of SIMCAT is being used.
Default CSO Corr – The default value for correlation between CSO spills and river flow (usually this is overridden by a feature specific value).
Def Runoff Corr – The default value for correlation between runoff flow and river flow (usually this is overridden by a feature specific value).
Exclude tables on input data – SIMCAT setting to reduce the size of the outputs by excluding data in the input tables.
Exclude output non-effluent features – SIMCAT setting to control which features generate outputs to the SIMCAT output files.
Apply OSWWTS Point Features – In some cases, data is available to create inputs from septic tanks as points rather than a diffuse layer (as points in the SAGISPointFeature_LOAD layer) which might be preferable when modelling small catchments (e.g. surrounding a lake). Ticking this box modifies how SAGIS reads in OSWWTWs (i.e. from SAGISPointFeature_LOAD instead of using the normal diffuse layer).
Insert diffuse sources – SIMCAT setting to add diffuse sources when SIMCAT runs.
Auto-interpolation – SIMCAT setting to control how autocalibration is applied.
Include river chemistry – SIMCAT setting to control whether river chemistry is applied.
SAGIS Scotland – This tickbox needs to be ticked if running the Scottish SAGIS regional models. It modifies how SAGIS reads in some of the data, formatted differently in these models.
Switch off monthly – Ticking this tick box switches off the monthly simulation in SIMCAT and greatly improves the run times.
Global Rate Constant – The global first order decay is the default value applied to all reaches if this is not replaced by a reach specific value.
Decay Min – Minimum value below which the simulated concentrations is not allowed to go due to decay.
Autocal Diffuse Conc – The concentration with which gap filling flows are added.
Extrapolation Min – This sets a minimum value when SIMCAT extrapolates the extra exponential decay introduced by gap filling.
Worse Effluent Quality – When SIMCAT calculates the discharge quality required to meet river targets, this sets a maximum value.
Best Effluent Quality – When SIMCAT calculates the discharge quality required to meet river targets, this sets a minimum value.
Good Quality Definition – This variable defines an annual mean of good discharge quality, which can be imposed in cases where the current quality is worse than this and the river target cannot be achieved, even if the discharge had zero concentration of pollutant.
Target Type – This sets the target type, 1 = mean, 2 = 95 percentile 3 = 90 percentile, 4 = 5 percentile, 5 = 10 Percentile and 6 = 99 percentile. When the value is negative, SAGIS applies a reach specific target derived from the ReachTargets table in the Common database.
Partition Coeff – Partition coefficient applied when calculating metal partitioning.
Seawater Conc – the concentrations, applied in the estuary calculations.
No Headwater Inputs – Excludes sector inputs at headwater nodes.
TSS Files – Clicking this button creates files for suspended solids using observed suspended solids data shapefile (TSSdata) now stored in the Common database (previously the SAGISObservedData database). These files are required by SIMCAT when metal partitioning is applied. Once these files have been created in the folder containing the SIMCAT dat file, the operation does not need to be repeated (unless the SIMCAT dat file is written to a new folder). Note that TSS Files must be created in advance of dat file creation (CreateSIMCAT).

Data Editing

The editing forms described in this chapter are used to modify the values in the attributes table of the SAGIS layers. These values are used to create the settings and data in the SIMCAT dat file. An alternative is to edit the attributes tables directly using standard ArcGIS Pro tools. Creating scenarios using the editing forms is covered in Chapter 8.

Editing Reach data

To edit the reach data, the following steps should be followed:

11	Edit Reach Settings
1	Highlight a reach or reaches on the map, or select a reach in step 3.
2	Click on Reach Settings* (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) which loads the Reach Settings form (Figure 16).*
3	Change the values on the Reach Settings form as required. If several reaches are highlighted, the Reach No (Recalc) dropdown box can be used to navigate between the selected reaches. If a reach or reaches are not already selected (in step 1), then the Reach No (Recalc) dropdown box can be used to select a reach from a list of all those shown on the map.
4	Monthly flow factors can be added in the Monthly Flow Factors* tab (Figure 17).* These values multiply the annual mean and Q95 values to generate monthly means and Q95 values. To activate this a value of 1 needs to be entered into the SimReaches table in a field called MonthlyFlow (this operation cannot be carried out using the form). netered in
5	To create new targets (i.e. which differ from those shown in the Chemical Settings table) new entries need to be made into the RiverQualityTargets table in the Common Database.
6	Click on Apply* to save the changes.*

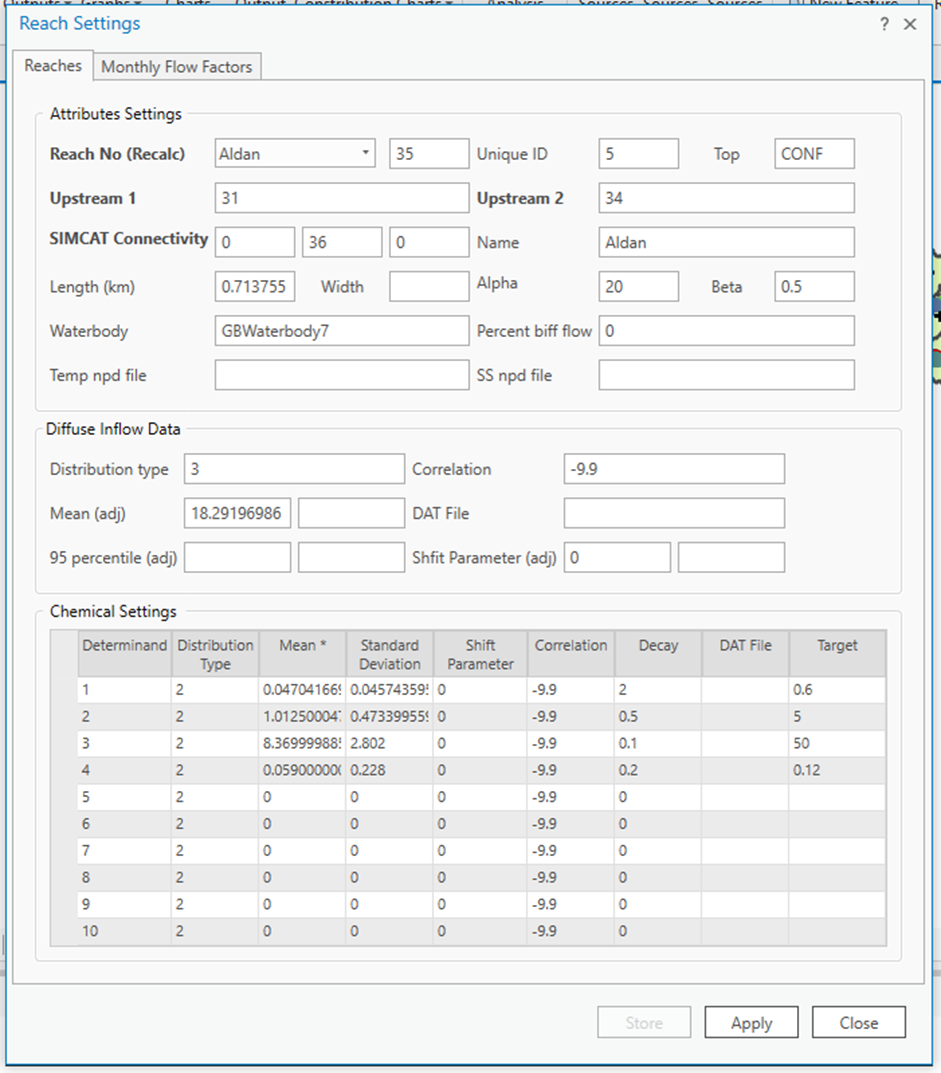

Figure 16 Reach Settings form

Further explanation of the key inputs is provided below:

Unique ID – is the unique reference for the reach which is used when cross referencing data from the Regional Database tables.
Upstream 1 and Upstream 2 – are the SIMCAT model numbers (SimNo) of the upstream reaches.
SIMCAT Connectivity – defines the connectivity with the upstream and downstream reaches using the method applied by SIMCAT.
Alpha and Beta – are travel time parameters.
Percent biff flow – Where two reaches are downstream of a bifurcation this defines the percentage of the total flow passing down the selected reach.
Temp npd file and SS npd file – specify non-parametric files for temperature and suspended solids which are applied to each reach when SIMCAT runs. If Temp npd file input box is left blank, SIMCAT applies the annual average temperature as specified on the General Settings form. Suspended solid npd files are generated automatically when the TSS Files button on the General Settings form is clicked (as described in Chapter 6). Entering a file name in the SS npd file input box results in the specified file being used in preference (e.g. using improved local data). Note that TSS Files must be created in advance of dat file creation (CreateSIMCAT).
Diffuse Inflow Data – The data in this box define the statistics for diffuse quality (mean, Q95, distribution type, shift parameter, correlation and non-parametric file) for each chemical substance. Once values have been stored, they will no longer be defined as a default.

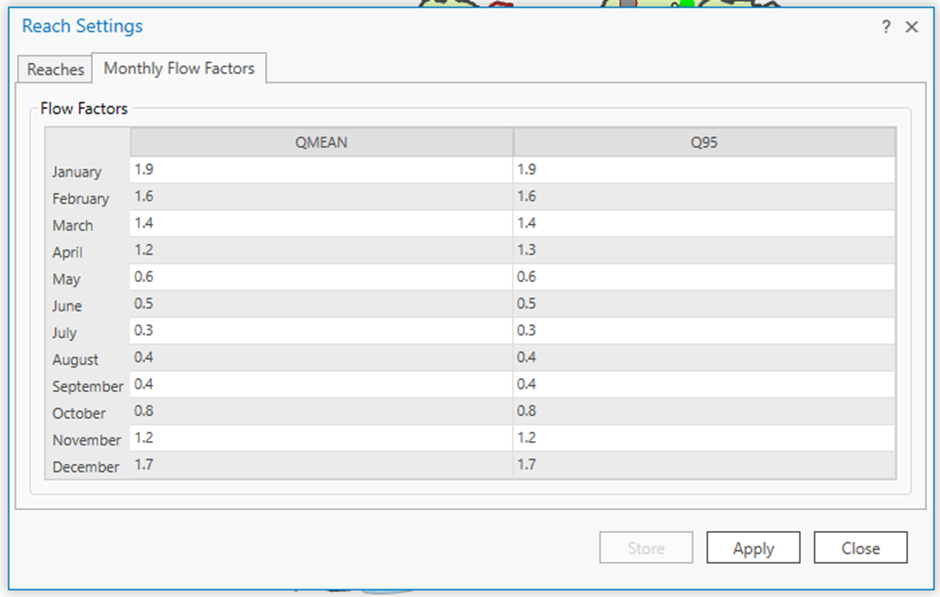

Figure 17 Reach Settings Monthly Flow Factors form

Opening and Updating the model replaces any modifications to the settings with the original values.

Editing Feature data

Feature data can be edited in both the SimFeatures, SimNodes or SAGISPointFeature_LOAD layers using Feature Settings, Node Settings and Feature Load Settings forms, respectively. It is important to note that features for Industry and Sewage Works are contained in both of SimFeatures and SAGISPointFeature_LOAD layers. The sewage works in the latter layer are smaller sewage works and works discharging into transitional or coastal waters that were not included in the original National SIMCAT models and are represented as loads. The industry loads in this layer are derived from the Pollution Inventory, whereas the values in the SimFeatures layer are taken from the original National SIMCAT models. Creating scenarios using the editing form is covered in Chapter 8.

To edit the feature data:

12	*Edit Feature Settings*
1	Highlight a feature or features on the map (either SimFeatures, SimNodes or SAGISPointFeature_Load). Unlike the other layers, only one feature can be selected at a time from the SAGISPointFeatures_LOADs and changes are only applied to the selected feature (multiple changes can only be made by editing the attributes table directly).
2	Select Point Settings (menu option which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) then Feature Settings (to edit SimFeatures), Node Settings (to edit SimNodes) or PFL Settings (to edit SAGISPointFeature_LOAD) which loads the Feature Settings form (Figure 18), Node Settings form (same as Feature Settings form, though labelled Node Settings) or Feature Load Settings form (Figure 19), respectively.
3	Change the values on the Feature Settings, Node Settings or Feature Load Settings form as required (key settings are described below).
4	If several reaches or nodes are highlighted, the Site Number dropdown box is used to navigate between the selected features.
5	Click on Apply to save the changes.
6	If the Complex Abstraction Settings (header) is selected, the Complex Abstraction Settings form is opened (Figure 20). This is used to enter information on abstractions from intakes to reservoirs (key inputs are described below).
7	To specify discharge parameters in monthly format (as opposed to an annual value), selected a discharge feature on the map, click the Monthly Feature Data button the Monthly Settings form (Figure 21) will open. Here, monthly values can be added for discharge flow AND discharge quality for the determinands available in the dropdown box (quality and flow values must be set for each chemical available within from the dropdown – this will be the same as the determinands selected for the model run). Once entries have been made the Apply button is clicked to save the changes. Note that monthly flow values will only be applied if a value of 1 is entered for the feature in a field called MonthlyFlow in the SimFeatures table (this operation cannot be carried out using the form – this selection must be set within the attributes table directly). Monthly entries should only be entered for feature types 3 (wastewater treatment works) and 5 (industrial discharges).
8	There are already data in the SimReaches table which set the monthly river flow profile when the Monthly option is selected. To apply a monthly river flow profile to headwater nodes (feature type 10) set the MonthlyFlow field in the SimNodes table to ‘1’ (default is ‘0’). In this case the monthly flow factors specified for the adjoining reach in the SimReaches table will be applied to the node.

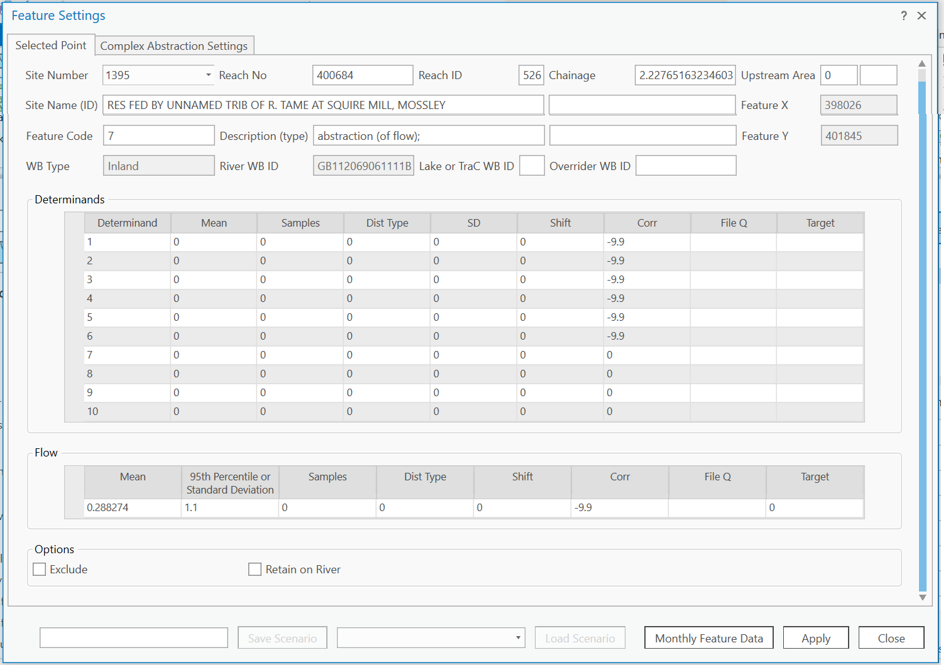

Figure 18 Feature Settings form

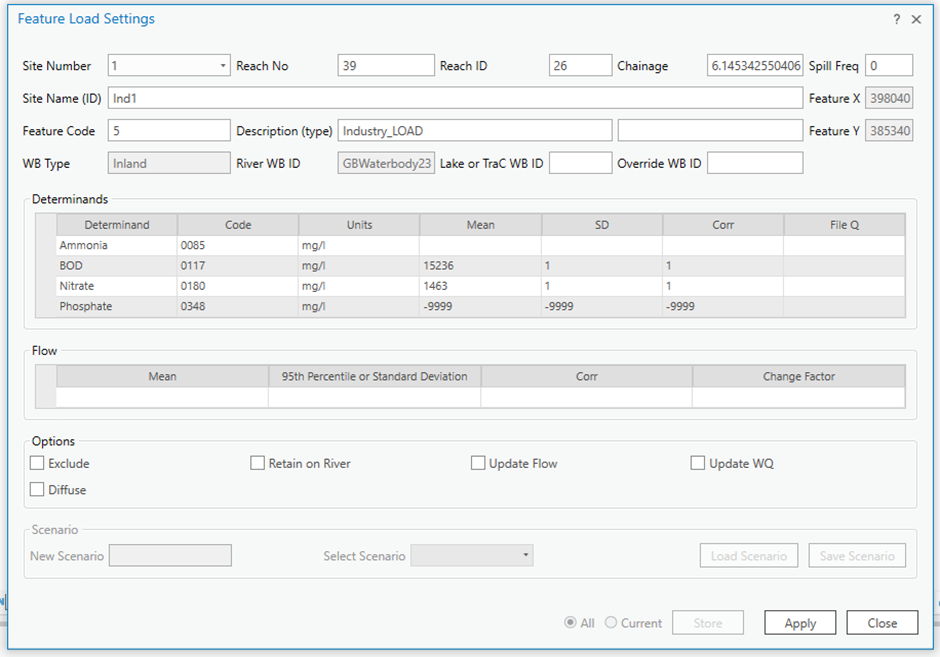

Figure 19 Feature Load Settings form

Further explanation of the key settings is provided below:

Site Number – is the Unique ID reference for the features which is used to cross reference the data in the Regional Database table during Open and Update.
Reach No – SIMCAT model reach number on which the feature is located.
Reach ID – Unique ID reference for the reach on which the feature is located.
Chainage – Distance of the feature from the start of the reach in km.
Upstream area – If the selected feature is a SimNodes this gives the area upstream.
Site Name (ID) – The Site Name is the name of the features as used by SIMCAT, whilst the ID is the name of the WIMS sample reference as listed in the SamplePointQuality or DischargeQuality tables in the Common Database.
Feature Code – is the SIMCAT feature code (e.g. 1 for monitoring point).
Description (type) – is the SIMCAT feature description.
WB Type – identifies the feature as an inland, lake or estuary/coastal feature.
River WB ID – River waterbody ID for an inland feature.
Lake or TraC WB ID – Lake or estuary/coastal waterbody ID for a non-inland feature.
Override WB ID – transfers the target waterbody ID to a preferred water body (river, lake or estuary). This might, for example, be used to make a sewage works discharge to an estuary even though it is located close to a river.
Water Quality data - These specify the statistics for the water quality data for up to 10 chemical substances associated with the feature (mean, sample number, distribution type, SD, shift parameter, correlation, non-parametric file and target).
Flow data – These specify the statistics for the flow data for up to 10 chemical substances associated with the feature (mean, Q95 or SD, sample number, distribution type, shift parameter, correlation, non-parametric file and target).
Exclude – excludes a feature from the dat file.
Retain on River – retains a feature as a river feature even though the location indicates if it should be a lake feature.

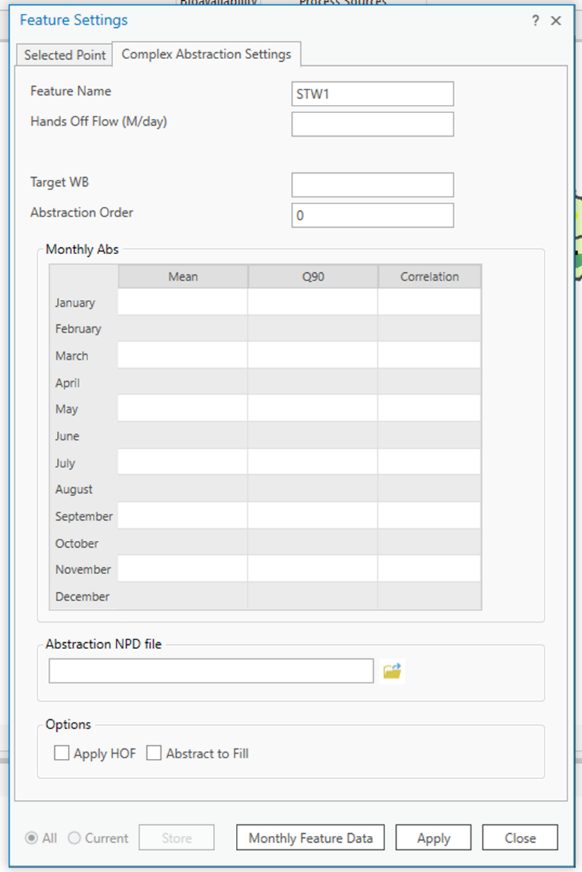

Figure 20 Complex Abstraction Settings form

Further explanation of the key inputs on the Complex Abstraction Settings form is provided below:

Hands Off Flow (Ml/day) – the river flow value at which the abstraction will cease to operate.

Target WB – The reservoir or lake water body ID.
Abstraction Order – shows which intake is used first, second, third etc. to fill the reservoir (1, 2, 3 etc is entered).
The Monthly Abs boxes are used to enter monthly values for the mean abstraction (Mean), the 10%ile abstraction (Q90) and the Correlation between the abstraction quantity and river flow.
Abstraction NPD file – specifies a non-parametric file for abstraction to the lake (selected by clicking on the button beside the box). The format of these files is specified in Chapter 18.
Apply HOF – applies a Hands-Off Flow specified for the abstraction. Water will be abstracted up to the Mean flow specified on the Feature Settings form.
Abstract to Fill – specifies that water is only abstracted to a reservoir until it is full rather than abstracted by the full amount.

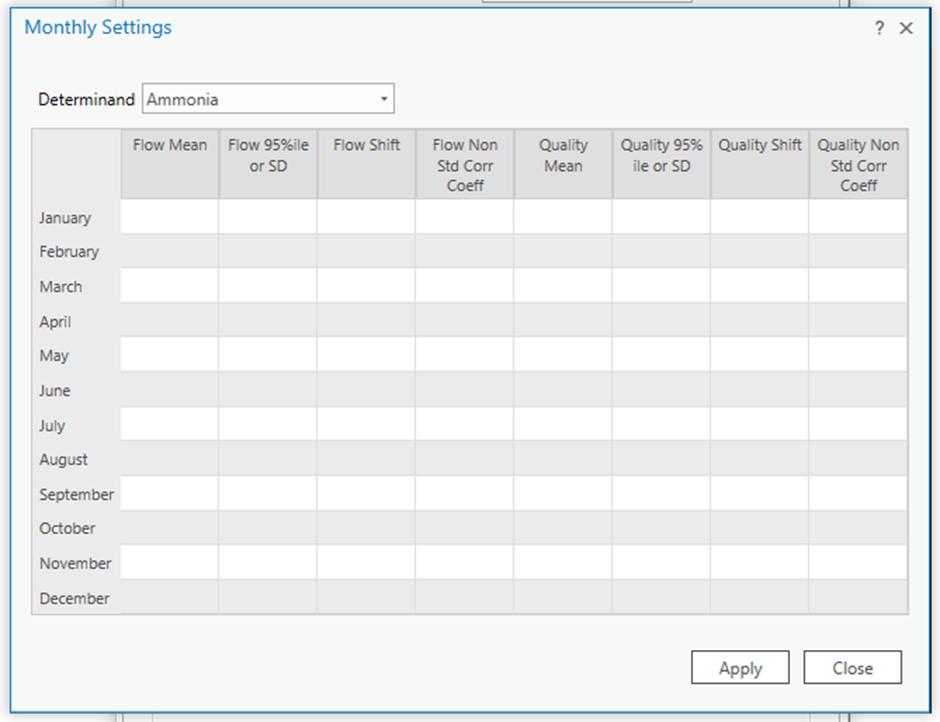

Figure 21 Monthly Settings form

Editing Water Body data

To edit the waterbody data:

13	*Edit Waterbody Settings*
1	Highlight a waterbody on the map.
2	Click on Waterbody Settings (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) which loads the Waterbody Settings form (Figure 22).
3	Change the values on the Waterbody Settings form as required.
5	If several waterbodies are highlighted, the Selected WBs dropdown box is used to navigate between the selected features.
6	Click on Apply to save the changes.

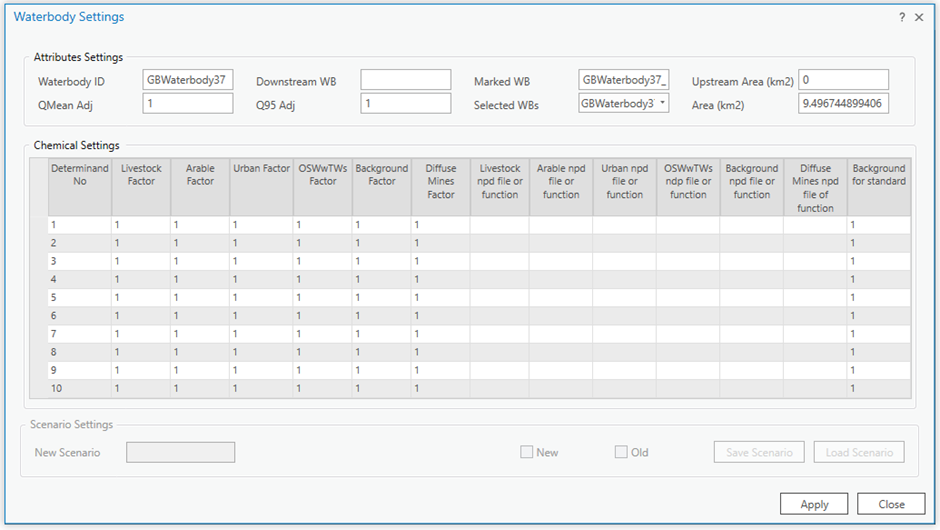

Figure 22 Waterbody Settings form

Further explanation of the inputs on the Waterbody Settings form is provided below:

Downstream WB – Waterbody ID for the downstream waterbody. This is only specified where the waterbody has no river reach so the loads associated with it needs to be transferred downstream. This can be disabled by unticking the box (e.g. if the transfer is carried out by creating a tributary).
QMean Adj and Q95 Adj – to apply factors to the diffuse inflows to improve model performance with regards to flow. These changes are fixed in contrast to the changes made via a calibration table (see Chapter 10).
Factors – are applied to the input loads for each chemical and diffuse input sector for each chemical substance (e.g. Livestock Factor, Arable Factor etc.). These can be used to apply scenarios for reductions in diffuse inputs.
NPD Files – are used to specify non-parametric files to input chemical loads for each diffuse sector (e.g. Livestock npd file, Arable npd file etc.). These are defined as a sequence of numbers that have an average value of 1 which are then factored up and down to provide the correct annual load when SAGIS creates the SIMCAT dat file. A StandardNPDs table has been created in the Common database. This methodology is aimed at providing a better representation of diffuse input driven by rainfall and runoff such as agricultural phosphorus inputs. In these cases, the standard log normal distributions can input too much load at lower flows which can result in over representation of concentrations for these sectors.

An alternative way to define the non-parametric relationship between load and flow is to enter the power function and baseload in the form xx_yy_zz where xx = the power function, yy = the fixed base load as a percentage of the total load and zz = a percentage cut-off below which the load is zero.

If no entries are applied in the form, the global settings values are used.

Editing Lakes data

Editing lakes data should be undertaken by qualified specialists with an understanding of lakes-related processes. To edit the lakes data:

14	*Edit Lake Settings*
1	Highlight a lake on the map (only one can be chosen).
2	Click on Lakes Settings (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) which loads the Lakes Settings form (Figure 23).
3	Change the values on the Lakes Settings form as required (Figure 23).
4	Click on Update to save the changes.
5	Monthly values for the setting and sediment release rates can be added by clicking on the Mon Rates button, which brings up the Monthly Lake Rates form (Figure 24).
6	An estimate of the annual settling) rates can be changed by clicking on the Ann Rates button, which brings up the Lake Rates form (Figure 25).
7	Input loads for birds can be modified by clicking on the Birds button which opens the Bird Inputs form (Figure 26). Nutrient excretion rates and monthly bird counts can be modified for each species listed by the dropdown box. Values for further species that are not already contained in the database can be saved by entering the name of the species in the Add Species box, either selecting Apply Default values (from the default table which include approximately 20 species) or inserting user defined values, then clicking on the Update button.**

Further explanation of the key inputs on the Lakes Settings form is provided below:

Volume (Ml) – specifies the lake volume. A volume npd file can be entered into the Volume (MI) NPD File box by clicking on the button and navigating to the file. This npd file is a non-parametric file providing information on how the volume of the lake varies (the format of the file is shown in Chapter 18).
Offline (Y/N) – An offline lake is not connected to the SIMCAT reach network.
GW Inflow – Groundwater mean inflow.
GW Inflow Q95 – Q95 of groundwater inflow.
GW Inflow Corr – Correlation between groundwater inflow and river inflow to the lake.
Local Area (km2) – This specified the local catchment area in km² around the lake and is only specified for offline lakes (see below).
Angling Days – allows the user to specify the number of anglers multiplied by the average number of days that they visit a lake. This overrides the default values in the LTrac Database.
Compensation Flow – Mean compensation flow out of the lake or reservoir.
Simulation Period (yrs) – Length of simulation period for the lake model in years.
Timestep (days) – Lake model timestep in days.
Output Type – This describes the way the water quality and flow output from the lake model is input to SIMCAT as i) Statistics (mean and standard deviation), ii) Monthly File (monthly means and standard deviation), iii) NPD File (NPD files for the flow and water quality probability distribution functions).
Hydrological Series File – allows the user to specify a series of random numbers that the lake model uses to carry out the detailed lake simulation (see Chapter 11). The sequence is ordered to represent sequences of dry or wet conditions. The file is entered by clicking on the button next to the box and navigating to the file. If nothing is entered into this box and default regional sequence is applied from the Regional Database or if this is absent, a national sequence from the Common Database is applied.
Dynamic Sediment – if ticked, the sediment concentration will change as chemicals move in and out of the sediment, based on the settling rate, sediment release rate and burial rate. Otherwise, the sediment concentration is fixed at the specified value throughout the simulation and chemical release from the sediment is controlled by this concentration and the sediment release rate.
Run Detailed - The lake model can be run in two modes Fast and Detailed – which is explained further in Chapter 11.
Exclude – excludes the lake from the simulation.
Lake Temperature Settings – monthly values for lake temperature.
Settling Rate – Lake model parameter to account for the decay or settling of a chemical out of the water column (m/day) which forms part of the lake model (see Chapter 11). Upper lower and upper limits can be specified between which values are sampled as part of the Monte Carlo lake simulation (alternatively just a single lower value can be applied as a constant setting). For settling rates, sediment release rates, burial rates and sediment concentrations, the values in these small input boxes can also be viewed and changed by double clicking on the box. This opens an input box into which new values can be entered.
Sediment Rel Rate – Lake model parameter (m/day) to account for release of a chemical from the sediment pool (upper and lower limits can be applied as described above). It is only applied in the Detailed model.
Burial Rate – Lake model parameter (m/day) to account for the permanent loss of a chemical from the sediment pool (upper and lower limits can be applied as described above). It is only applied in the Detailed model.
Sediment Conc – Starting sediment concentration. This remains fixed unless Dynamic Sediment is ticked. It is only applied in the Detailed model.
GW Qual Mean – If a groundwater flow (see above) is specified this is the mean concentration with which it is input to the lake.
GW Qual SD – If a groundwater flow (see above) is specified this is the standard deviation of the concentration with which it is input to the lake.
GW Qual Corr – If a groundwater flow (see above) is specified this is the correlation of the concentration with the input flow to the lake.
Target – Lake water quality target.

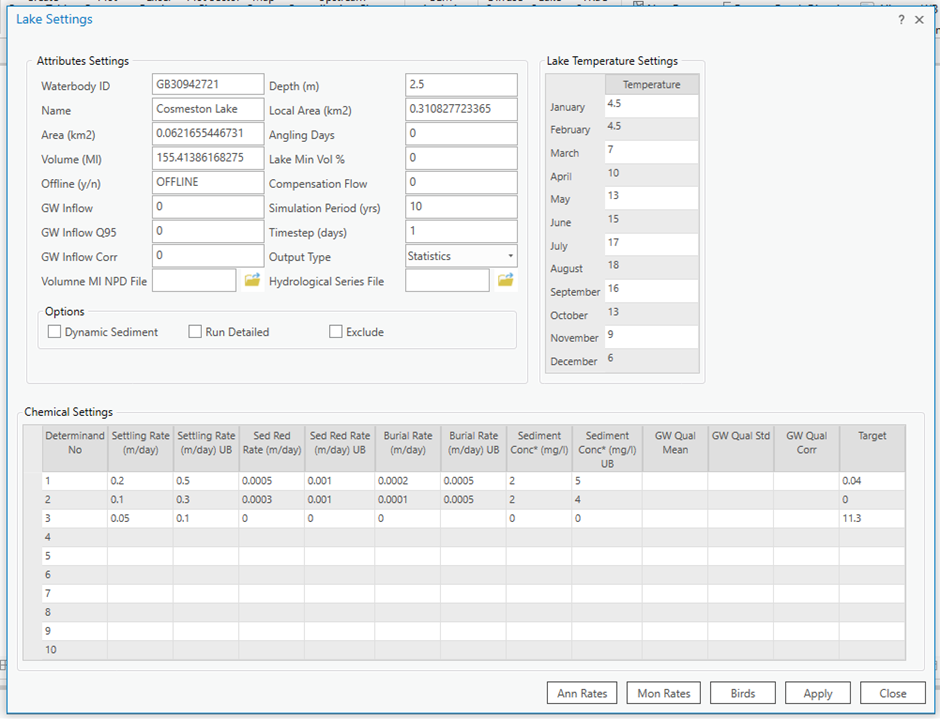

Figure 23 Lake Settings form

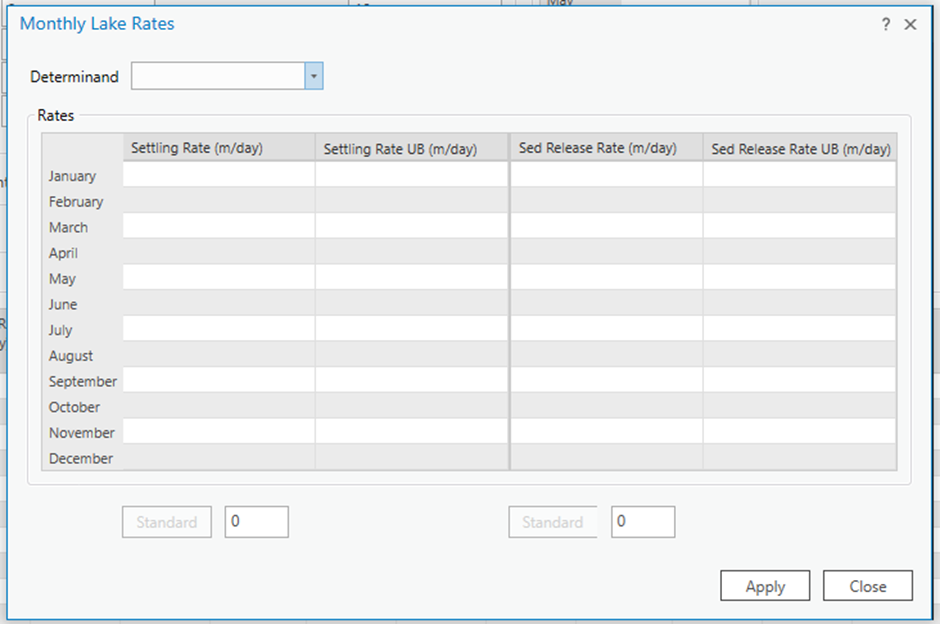

Figure 24 Monthly Lake Rates form

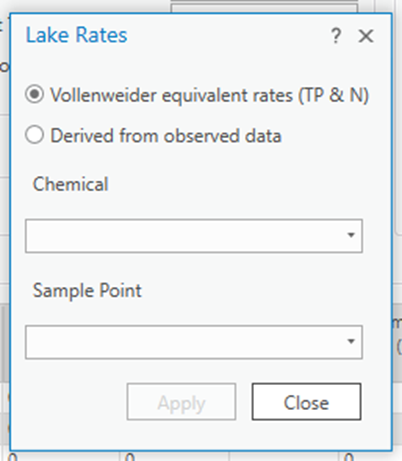

Figure 25 Lake Rates form

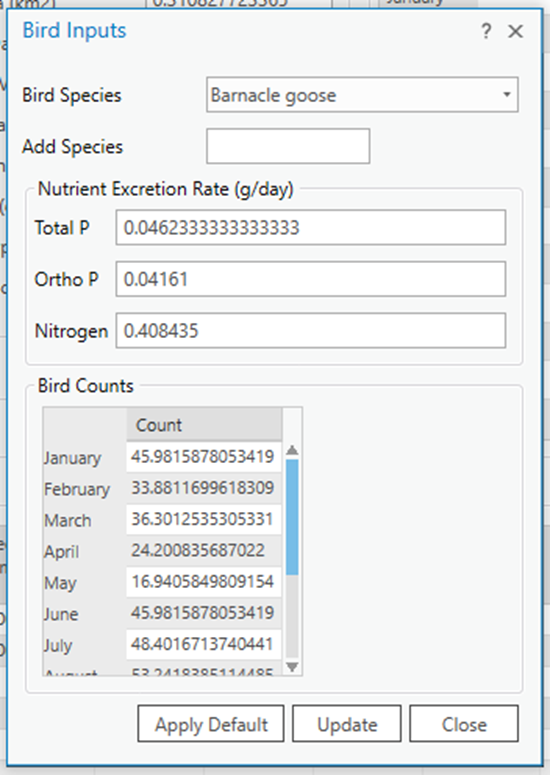

Figure 26 Bird Inputs form

Editing Estuaries data

To edit the estuary data:

15	*Edit Estuary Settings*
1	Highlight an estuary on the map (only one can be chosen).
2	Click on Estuary Settings (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) which loads the Estuary Settings form (Figure 27).
3	Change the values on the Estuaries Settings form as required.
4	Click on Apply to save the changes.

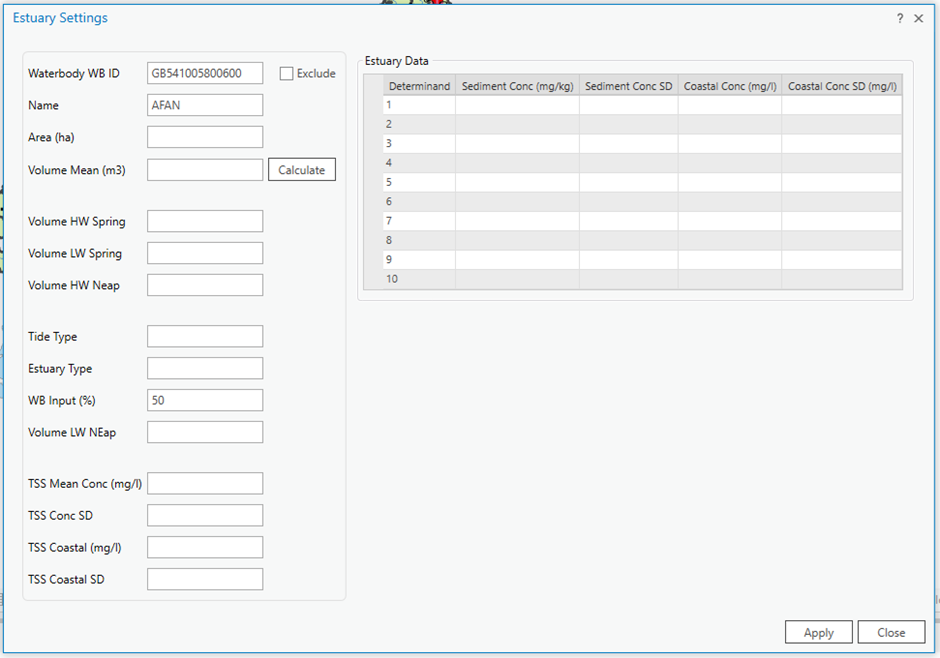

Figure 27 Estuary Settings form

Further explanation of the key inputs on the Estuary Settings form is provided below:

Volume Mean (m3) – specifies the mean volume unless high water spring, low water spring, high water neap and low water neap values are specified.
Estuary Type – Category of estuary type (e.g. Macrotidal, Mesotidal, Microtidal) with which the proportion of load passed downstream is associated.
WB Input % – Percentage of input load that is retained by the estuary before the load is passed downstream.
TSS Mean Conc (mg/l) and TSS Conc SD – Total suspended solids concentration in the estuary and associated standard deviation (derived from observed data).
TSS Coastal (mg/l) and TSS Coastal SD – Total suspended solids concentration in the coastal waterbody into which the estuary discharges, and associated standard deviation (derived from observed data).
Sediment Conc (mg/kg) and Sediment Conc SD – Concentration of each chemical substance associated with the suspended sediment.
Coastal Conc (mg/l) and Coastal Conc SD (mg/l) – Concentration of each chemical in the coastal waterbody into which the estuary discharges.

Setting Up Scenarios

The data input forms for Features, Waterbodies and Lakes described in Chapter 7 can be used to set up and save Scenarios. The components of these forms that are used to set up scenarios are shown below (Figure 28).

Figure 28 Setting up and saving scenarios

Settings for selected features can be saved as a scenario by entering a scenario name in the New Scenario ID box then clicking on the Create new scenario button (this only applies to selected features and only the currently selected feature for lakes).

To load a scenario the Scenario ID drop down button is selected which lists previously saved scenarios. The required scenario is selected from the dropdown list. This loads in all the saved values for all features specified in the selected scenario, not just the currently selected features.

Before creating a scenario, it is good practice to save a baseline scenario with the original values so that these can be reloaded when required (values can also be reset by Opening and Updating but this takes much longer).

Running SIMCAT and Viewing the Outputs

This chapter describes how the data created in the map attributes layers are translated into the input (dat) file to SIMCAT then run. Using the SAGIS interface, the SIMCAT outputs can then be viewed. Some of the forms described in this chapter show options to display results for lakes and estuaries and outputs related to the MPER model. These elements are covered in separate chapters in the manual.

General Settings and Create SIMCAT form

Creating an unmodified regional dat file

To create a SIMCAT dat file the name must first be specified on the General Settings form (Chapter 6). The Create SIMCAT File form (Figure 29) is then used to create the SIMCAT dat file. The basic steps to do this are described below followed by further information on how these steps can be modified.

16	Creating a Simple Regional SIMCAT dat File
1	Open the General Settings* form (Figure 15) by clicking on the SIMCAT icon then General Settings (Figure 8).*
2	Select an output location and name for the new dat file. This can be modified manually be editing the SIMCAT File input box or by clicking on the folder button beside this box. This opens a File Open dialogue to select the location and add the name of the dat file (extension dat). The dat file name must NOT begin with a number (e.g. 2020scenario.dat) but may contain numbers (e.g. scenario2020.dat). The full path length (i.e. dat file name and file path) must not exceed 75 characters.
3	Add text to the Description* box that describes the scenario.*
4	Add a Scenario ID to the New Scenario ID box and click on Save. For a new dat file name to be applied it is necessary to click on Save after entering a scenario name (i.e. create a scenario) then to click Apply.

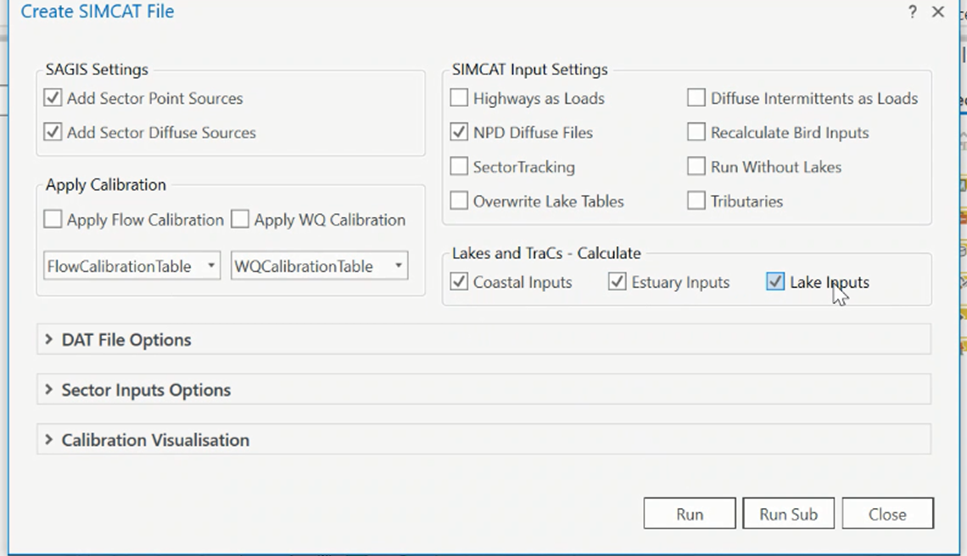

5	Open the Create SIMCAT File form by clicking on the SIMCAT icon then Create SIMCAT File. Figure 12).
6	Click on Run. This will create the unmodified dat file with default settings.

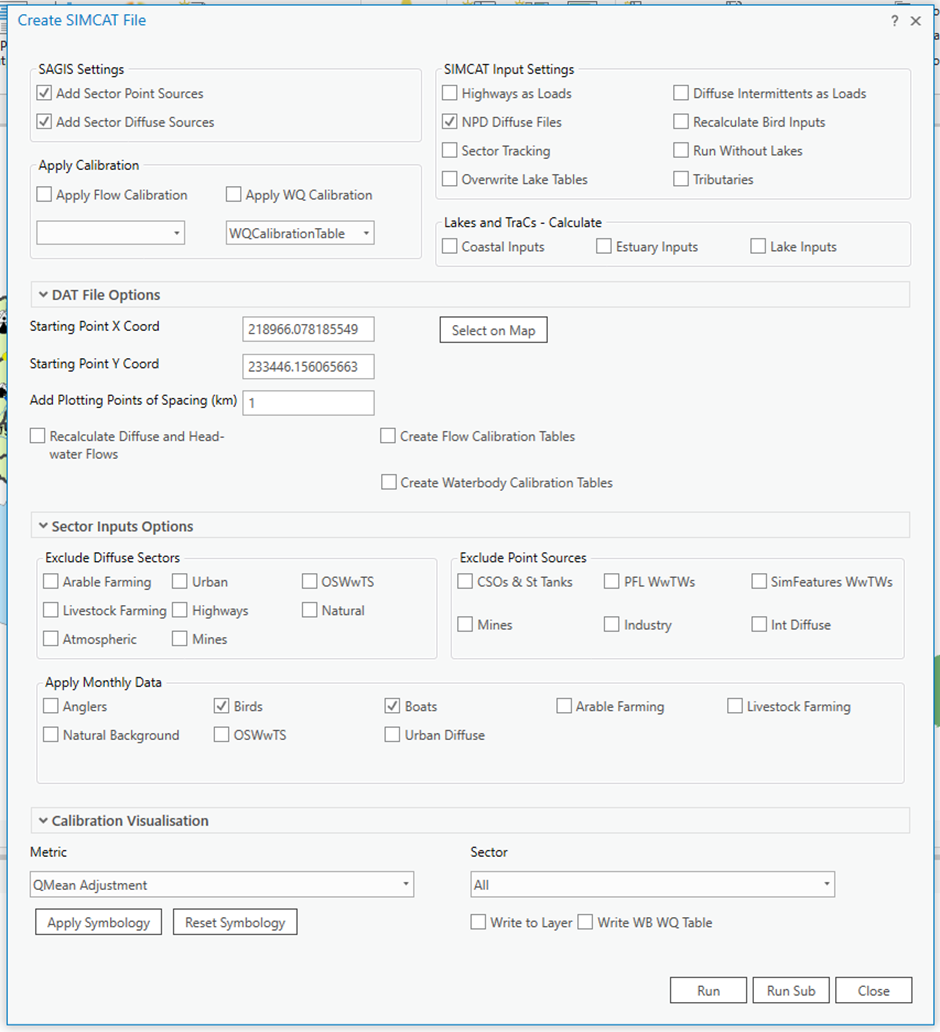

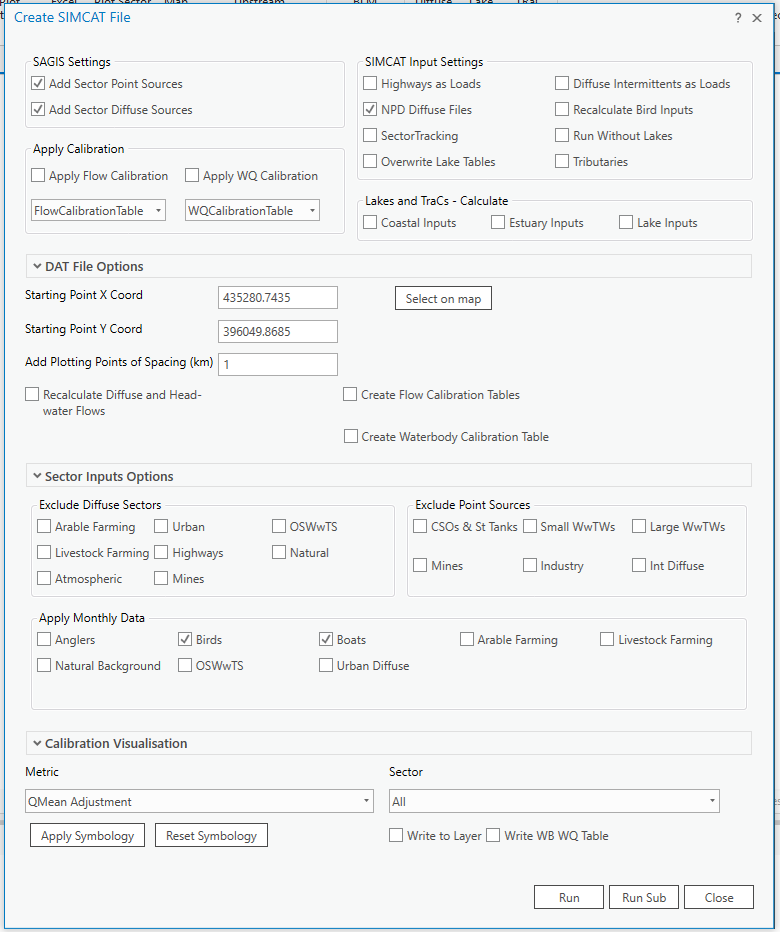

Figure 29 Create SIMCAT File form

Creating a sub-regional model

Sub areas of the regional model can be run by defining a sub-regional polygon.

Creating a Sub Area Polygon model

The first step is to create a polygon and SIMCAT dat file that covers the reaches for the sub area. To do this:

17	*Creating a Sub-area SIMCAT dat File using a Sub-area Polygon buttons*
1	Highlight the downstream reach of the model area.
2	Click on the SIMCAT icon then Create Model Area Figure 12) to open the Create Model Area form (Figure 30).
3	Give the model sub area a name, typically, the name of the river catchment in the Area Name input box.
4	Click Save to create the sub-model area (this is saved in the Regional Database).
5	Open the Create SIMCAT File form by clicking on SIMCAT then Create SIMCAT File.
6	Select the starting point within the submodel using the ‘Select on Map’ option (Figure 29)
7	Click on Run Sub. This will create the dat file with default settings.
8	This opens a dropdown box that lists all the sub-areas that have previously been created for the regional model (Figure 31). Select the area for which the sub-area model is required. This will create the dat file with default settings.**
9	Sometimes reaches are included in the sub area polygon that are not upstream of the selected downstream reach. For example, the waterbodies in SAGIS do not align perfectly with the confluences of the reaches or virtual reaches may cross the model area. This will result in the wrong reaches being selected when creating the SIMCAT dat file. This is corrected by opening the Create Model Area form again and selecting the model area using the dropdown box in the Revise area of the form and entering the Unique_Ref values of the reaches that need to be excluded. Once Save is clicked this information is stored and will be applied whenever the model sub area is used again to create a sub area SIMCAT dat file.
10	When creating a sub-area, it might not be required to include all areas upstream, for example if several upstream areas are linked together by virtual reaches (e.g. along the coast). To limit the extent of the upstream area created, enter the final upstream SIMCAT model number (SimNo) to include in the sub-area and the SimNode unique reference where the break with the upstream area is to be made. A reduced upstream area will then be created.
11	The existing sub-area can be mapped by clicking on the Map button. Clicking on the delete button removes the sub-area from the drop-down list.

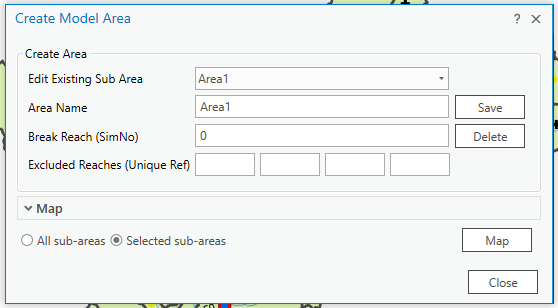

Figure 30 Create Model Area form

Figure 31 Select Sub Catchment box

Variations to basic model run

This following text describes how variations to the basic model run can be specified by clicking on the tick boxes on the form (Figure 29):

Add Sector Point Sources – adds point source information (this is the default condition). If the box is not ticked only diffuse inputs will be included in the dat file.
Add Sector Diffuse Sources box – adds the sector information derived from the Sector Load database (this is the default condition). If this is not ticked the SIMCAT models are created without the sector information (i.e. the pre SAGIS versions of the models are created in which diffuse inputs are derived from a user defined diffuse concentration rather than sector loads).
Highways as Loads and Diffuse Intermittents as Loads – change the way these sectors are input to SIMCAT as loads for each determinand, rather than the default condition of flows and concentrations.
NPD Diffuse Files – if ticked, non-parametric files are used to input diffuse loads (this is the default condition).
Recalculate Bird Inputs – if ticked, input loads from birds to lakes will be recalculated based in the entries using the Lake Settings form (see Chapter 11).
Sector Tracking – if ticked diffuse inputs from each marked model area will be tracked downstream (SIMCAT tracks inputs from point source inputs automatically). In order for the sector tracking to ‘work’ it is necessary that the waterbodies to be tracked have been ‘marked’. Waterbodies may be ‘marked’ for tracking by highlighting the waterbodies to be tracked (SimWaterbodies layer) and then selecting the Mark Waterbodies icon/tool located on the ribbon in the Editing Tools command set (see Chapter 14.13). Marking can be reset using the Clear Waterbodies icon/tool (see Chapter 14.14). A maximum of 100 waterbodies can be tracked (SIMCAT limitation). Note that tracking diffuse sector inputs increases the SIMCAT run time and the file size of the SIMCAT outputs.
Run Without Lakes – allows the user to switch off the inputs from lake outflows once the lake model has been run and these have been created (otherwise these are used as a default).
Overwrite Lake Tables – Ticking this box forces the table with information on local inputs of chemicals to the lake to be overwritten, otherwise existing values will be used.
Lakes Inputs, Estuary Inputs and Coastal Inputs – if these are ticked, SIMCAT output is generated at the boundaries between the river and lakes, estuaries and coastal waters, respectively, which are then used to calculate inputs to these water bodies (and used as inputs to the SAGIS Lake Model – Chapter 11).
Starting Points (x and y coordinates) – define the start and end of sub model reaches (as described in Section 9.2.1)
Add Plotting Points of Spacing (km) box – (1km is the default) sets the regular interval at which plotting points are created.
Exclude Sectors – Sectors can be selectively ‘switched off’ using the Exclude Diffuse Sectors and Exclude Points Sectors tick boxes.
Apply Monthly Data – Inputs monthly sector data but only if monthly loads have been created in the Land National Database. These are only applied if the Monthly option is selected for the sector and chemical on the Global Controls Settings form (Section *.*)

Calibration tables

Calibration adjustments (calculated outside SAGIS) can be applied using the Apply Calibration settings. Existing tables for water quality and flow are listed in the dropdown boxes. These are stored in the Regional Database and consist of adjustments to the diffuse flows and loads on a reach or catchment basis. The calibration tables must have the name FlowCalibrationTable and WQCalibrationTable with additional characters appended to differentiate between them. The calibration table is applied by selecting the required table from the dropdown box and ticking Apply Flow Calibration or Apply WQ Calibration for flow and water quality, respectively. Information on mapping the calibration factors is presented in Chapter 10.

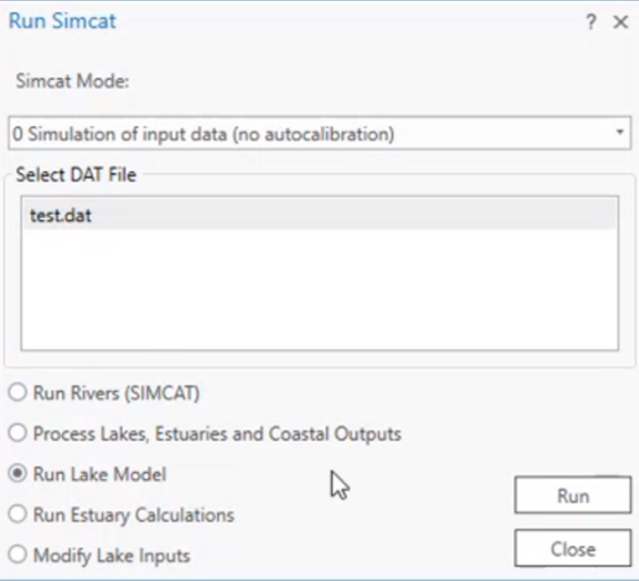

Running SIMCAT

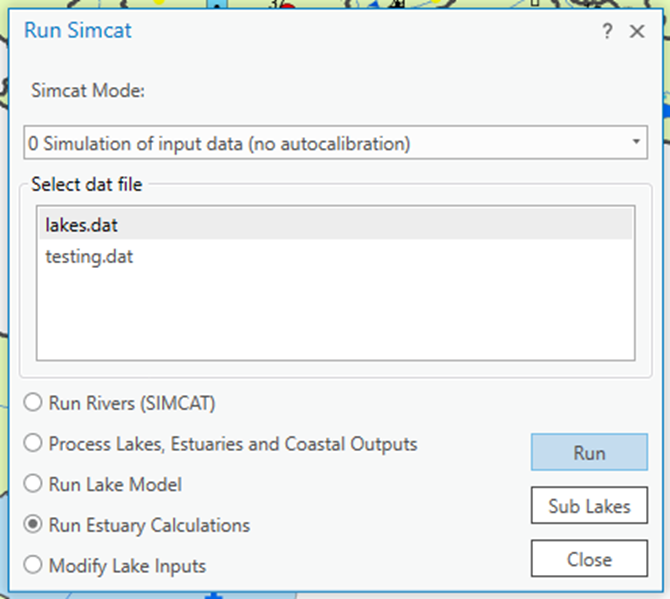

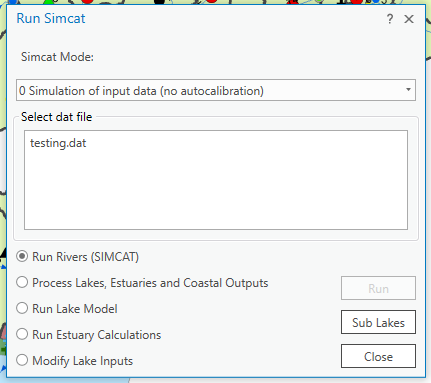

SIMCAT can be run directly from the GIS interface (Box 18) or using the stand alone SIMCAT interface (operation of this interface is described separately in the SIMCAT manual).

18	*Running SIMCAT from the GIS Interface*
1	Click on the SIMCAT icon then Run SIMCAT (Figure 12) to open the Run SIMCAT form (Figure 32).
2	Select the dat file.
3	Click on the dropdown box to select the SIMCAT run option (Mode 0 to 11; the default option 0 should be applied) then tick the box Run Rivers (SIMCAT) before clicking on Run.
4	When SIMCAT runs the black SIMCAT screen appears and the run proceeds feature by feature.

Figure 32 Run SIMCAT form

Visualisation of SIMCAT outputs

A range of visualisation options are available to present the results of the SIMCAT simulation which are presented below.

Plotting outputs

To map model outputs from SIMCAT:

19	*Plot Outputs*
1	Click on the Plot Outputs button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) then Plot Rivers to open the Plot River Outputs form (Figure 33).
2	Select the chemical substance of interest using the dropdown box. Output for all determinands can be generated in one operation by selecting All Chemicals.**
3	Select the location of the outputs points: all output locations (All), monitoring locations (Monitoring Stations - water quality and flow monitoring), or at water body boundaries (WB Boundary) as specified on the form. A special output format to prepare the inputs for MPER can also be selected which is described in Chapter 13.
4	For metals, select which partitioned fraction to plot, Total, Particulate or Dissolved using the option buttons in the Partitioned Outputs box. For other non-partitioned substances, the default of Total is applied.
5	Click on the Create Map button.
6	To change to mapped symbology adjust the options on the form and select Change Symbology.**

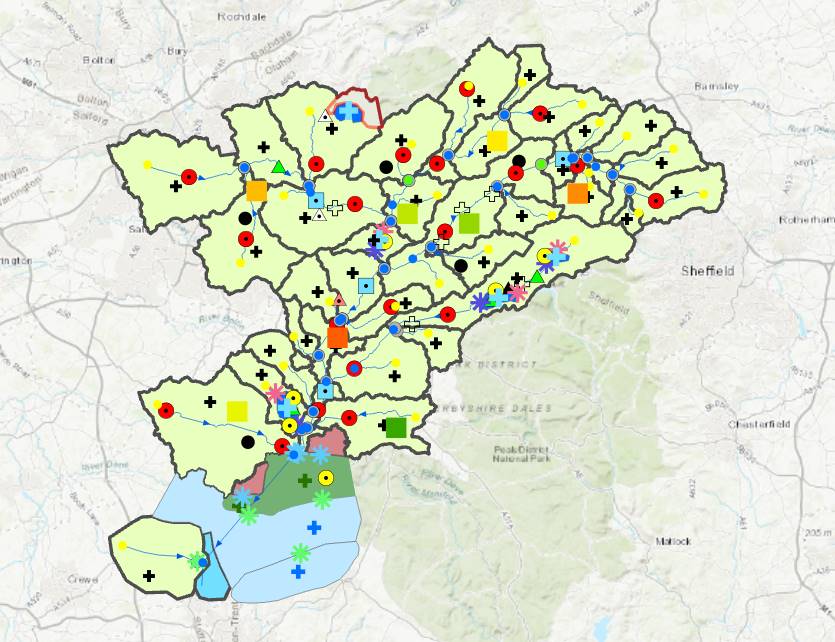

An example of mapped output for rivers is shown below (Figure 34).

Once the map has been created, further options are available for viewing the data as specified in the Symbology Options part of the form. Further information on these options is presented below:

Concentration, Load or River Flow – changes the model output metric to be plotted.
Comp Prob – Plots the probability of compliance with the target or standard.
T Test 1 and T Test 2 – shows whether there is a significant difference (Bad) or no difference (Good) between the observed and simulated data using a stringent (simulated mean within 95% confidence limits of the observed data) and less stringent (overlap between the 95% confidence limits of the simulated and observed data) T Test.
Probability of WFD Class – plots the probability that the output data is with the selected WFD class.
Simulated, Observed or Difference – to select a plot of observed data, simulated model output or the difference between the simulated and observed (ratio simulated/observed).
Mean, 90^th percentile, 95^th percentile or 99^th percentile – changes the model output metric to be plotted.
Cal Score – plots scores between 1 (lowest) and 25 (highest) for monitoring points. Scores reflect the closeness of fit between observed and simulated values. This score is calculated as follows based on the differences between the observed data and model outputs. The scores are the product of the ratio between the simulated and observed means and the degree of overlap between the confidence limits. Table 1 shows the derivation of the scores.

Ratio between simulated and observed mean	Sim mean outside confidence limits of observed mean but overlap of confidence limits on same side of the observed mean	Sim mean outside confidence limits of observed mean but overlap of confidence limits on opposite side to the observed mean	Sim mean within confidence limits of observed mean but one or both Sim confidence limits outside observed confidence limits	Sim mean within confidence limits of observed mean and Sim confidence limits within observed confidence limits on the same side as observed mean	Sim mean within confidence limits of observed mean and Sim confidence limits within observed confidence limits either side of observed mean
\< 0.33 or >3	2	3	3.5	4	5
0.33 to 0.5 or 2 to 3	4	6	7	8	10
0.5 to 0.66 or 1.5 to 2	6	9	10.5	12	15
0.66 to 0.8 or 1.25 to 1.5	8	12	14	16	20
>0.8 and \<1.25	10	15	17.5	20	25

Table 1 Scores and the ratio between the simulated and observed means and the degree of overlap between the confidence limits

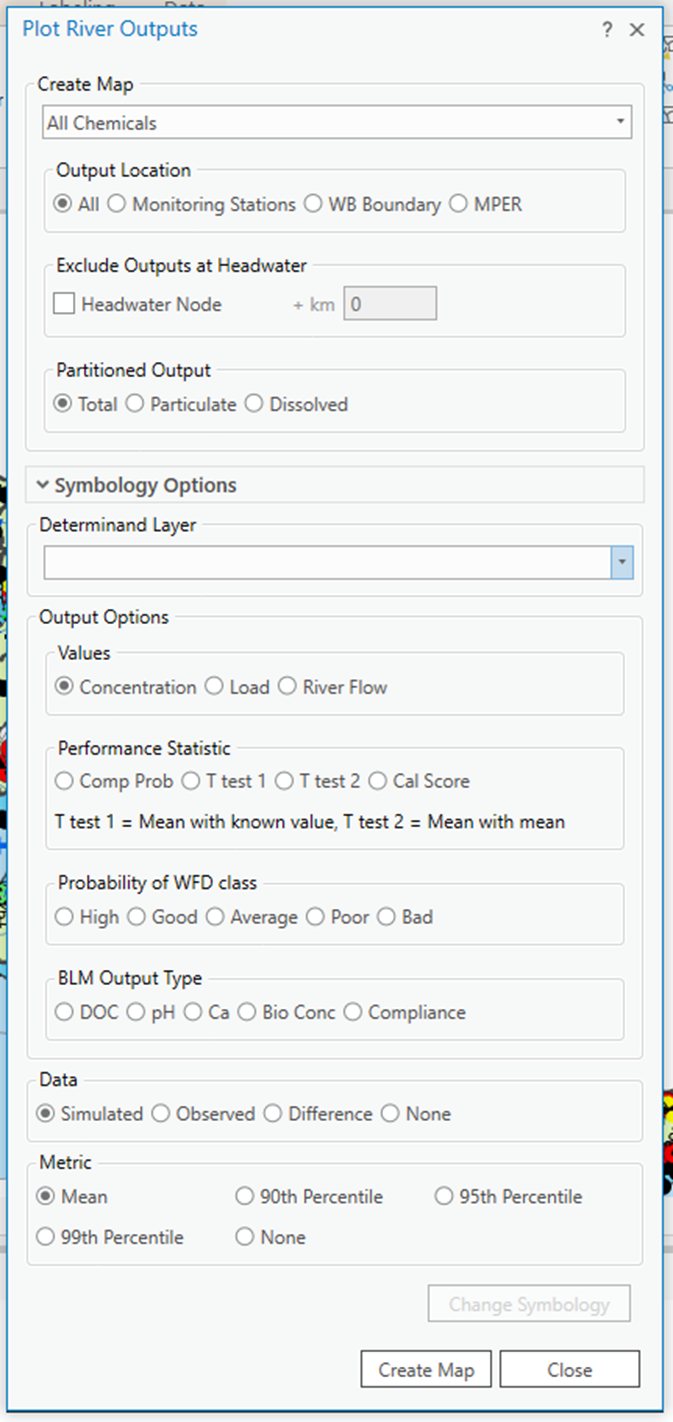

Figure 33 Plot River Outputs form

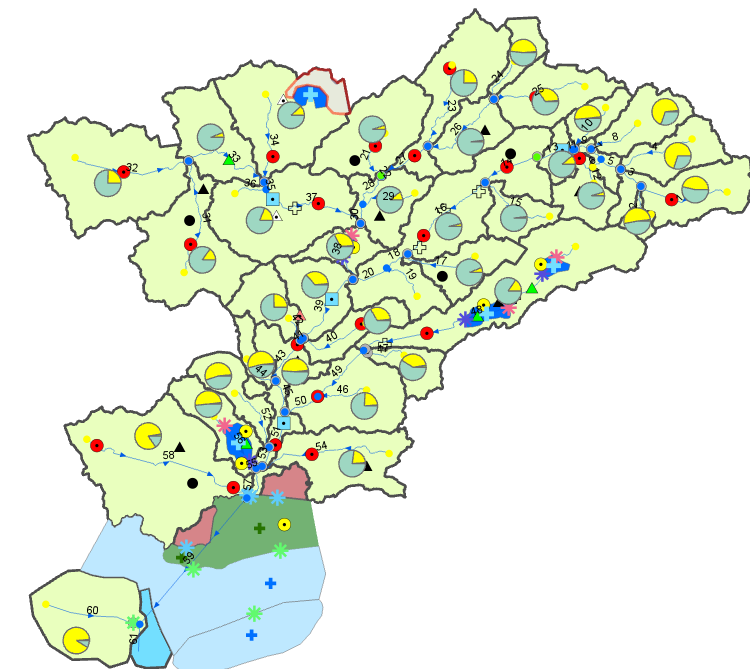

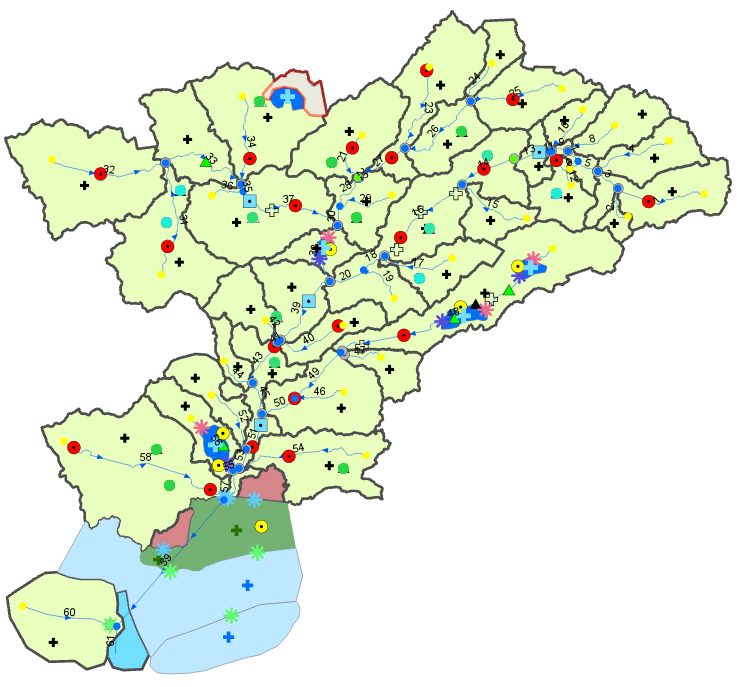

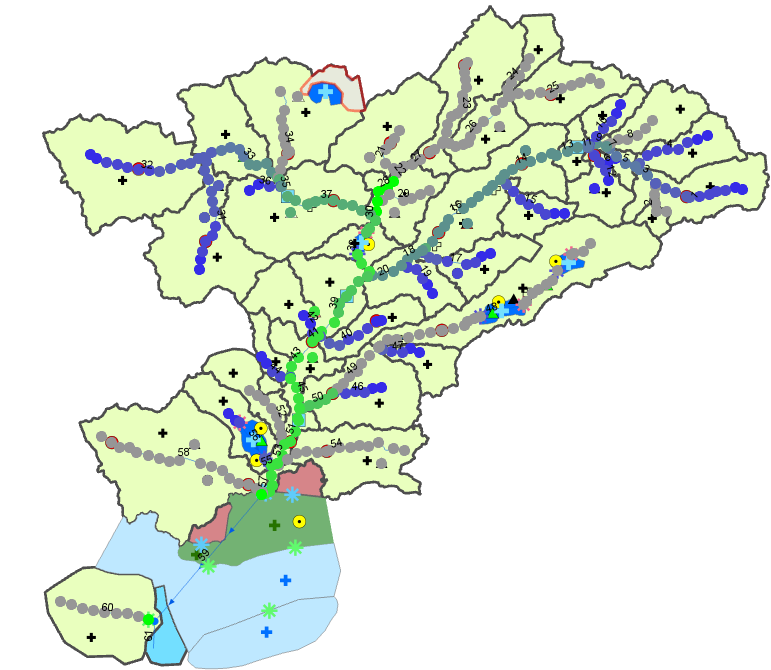

Figure 34 Example output generated by Plot Outputs tools

Once created, the symbology can also be edited using the standard ArcGIS interface (i.e. right click on the layer then click on Properties then Symbology).

The Lake Maps and BLM and MPER plots are described later in Chapter 11 (Lakes Model) and Chapter 13 (Bioavailability Model and MPER), respectively.

Mapping RQP

SIMCAT has been modified to carry out RQP type calculations at all wastewater discharges. This involves applying mass balance calculations to estimate downstream concentrations based on fixing the upstream concentrations to 50% of the Environmental Quality Standard or Target. The outputs of these calculations are contained in the *.EFF output file from SIMCAT (after it is run in Mode 11).

To read in the RQP output follow the steps described in the grey box.

20	*Mapping RQP Outputs*
1	Click on the Plot Outputs button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) then RQP to open the Plot RQP form (Figure 35).
2	Select Target, Nat Breaks or TargetBack.
3	Click on the RQP button. The RQP outputs are mapped for all selected chemical substances (e.g. Figure 36).

Figure 35 Plot RQP form

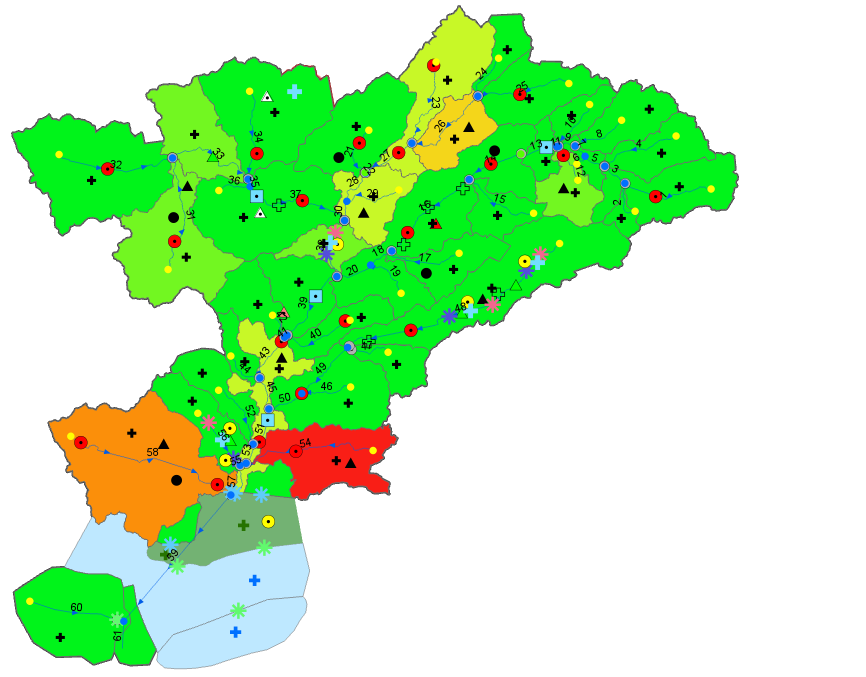

Figure 36 Example of RQP output

Many other outputs are contained in the mapped RQP layer which can be used to create other symbologies using the standard ArcGIS interface.

Mapping Input Data

The source data in the Land National Database 1 km grid (Chapter 3) can be plotted as follows:

21	*Mapping Input Load Grid*
1	Click on the Display Grid button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) to open the National loads per sq. km form (Figure 37). This requires the National Land database to be specified in the SAGIS Options form (see Chapter 2)
2	Using the top dropdown box, select the chemical substance of interest.
3	Using the lower dropdown box, select the table of interest (e.g. ArableFarming_CONC) and click on Apply Symbology which then creates the gridded map (e.g. Figure 38).

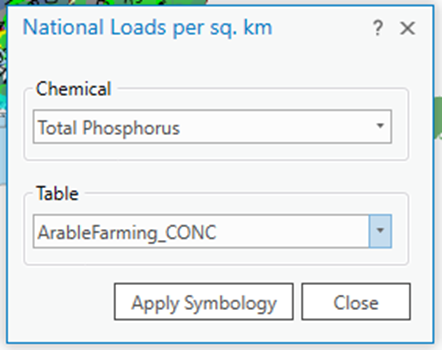

Figure 37 National loads per sq. km form

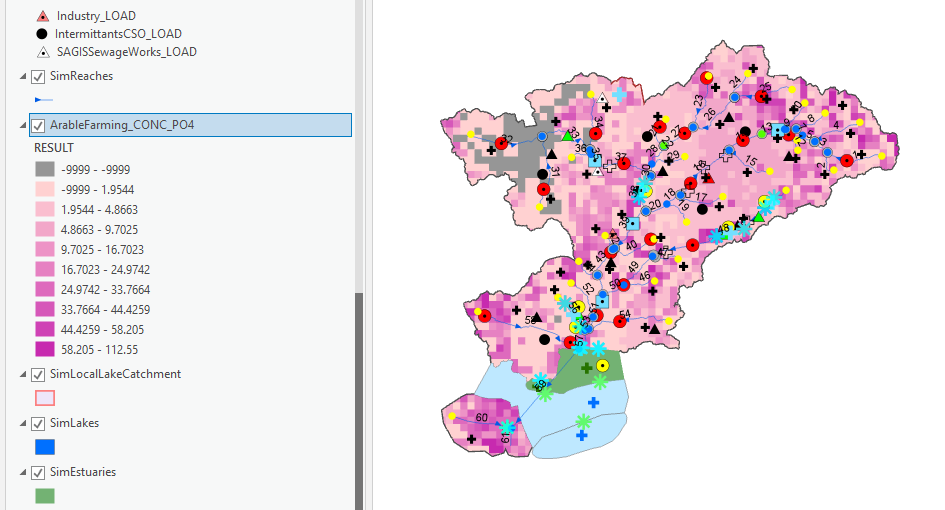

Figure 38 Example output generated by Plot Outputs tools

22	Mapping Input Waterbody Loads
1	Click on the Display WBs* button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) to open the Regional loads per Waterbody form (Figure 39).*
2	Using the top dropdown box, select the chemical substance of interest.
3	Using the lower dropdown box, select the table of interest (e.g. ArableFarming_CONC) and click on Apply Symbology* which then creates the gridded map (e.g. Figure 40).*
4	If the Total Load* option is selected, the total loads to the waterbodies are displayed and if the Load per km² is selected the loads per km² are displayed.*

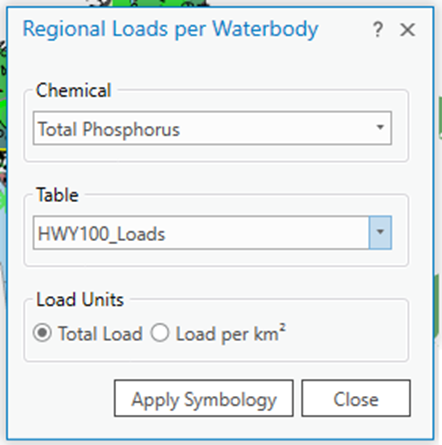

Figure 39 Regional loads per Waterbody form

Figure 40 Example waterbody export load plot

Create Output Tables

Before the charts described in the following sections can be generated, the SIMCAT output files need to be processed by clicking on the Create Output Tables button. Three sets of output tables are created in the Regional Database:

Sewage works tables – at each waterbody outlet, the contributed loads from each upstream point source to the combined points source load are listed (table name = dat file name + ContributingSTWs).
Sector tables – output tables with the sector input and output loads and output concentrations at each waterbody boundary (input load table name = dat file name + ContributingInputs, output load table name = dat file name + ContributingOutputLoads and output concentration table name = dat file name + ContributingOutputs).
Upstream diffuse contribution tables – these tables show the contributing loads of all upstream marked catchment areas (e.g. waterbodies) and are created for each selected chemical substance and sector (table name = dat file name + Contributing + sector name; e.g. RiverDeeContributingArable).

23	*Create Output Tables*
1	Click on the Create Output Tables button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) to open the Create Output Tables form (Figure 41).**
2	The tick boxes specify which feature types to include in the table; STW, Outputs, Diffuse Sectors and Inputs.
3	Selecting a Waterbody Calibration Table from the dropdown will apply the calibration factors when creating the sector input tables.
4	Select the Fraction to be rendered; Total, Dissolved or Solid. This should typically be Total other than where the dissolved phase concentration is typically of interest (e.g. metals with bioavailability-based standards).
5	Select Run.

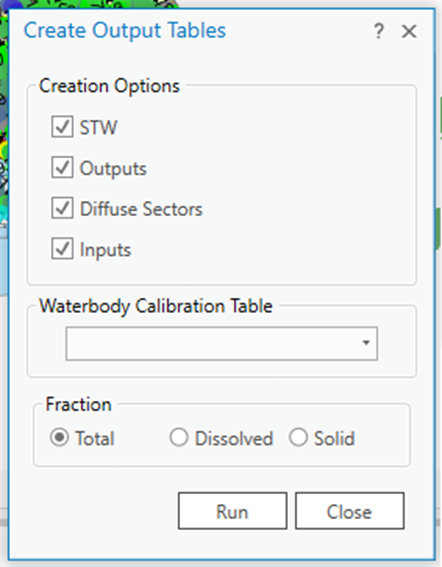

Figure 41 Create Output Tables form

Sector pie charts

To generate pie charts:

24	Create Sector Pie Charts
1	Click on the Plot Sector Charts* button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) which opens the Plot Sector Charts form (Figure 42).*
2	Click on the dropdown box to select the chemical substance of interest. Output for all determinands can be generated in one operation by selecting All Chemicals.
4	Click to select plot options within the Advanced* River Options section of the form (Lakes, Estuaries and Coastal Margins are covered later in the manual).*
5	Click on Run* to create the pie charts.*

Further information on the Advanced River Options on the form are described below:

In-stream Conc – Sector apportionment chart for simulated concentrations at the waterbody outlet.
In-stream Load – Sector apportionment chart for simulated loads at the waterbody outlet
Input Load – Sector chart of the input load to each waterbody (this is adjusted by the calibration factors if this option was selected during the Create Output Tables stage).
Input Cumulative Load – Input load from all waterbodies upstream (including the load to the waterbody).

Figure 43 shows an example pie chart plot.

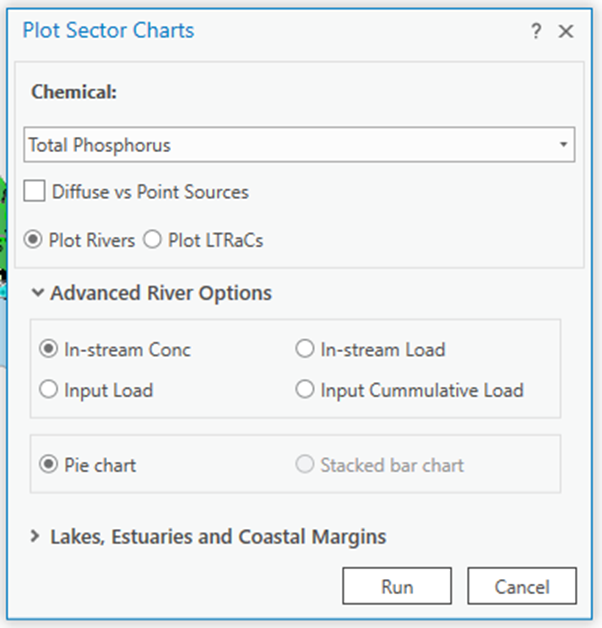

Figure 42 Plot Sector Charts form

Figure 43 Example of source apportionment pie chart plot

If no sector information is available for a chemical (e.g. BOD), the pie charts show the relative contribution of diffuse and point sources. This output can be selected for chemicals with sector information by ticking the Diffuse vs Point Sources tick box.

Upstream contribution charts

Before these charts can be generated, the output tables must be created using Create Output Tables (Section 9.4.4). In the case of diffuse sources, Sector Tracking must be enabled on the Create SIMCAT File form and areas to track must be created (Section 9.3) before running SIMCAT to first create the tracking information in the SIMCAT output files. To create upstream contribution charts:

25	*Create Upstream Contribution Charts*
1	Click on the Upstream Contribution Charts button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) and then on either the Sector Charts or Point Source Charts option which opens the associated Upstream Contribution Charts form (for Sector Charts: Figure 44 and for Point Source Charts: Figure 45).
2	Select the Waterbody of interest from the dropdown list.
3	Select the chemical of interest using the Determinand dropdown box.
4	Specify the Point Source Options or diffuse Sector Options.
5	Click on Run to create the chart.

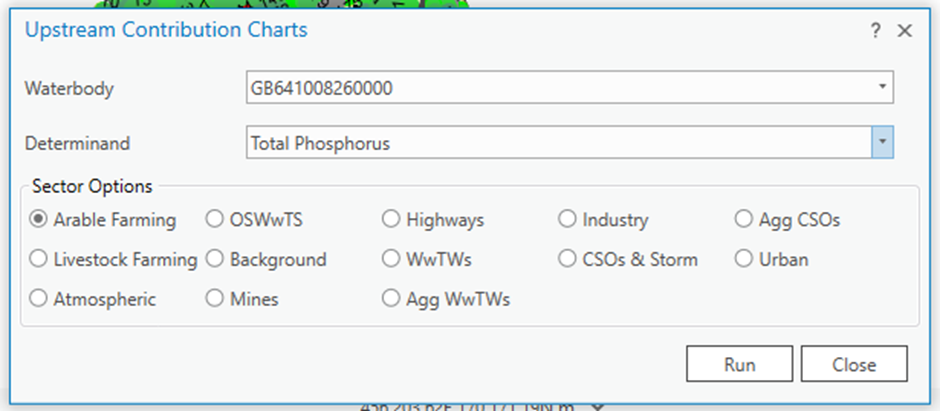

Figure 44 Upstream Contribution form for Sector Charts

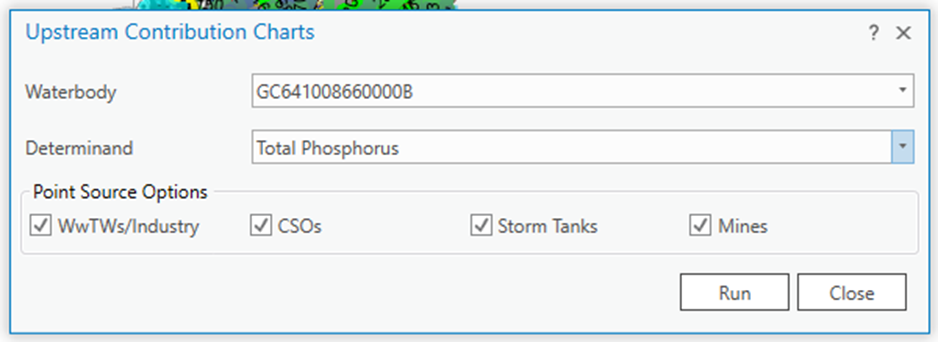

Figure 45 Upstream Contribution form for Point Source Charts

If point contributions are selected, bars will appear on the map showing the relative contribution of upstream point sources. If diffuse contributions are selected a coloured map is produced showing the relative loads from upstream catchments.

Mapped water body output charts

The Map Output tools takes the mapped point outputs generated by the Plot Output tools, and maps these onto the water body layer to show compliance and source apportionment at the waterbody spatial scale. To generate these outputs:

26	Create Mapped Outputs Charts
1	Click on the Map Output* button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) which opens the Map Output form (Figure 46).*
2	Select Determinand Layer* and Sector of interest from the drop down lists.*
3	Select a Model Output Location* and an Output Option.*
5	Select the statistic to map from the Mapped Statistic* box.*
6	Click on Apply* to create the chart.*

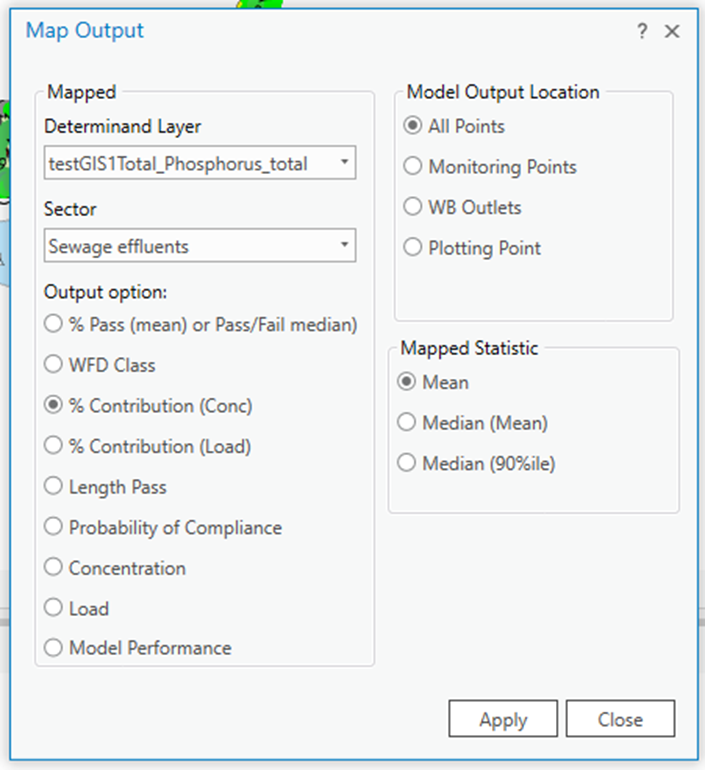

Figure 46 Map Output form

Further information on the mapping options is shown below:

All Points – all model outputs used to generate the waterbody statistics.
Monitoring Points – only model output at the monitoring points used to generate the waterbody statistics.
WB Outlets – only model output as the waterbody boundary used to generate the waterbody statistics.
Plotting Point – only model output at plotting points used to generate the waterbody statistics
Mean – mean of the mean concentration for the selected points.
Median (Mean) – median value of the mean concentration for the selected points.
Median (90%ile) – median value of the 90%ile concentration for the selected points.
% Pass (mean) or Pass/Fail (median) – the percentage of selected points that are compliant compared to the standard or whether the median value passes or fails if the median statistic has been specified.
WFD Class – WFD class of the selected points (only applies to chemicals with WFD classes) related to the average or median concentration.
% Contribution (Conc) – the percentage contribution of the sector selected using the dropdown box to the total concentration.
% Contribution (Load) – the percentage contribution of the sector selected using the dropdown box to the total load.
Probability of Compliance – average or median probability of compliance.
Concentration – average or median concentration.
Load – average or median load.
Model performance – average or median deviation between observed data and model output.

An example mapped output is shown in Figure 47.

Figure 47 Example mapped output plot (% Contribution (Conc))

River chainage plots (Excel)

A chainage plot is a plot of model results and observed data along a continuous length of river between a start point and an end point. To create a chainage plot:

27	*Create Chainage Plot*
1	Select the Excel Graphs icon (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) then River Chainage which opens the Plot River Chainage Graphs form (Figure 48).
2	Select the chemical of interest using the Determinand dropdown box.
3	Select the upstream reach as the Start Reach and the furthest downstream reach as the End Reach from the dropdown lists or Select on map.
4	Select the Fraction; Total, Dissolved or Solid. This should typically be Total other than where the dissolved phase concentration is typically of interest (e.g. metals with bioavailability-based standards).
5	Click Run. Following this a spreadsheet will appear automatically in the dat file folder.
6	Open the spreadsheet, then click on the Initialise Data button (in the Import_Controls tab; Figure 49) and Simulated and Observed Concentration chainage plots (e.g. Figure 50) will appear. The chainage plots can be modified by changing the settings (described below) on the worksheet.
7	Sector Chainage* and Probability of Compliance plots (e.g. Figure 51) can be viewed by selecting the See Load and Compliance Charts* button. The chainage plots can be modified by changing the settings on the worksheet.

The settings that can be adjusted to modify chainage plots are described below (and are also detailed in the Excel spreadsheet):

Upstream Reach – upstream reach in chain.
Downstream Reach – downstream reach in chain.
Targets – displays the water quality targets on the plot (for WFD chemicals the High, Good, Moderate, Poor boundaries are shown).
Observed Data – displays the observed data on the plot.
Fixed Y Axis – Manual control on Y axis (id blank applies default).
Observed Confidence Limits – displays observed confidence limits.
Show Lake Data – shows lake data (if exists).
Reach markers – displays reach markers.
Mean, 90 Percentile, 95 Percentile, 99 Percentile – select the output statistic to plot.
Conc or Load – specifies if concentrations or loads are shown.

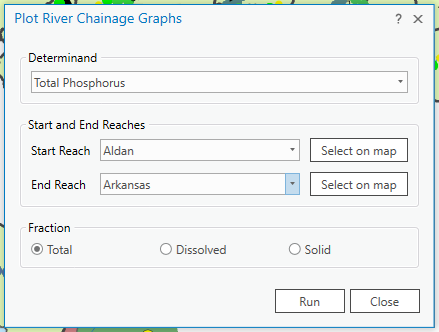

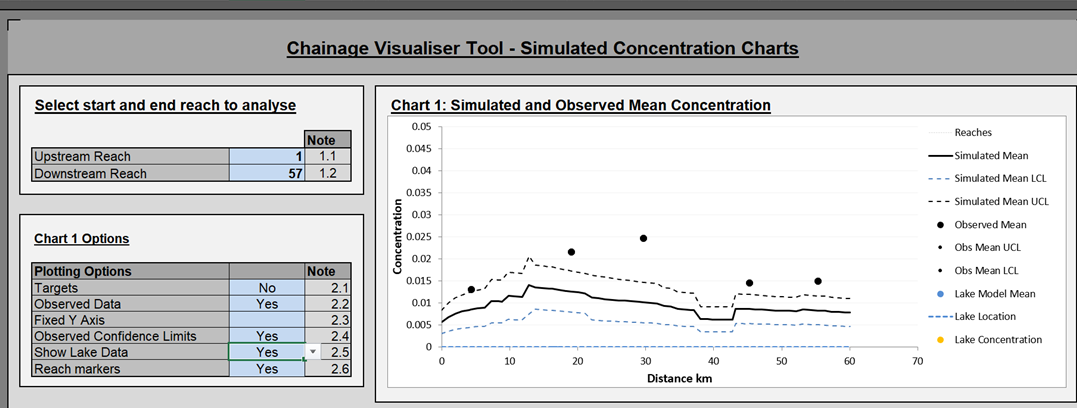

Figure 48 Plot River Chainage Graphs form

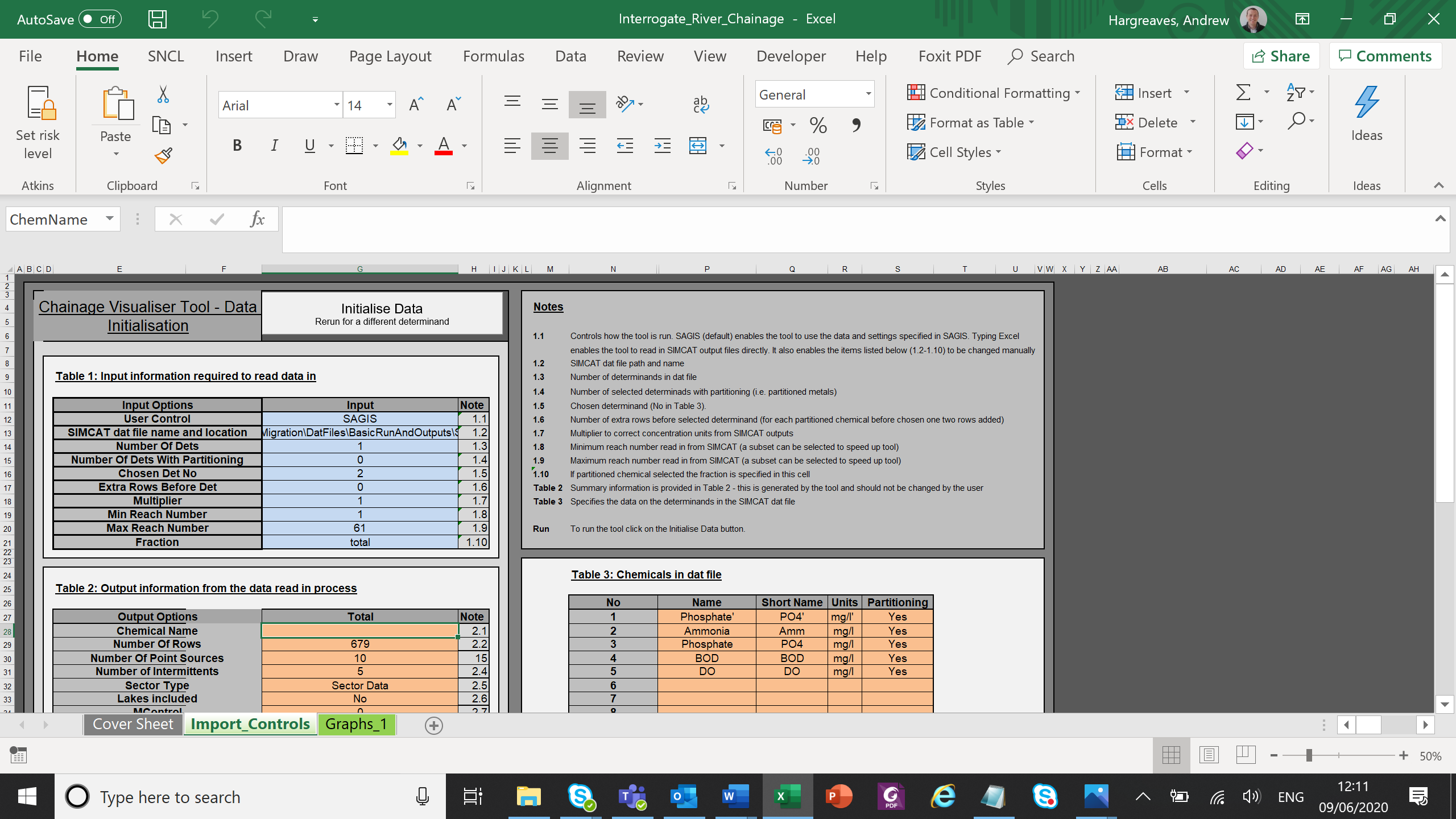

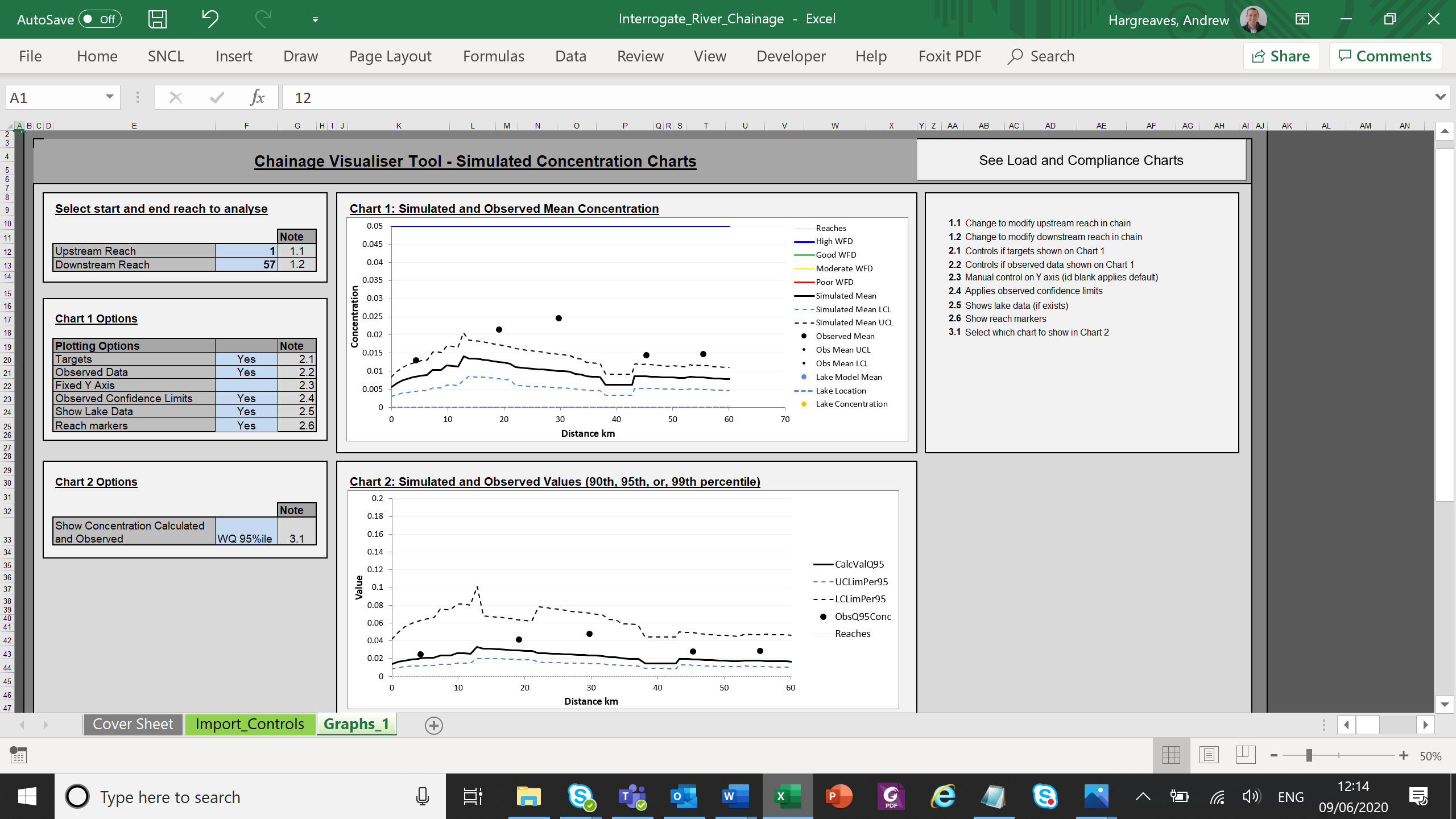

Figure 49 Chainage plots via Excel

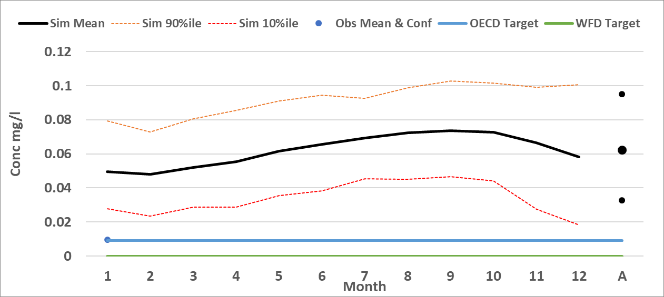

Figure 50 Example Simulated and Observed Concentration chainage plots

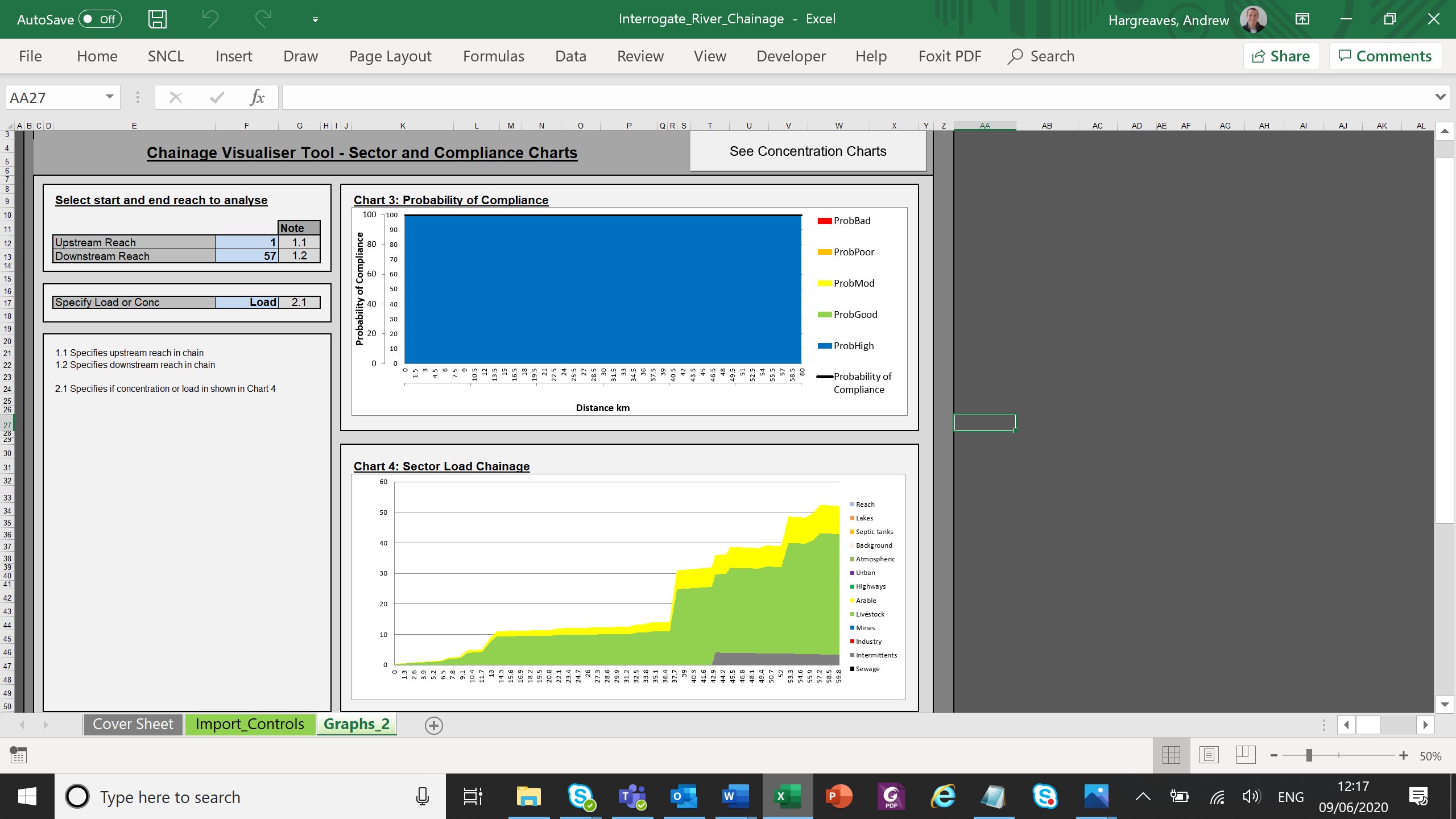

Figure 51 Example Sector Chainage and Probability of Compliance plots

Calibration Adjustments and Calibration Tables

SIMCAT model calibration in SAGIS is based on making adjustments to diffuse inflows and to sector input loads. These can be applied by modifying the source data (i.e. Land National databases and flow data tables) or adjustment factors in the SimWaterbodies attributes table (Waterbody Settings). The preferred approach in SAGIS is, however, to create Flow and Water Quality Calibration tables that are applied during creation of the SIMCAT dat file (see Chapter 7). This allows calibration to be consistently applied independently of other changes that might be made to the source data (e.g. related to land use change or climate change). Other manual adjustments are combined with the adjustments in the calibration tables.

The format of the calibration table is shown in Chapter 17. In the Flow Calibration table, adjustment factors are defined for the Mean and Q95 flow for both Reach and Node (Headwater) inputs. In the Water Quality Calibration table, adjustment factors are defined for all input sectors. The coefficient of variation associated with each sector can also be set.

Calibration adjustments can be applied at either the reach or waterbody scale. Adjustments are applied as follows:

The Unique_ref specified in the calibration table is applied to the corresponding UniqueRef_ID in the SimReaches layer (i.e. for reach specific diffuse flows and input loads). It is recommended that a Unique_ref value should always present.
The adjustment to the reach diffuse inflow is also applied to the corresponding headwater node, but a further adjustment to the headwater node is applied if the adjustment factor for the node is not 1.
Note that if new reaches are created no calibration adjustment will be applied to them. The adjustment factor needs to be added to the table or the calibration repeated.

Once the calibration factors have been created these can be mapped using the Create SIMCAT File form:

28	*Mapping Calibration Adjustment Factors*
1	Open the Create SIMCAT File form (Figure 52) by clicking on SIMCAT then Create SIMCAT File (Figure 12).
2	Select the Flow and Water Quality Calibration tables using the dropdown boxes in the Apply Calibration part of the form.
3	Select the metric to map using the left-hand side dropdown box in the Calibration Visualisation part of the form.
4	Select the sector to map using the right-hand side dropdown box in the Calibration Visualisation part of the form.
5	Click on Apply Symbology to create a map of the adjustment factors.

Figure 52 Create SIMCAT File form

Import Calibration Data

To import the table listing the reach and determinand specific adjustments.

29	*Import Calibration Data*
1	Click on the SIMCAT icon then Import Calibration Data (Figure 12) to open the form shown in Figure 53.
2	Select the location of the Input Excel File using the ArcGIS Pro dialogue box.
3	Select a location for the Output Table using the ArcGIS Pro dialogue box.
4	Insert the name of the Sheet in the Input Excel File that you want data to be extracted from.
5	Select the Run button. The Output Table is placed in the specified file geodatabase.**

Figure 53 Import Calibration Data

Running the SAGIS Lake Model and Viewing Outputs

SAGIS Lake Model

The SAGIS lakes model supports two types of model run:

The Fast mode model run is based on a fixed 30 years simulation with simplified parameter values. The input sectors are modelled in two groups, a) strongly driven by rainfall such as agricultural phosphorus and b) relatively constant, for example sewage works inputs. The sector concentrations associated with each group are pooled and modelled together within the lake then the lumped concentrations are split between the sectors, based on the relative size of their inputs. Chemical losses within the lake are modelled by a single parameter. No hydrological sequencing is applied in contrast to the second method. Monte Carlo iterations are not applied.
The Detailed mode model run is based on a Monte Carlo simulation for a specified number of shots (N_Shots). Concentrations and loads associated with each sector are simulated separately. For each shot, different parameter values are sampled between the upper and low bound and N_Shots annual simulations are carried out. The model run is repeated for a user specified number of years until a steady state is reached which can be assessed by plotting the time series model output. During the annual simulation, monthly sequences of random numbers are applied based on observed variations in river flow to simulate the effect of sequences of low (drought) and high (wet) flow periods on the concentrations. If a lake volume npd is specified the starting volume in each month’s simulation is chosen at random from the non-parametric distribution of lake volumes.

The chosen approach depends on the purpose of the model run. For example, to represent the influence of lakes on river water quality the Fast mode model would be used but for a detailed study on a particular lake, the Detailed mode model would be more appropriate.

Running the lake model

SIMCAT

Before running the SAGIS lake model, the SIMCAT dat file must be set up and run using the Create SIMCAT File form as shown below (Figure 54). The options in the Lakes and TraCs – Calculate section (within red box) must be ticked.

Figure 54 Create SIMCAT File form set up to create the inputs for Lakes

Setting up lake input tables

Before running the lake model two tables need to be created in the Regional Database which record the flow and water quality inputs to the lake to provide the input data to the SAGIS lake model; annual inputs (table name = dat file name + LakeInputs) and monthly inputs (table name = dat file name + LakeInputsMonthly). Corresponding tables are also created of the coefficient of variation (COV) and correlation coefficient (COR) for the inputs.

To create the lake input tables:

30	*Creating SAGIS Lake Model Input Tables*
1	Click on the SIMCAT icon then Run SIMCAT (Figure 12) to open the Run SIMCAT form (Figure 55).
2	Tick Process Lakes, Estuaries and Coastal Outputs then click Run.**

Running the SAGIS lake model

To run the SAGIS lake model:

31	*Running the SAGIS Lake Model*
1	Click on the SIMCAT icon then Run SIMCAT (Figure 12) to open the Run SIMCAT form (Figure 62).
2	Tick Run Lake Model then click Run.**
3	This opens the Lake Model form. Modify the settings on the form, as required, then click the Run button to set the lake model running.

Figure 55 Run SIMCAT form (for Lakes)

Figure 56 Lake Model form

Further information on the settings on the Lake Model form is provided below:

Number of Shots – sets the number of shots when running the lake model.
Determinands – sets the determinands to be Included and Excluded. Changes to which column a determinand features can be made using the >> and \<\< buttons.

When the model runs, it creates two output files in the Regional Database:

Summary results table (table name = dat file name + SIM).
Time series results (table name = date file name + SIMTS), only for the Detailed mode.

If only part of the regional model area has been run in SAGIS using the sub-area functionality (Section 9.2), only lakes included within the sub-area will be simulated when SIMCAT is run.

Incorporating model outputs into SIMCAT

Once the lake simulation has been carried out SIMCAT will take outflows from the lake generated by the Lake Model simulation to feed into SIMCAT downstream of each lake. SAGIS looks for files created by the lake model and if these are found they are used to modify the dat file to include output flows and concentrations from the lakes. This can be disabled by clicking on the Run Without Lakes tick box on the Create SIMCAT File form.

If more than one lake is present in the river chain, it is necessary to run SIMCAT again to take the outputs of the upstream lakes downstream then running the lake model again to simulate the effects of these changed inputs. This process may need to be repeated several times if there are several lakes in a chain.

Viewing the Lake Model outputs

A range of options are available to view the outputs from the SAGIS Lakes model.

Plot outputs

To create the lake plot outputs:

32	*Plot Lake Model Outputs*
1	Click on the Plot Outputs button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) then Plot Lakes to open the Plot Lake Outputs form (Figure 57).
2	Select the Lake Centroids or Sample Points option and check the Trophic Summary box as required.
3	Select Create Map.
4	Navigate to and click on a lake centroid or sample point on the map. A pop-up screen will appear (Figure 58).

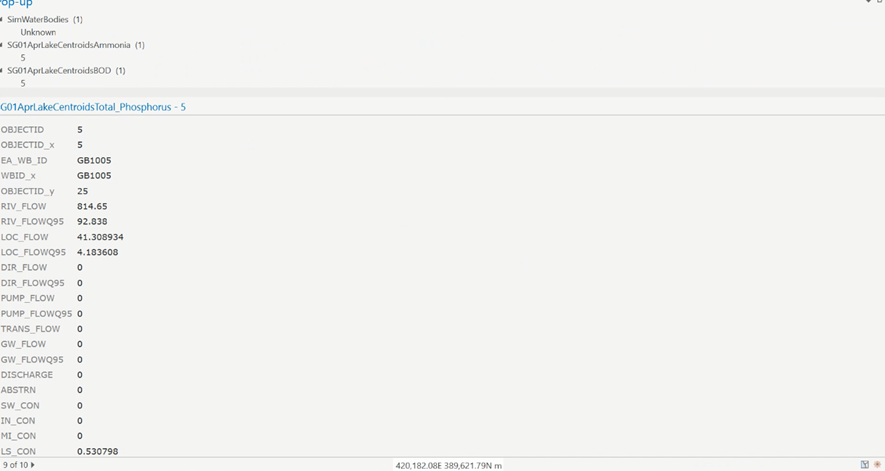

5	The pop-up screen has a top and bottom section. In the top section, scroll down until the Trophic Summary option appears.
6	In this section choose the lake that you wish to view trophic summary data for. An image similar to that given in Figure 59 will appear.

Figure 57 Plot Lake Outputs form

Figure 58 Lake outputs plotting pop-up

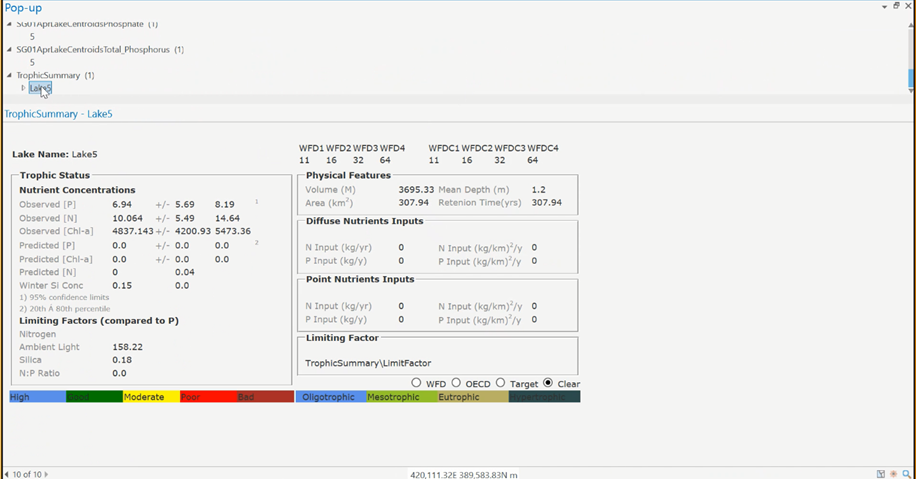

Figure 59 Trophic Summary

The trophic status analysis is based on using SAGIS to estimate:

R – Total inflow to the lake (m³/year)
J – Total input load of total phosphorus to the lake (mg/yr)
T_w - Retention time (yrs)

This information is then used to calculate a predicted in-lake total P concentration using OECD lake classification equations.

For lakes with a mean depth of >= 3 m, (a, b) = (1.55, 0.82). For shallow lakes with a mean depth \< 3 m, (a, b) = (1.02, 0.88). Similarly, Chlorophyll-a and Nitrate are calculated using further OECD equations.

Where a = 0.38 and b = 0.86

Where JN = Nitrogen Load, a = 5.34 and b = 0.78

Confidence limits are based on confidence limits in the OECD analysis. In addition, further calculations are carried out to assess whether Phosphorus, Nitrogen, Silica or ambient light is limiting for phytoplankton growth based on the methodology described by Reynolds & Maberly 2002[^2].

Further information on the key values reported in the Trophic Summary are provided below:

Mean Depth (m) – Mean lake depth.
Retention Time (yrs) – Lake retention time.
Predicted [P], [Chl-a] and [N] – Predicted annual mean total phosphorus, Chlorophyll-a and total inorganic nitrogen concentrations based on OECD equations.
Observed [P], [N] and [Chl-a] – Observed annual mean total phosphorus, Chlorophyll-a and total inorganic nitrogen concentrations based on OECD equations.
Light:P Chl-a ratio – Ratio of predicted chlorophyll-a limited by light and total phosphorus (i.e. if the ratio is below 1, phytoplankton are predicted to be limited by light rather than phosphorus).
N:P Chl-a ratio – Ratio between predicted chlorophyll-a limited by total inorganic nitrogen and P.
Si:P Chl-a ratio – Ratio between predicted chlorophyll-a limited by silica and total phosphorus.
N:P Ratio – Ratio between predicted total inorganic nitrogen and total phosphorus concentration.
Limitation – labels points to indicate if they are total inorganic nitrogen, silica, total phosphorus or light limited.

Selecting the buttons (WFD, OECD, Target or Clear) on the form (Figure 59) will apply the colour scheme to the rows in the table in which the values are reported (Figure 59) depending on the criteria specified:

WFD status – High (blue), Good (green), Moderate (yellow), Poor (red), Bad (brown)
OECD status – Oligotrophic (blue), Mesotrophic (green), Eutrophic (beige), Hypertrophic (grey)
Target – Pass (green), Fail (red)
Clear – no colour scheme

Plot charts

To create the lake pie charts:

33	*Create Lake Pie Charts*
1	Click on the Plot Sector Charts button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) which opens the Plot Sector Charts form (Figure 60).
2	Click on the dropdown box to select the chemical substance of interest. Output for all determinands can be generated in one operation by selecting All Chemicals.**
3	Tick the Plot LTRaCs button.
4	Select the plot options within the Lakes, Estuaries and Coastal Margins section of the form.
6	Click on Run to create the pie charts.

Further information on the settings on the Plot Sector Charts form related to lakes is provided below:

Load (input), Conc (output) or Flow (input) – selects input loads, simulated lake concentration or input flow.
Sector or Input (river, direct, pumped) – selects sector inputs or the relative magnitude of inputs from direct river inflows, local inputs (including direct discharges) and pumped inputs.

Figure 60 Plot Sector Charts form

An example map is shown in Figure 61.

Figure 61 Example lake sector pie charts

Lake Plots (Excel)

As for data visualisation for rivers it is possible to visualise data for lakes via an excel spreadsheet:

34	Create Lake Plots in Excel
1	Select the Excel Graphs* icon then Lakes which opens the Plot Lake Graphs form (Figure 62).*
2	Choose the Determinand* to report data for from the dropdown list.*
3	In the two dropdowns in the Sample Point section choose a lake (Waterbody) and Sample Point that you want data for from the dropdown lists or Select on map. These selections are mandatory with errors arising if no selection is made.
4	Select Run. Following this an Excel workbook will appear automatically in the dat file folder.
5	Open the spreadsheet, then click on the Initialise Lake Data button (in the Import_Controls tab; Figure 63). Monthly charts including Chemical Concentration plot (e.g. Figure 64), Source Apportionment plot (e.g. Figure 65), Volume plot (e.g. Figure 66) and Flow plot (e.g. Figure 67) will appear.
6	Timeseries outputs can be viewed by selecting the See Yearly Charts button (these are only for lakes run in detailed mode) and include Yearly Concentration plot (e.g. Figure 68), Sediment Concentration plot (e.g. Figure 69), Sediment Flux plot (e.g. Figure 70) and Yearly Flow plot (e.g. Figure 71).
7	There is the facility to update the charts for another Lake and Sample Point within the same model by modifying the selection within the spreadsheet (in the Import_Controls tab; Figure 63).

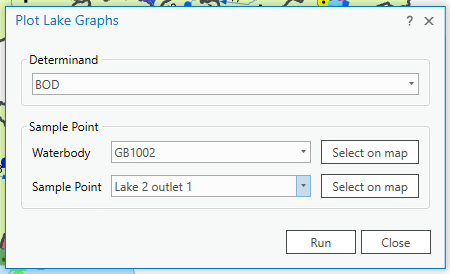

Figure 62 Plot Lake Graphs form

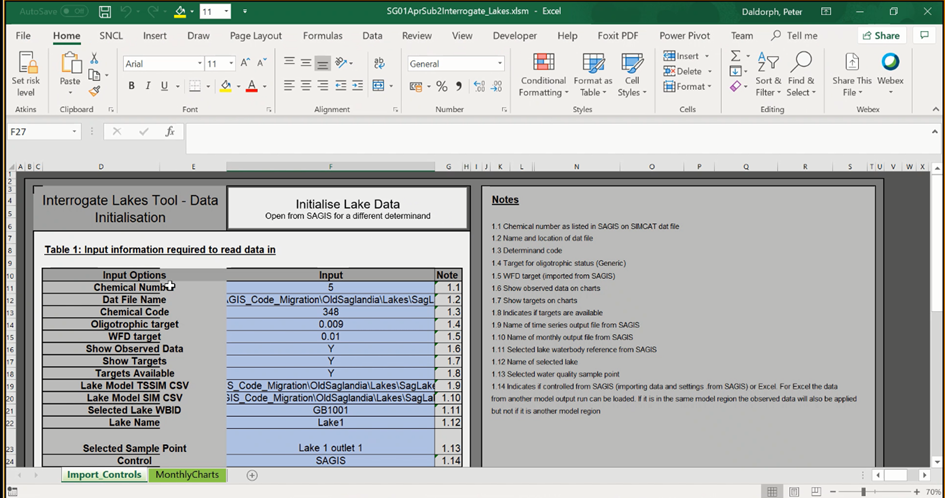

Figure 63 Lake plots via Excel

Further information on the information shown on the lake charts is provided below:

Mean, Percentile (%ile), Confidence Limits (Conf) – metric shown on chart.
Quality Target – shows the OECD Target or WFD Target on the chart.
Obs Data – shows observed data, if available, on the graph.
Sediment conc – shows the concentration in the sediment (only Detailed mode).
Sediment flux – shows the proportion of the concentration derived from the sediment input (only Detailed mode).

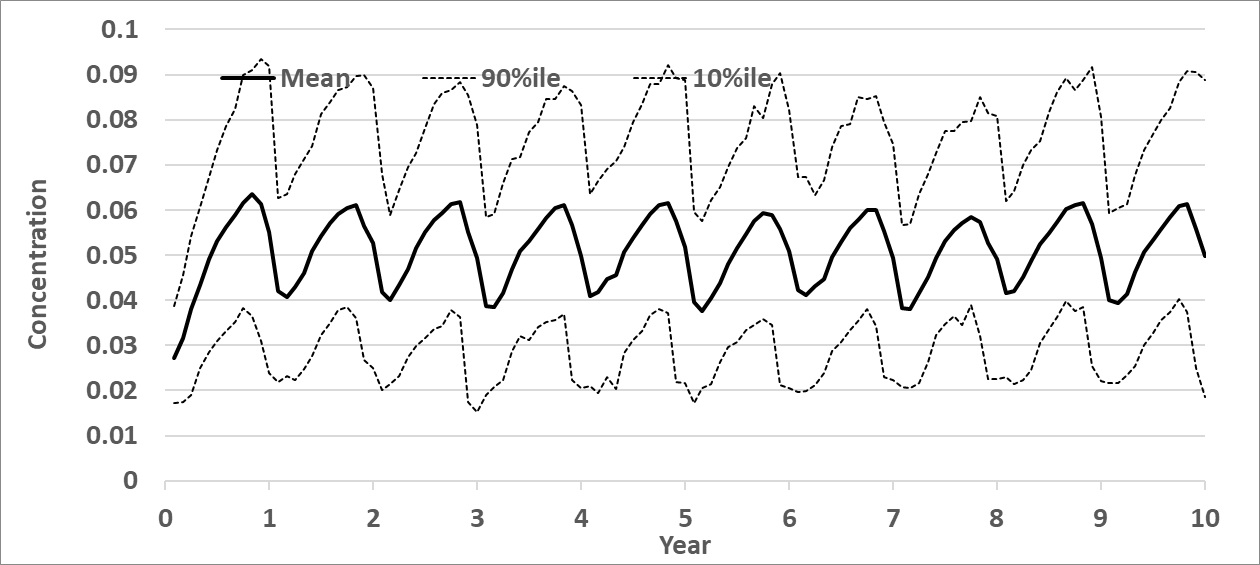

Figure 64 Example Lake Chemical Concentration chart

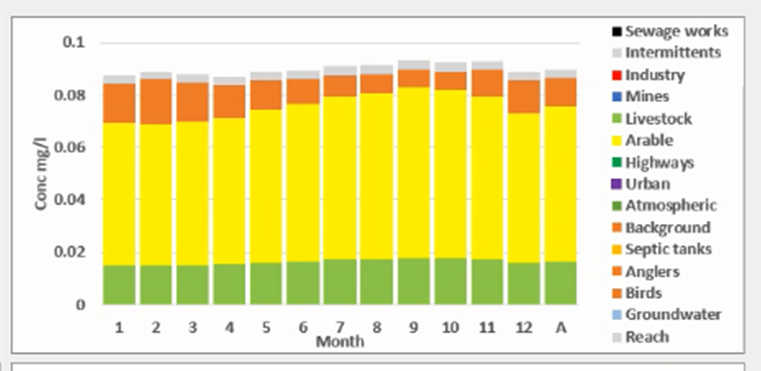

Figure 65 Example Lake Source Apportionment chart

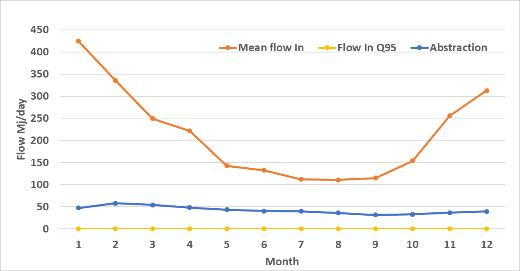

Figure 66 Example Lake Volume chart

Figure 67 Example Lake Flow chart

Figure 68 Example Lake Yearly Chemical Concentration chart

Figure 69 Example Lake Sediment Concentration chart

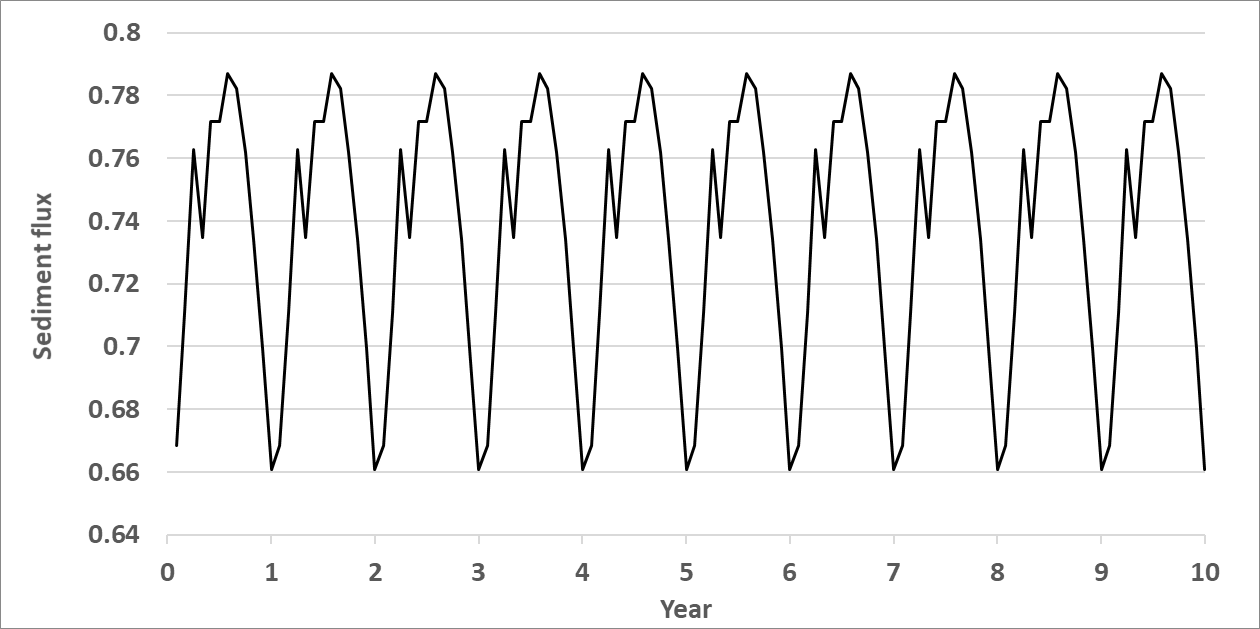

Figure 70 Example Lake Sediment Flux chart

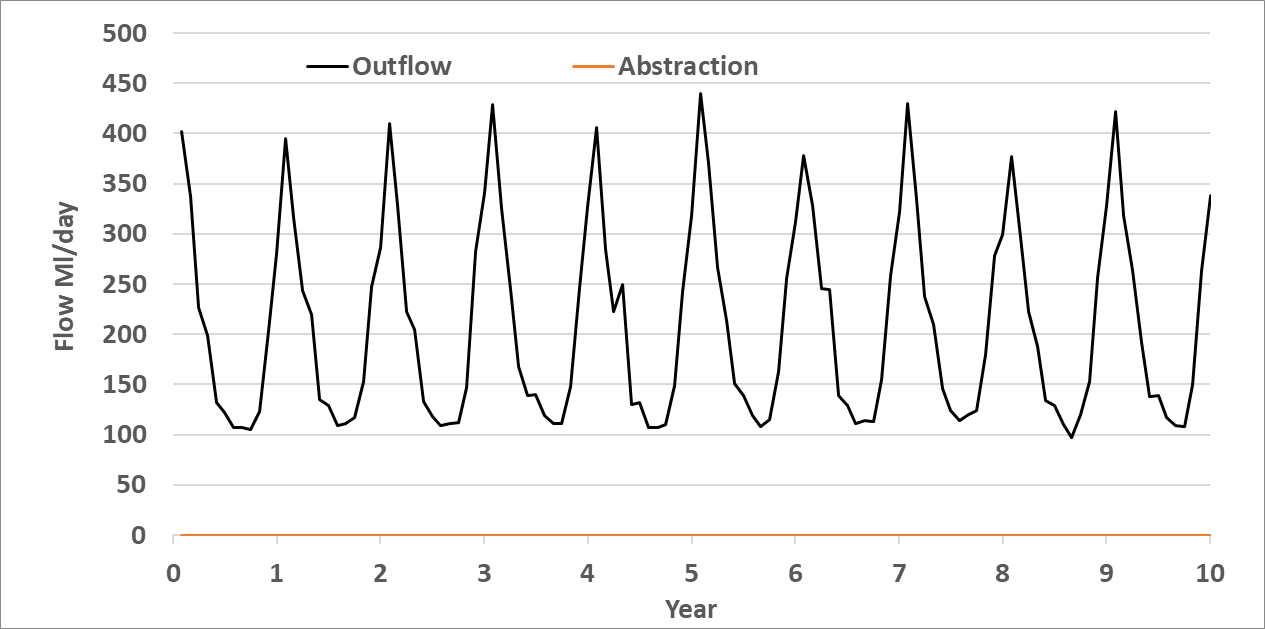

Figure 71 Example Lake Yearly Flow chart

Upstream contribution charts

Before these charts can be generated, the output tables must be created using Process Lakes, Estuaries and Coastal Outputs (Chapter 11.2.2).

To create upstream contribution charts:

35	*Create Lake Upstream Contribution Charts*
1	Click on the Upstream Contribution Charts button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) and then on either the Sector Charts or Point Source Charts option which opens the associated Upstream Contribution Charts form (for Sector Charts: Figure 44 and for Point Source Charts: Figure 45).
2	Select the Waterbody of interest from the dropdown list.
3	Select the chemical of interest using the Determinand dropdown box.
4	Specify the Point Source Options or Sector Options.
5	Click on Run to create the chart.

Incorporating lake outputs into SIMCAT

Once the SAGIS lake model has been run the outputs are automatically fed back into SIMCAT (unless this is switched off on the Create SIMCAT File form - Chapter 9.1). When chainage plots have been created in Excel (Chapter 9.4.8), the influence of the lake can be shown on the chart by selecting Yes from the drop-down for the Show Lake Data option (Figure 72).

Figure 72 Show Lake Data on chainage plot

Running the Estuary and Coastal Waters Calculations and Viewing Outputs

SIMCAT

Before carrying out the Estuary and Coastal Water calculations, the SIMCAT dat file must be set up and run using the Create SIMCAT File form as shown below (Figure 73). The Coastal Inputs and Estuary Inputs tick boxes (within red box) must be ticked.

Figure 73 Create SIMCAT File form set up to create the inputs for Estuary and Coastal Waters

Setting up estuary and coastal waters input table

Information on the chemical inputs to the estuaries and coastal waters from all sources are created in the Regional Database for inputs (table name = dat file name + EstuaryInputs) and monthly inputs (table name = dat file name + EstuaryInputsMonthly).

To create the estuary and coastal waters input tables:

36	*Creating SAGIS Estuary and Coastal Waters Model Input Tables*
1	Click on the SIMCAT icon then Run SIMCAT (Figure 12) to open the Run SIMCAT form (Figure 81).
2	Tick Process Lakes, Estuaries and Coastal Outputs then click on Run.**

Figure 74 Run SIMCAT form

Estuary calculations

The estuary calculations are run by:

37	*Running the Estuary Calculations*
1	Click on the SIMCAT icon then Run SIMCAT (Figure 12) to open the Run SIMCAT form (Figure 83).
2	Tick Run Estuary Calculations then click on Run.**

Estuary and Coastal Waters Plot charts

To create the estuary and coastal waters pie charts:

38	Create Estuary and Coastal Water Pie Charts
1	Click on the Plot Sector Charts* button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) which opens the Plot Sector Charts form (Figure 75).* Click on the dropdown box to select the chemical substance of interest. Tick the Plot LTRaCs button. Click on the plot options within the Lakes, Estuaries and Coastal Margins section of the form. Click on Run to create the pie or stacked bar charts..
2	Click on the dropdown box to select the chemical substance of interest. Output for all determinands can be generated in one operation by selecting All Chemicals.
3	Tick the Plot LTRaCs* button.*
4	Click on the plot options within the Lakes, Estuaries and Coastal Margins* section of the form.*
5	Click on Run* to create the pie charts.*

Further information on the settings on the Plot Sector Charts form related to estuaries and coastal waters is provided below:

Load (input), Conc (output) or Flow (input) – selects input loads, simulated lake concentration or input flow.
Sector or Input (river, direct, pumped) – selects sector inputs or the relative magnitude of inputs from direct river inflows and local inputs (including direct discharges).
Inflow, Outflow or TSS – plots flow-weighted average of the inflow concentration, estimated outflow concentration based on dilution by seawater or total suspended solids concentration.

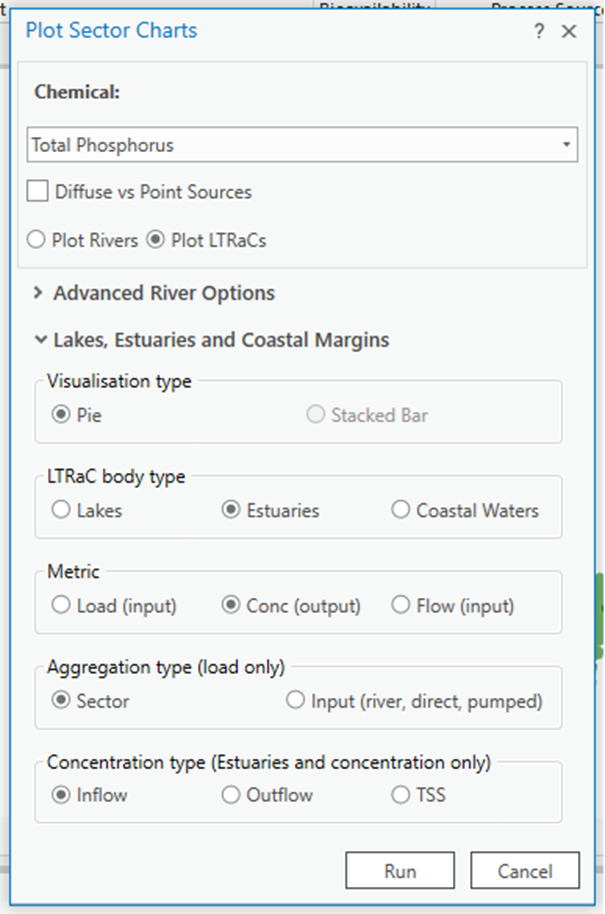

Figure 75 Plot Sector Charts form (Estuaries)

An example map is shown in Figure 76.

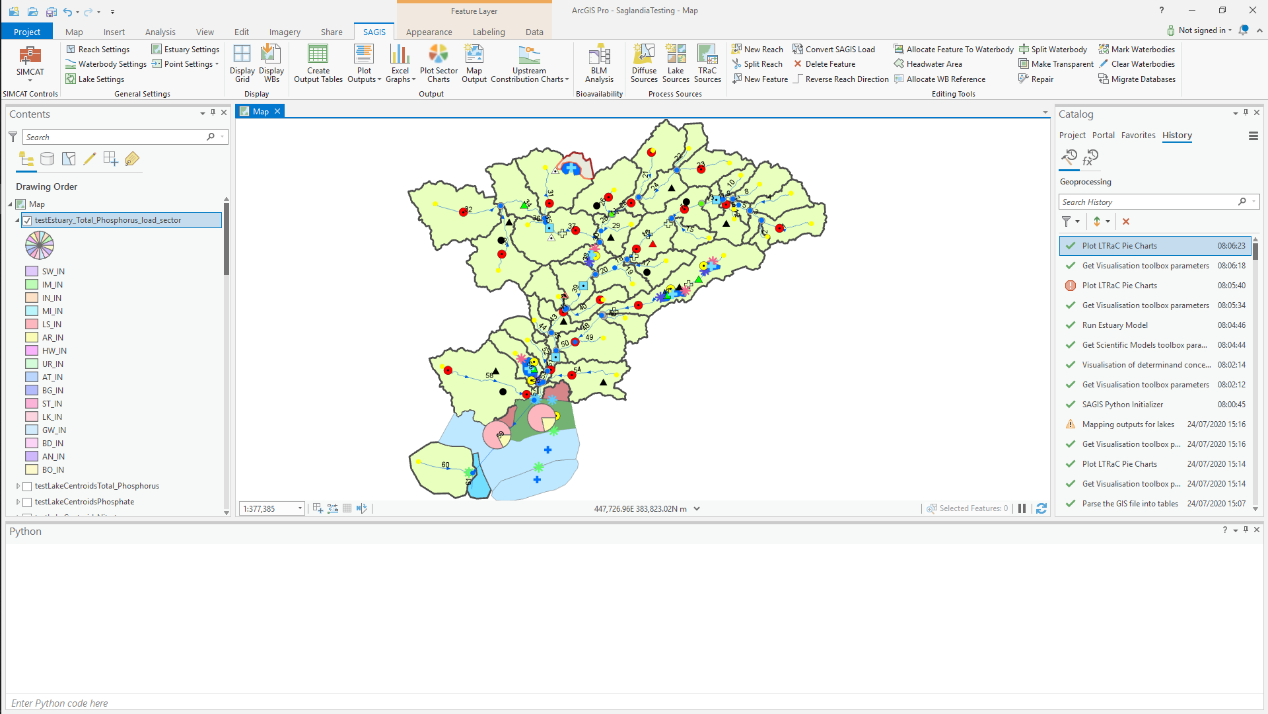

Figure 76 Example estuaries sector pie charts

Estuary Plots (Excel)

Two types of graph are available for output from the estuary calculations; total suspended solids plots and concentration plots. To generate these plots:


39	Create Estuary Plots in Excel
1	Select the Excel Graphs* icon (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) then Estuary which opens the Plot Estuary Graphs form (Figure 77).*
2	Choose the Determinand* to report data for from the dropdown list.*
3	In the two dropdowns in the Sample Point* section choose an estuary (Waterbody) and Sample Point that you want data for from the dropdown lists or Select on map.*
4	Select Run. Following this a spreadsheet will appear automatically in the dat file folder.
5	Open the spreadsheet and click on the Initialise Estuary Data button (in the Import_Controls tab; Figure 78). Charts including a Total Suspended Solids plot (e.g. Figure 79) and a Chemical concentration plot (e.g. Figure 80) will appear.
6	There is the facility to update the charts for another Estuary and Sample Point within the same model by modifying the selection within the spreadsheet (instructions are included within the worksheet itself).

Figure 77 Plot Estuary Graphs form

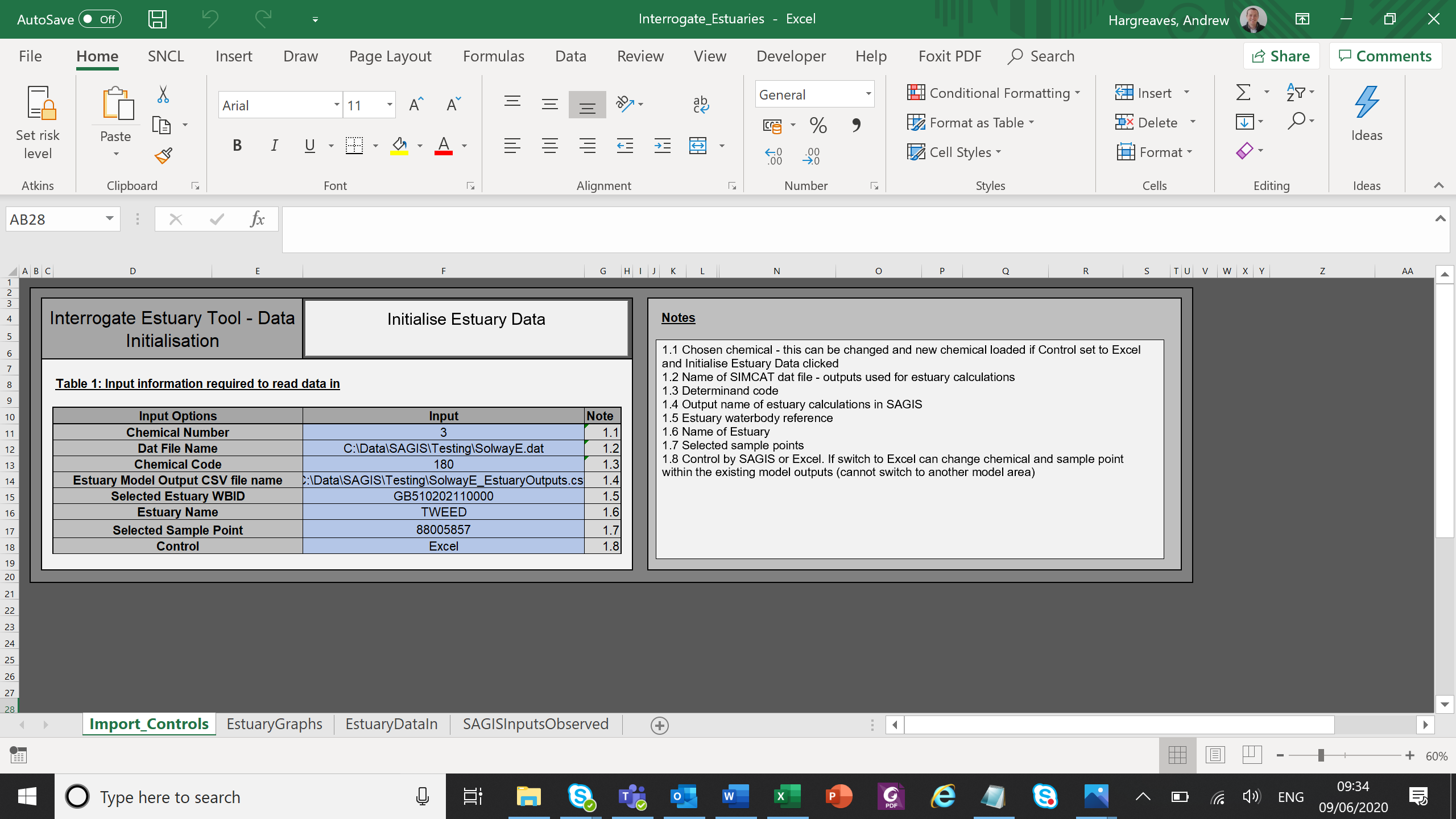

Figure 78 Estuary plots via Excel

Total Suspended Solids plots (e.g. Figure 86) compare:

Freshwater – The TSS concentration that would result in the estuary due to the freshwater inputs and no other inputs (after mixing with seawater).
Sea – The TSS concentration that would result in the estuary from seawater if there were no other inputs.
Estuary – The observed TSS concentration.

Figure 79 Example Total Suspended Solids plot

Chemical concentration plots (e.g. Figure 87) show:

Inflow concentration – the average concentration in the influent water from all rivers and direct inflows.
Outflow concentration – concentration of water flowing out of the estuary after full mixing of freshwater and seawater.
Sediment concentration – the concentration in suspended sediment based on observed data.
Observed concentration – observed concentration.

Comparison of the plots shows the contribution of freshwater inputs and seawater to estuary concentrations compared to observed concentrations and those based on sediment concentrations.

Figure 80 Example Chemical concentration plot

Upstream contribution charts

Before these charts can be generated, output tables must be created using Process Lakes, Estuaries and Coastal Outputs (Chapter 12.2). To create upstream contribution charts follow the steps described in the box below:

40	Create Estuary and Coastal Upstream Contribution Charts
1	Click on the Upstream Contribution Charts button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) and then on either the Sector Charts or Point Source Charts option which opens the associated Upstream Contribution Charts form (for Sector Charts: Figure 44 and for Point Source Charts: Figure 45).
2	Select the Waterbody* of interest from the dropdown list.*
3	Select the chemical of interest using the Determinand* dropdown box.*
4	Specify the Point Source Options or Sector Options.
5	Click on Run* to create the chart.*

Bioavailability Model and MPER

SAGIS can be used to run MPER, a metal permitting tool developed for the Environment Agency. MPER carries out Monte Carlo RQP style mass balance calculations at single locations using statistical information on upstream and discharge flows and concentrations. The MPER functionality in SAGIS allows this information to be provided from the SAGIS databases. Model outputs from MPER run in batch mode can generate regional scale maps of MPER at selected wastewater treatment works.

Running MPER

Before running the tool, dissolved metal concentrations must first be modelled using SAGIS where partitioning has been applied to the total concentration sector inputs. Once SAGIS has created the SIMCAT dat file and SIMCAT has been run, the output needs to be plotted:

41	Plot Mapped Model Output for BLM and MPER
1	Click on the Plot Outputs button (which is available in the SAGIS tab on the ArcPro toolbar, Figure 4) then Plot Rivers to open the Plot River Outputs form (Figure 33).
2	Select the chemical substance of interest using the dropdown box. Output for all determinands can be generated in one operation by selecting All Chemicals.
3	Select the MPER* option in the Output Location section of the form (Figure 33).*
4	For total metals, select the partitioned fraction to plot by selecting Dissolved* using the option buttons in the Partitioned Outputs box..*
5	Click on the Create Map* button*

The data for DOC, pH and calcium can come from a number of sources:

Theisson polygons (created in the BLM Biostandards access database).
Observed data (BLMSamplePointQuality in the Common Database).
Output from SAGIS (DOC has been modelled in SAGIS previously).
SEPAs alkalinity and BLM model which is incorporated into SAGIS but only operates with Scottish data.

Operation of the SAGIS MPER tool varies depending on the sources of data. If SAGIS-SIMCAT output for DOC or the outputs from the SEPA tool are used, these must already be run and the output layer available in the table of contents.

To run the bio availability analysis tool:

42	*Running MPER*
1	Select the SEPA Alkalinity and BLM model output or SAGIS-SIMCAT DOC model output if these are to be used as sources of data.
2	Highlight the wastewater treatment works on the map for which outputs are required. An option is also available to run all works.
3	Click on the MPER button to open the MPER form (Figure 81).
4	Select the options in the Data Sources section of the form. This determines where the DOC, calcium and pH data is sourced.
5	Click on Calculate Stds and select the BLM database as prompted (e.g. BioConcData.mdb). Data is gathered for pH, DOC and calcium which is populated into the existing mapped output layers of the selected metals.
6	Populate the MPER Options part of the form and click on Create MPER File. This opens a dialogue to select a name for the file.
7	Click on Run MPER to run MPER (a black screen appears with model output, similar to SIMCAT).
8	Click on Map MPER and select the MPER output file as prompted to create a new mapped layer with the MPER outputs for each of the selected chemical substances (e.g. Figure 82). This is colour based on the ratio of the downstream concentration and the standard.

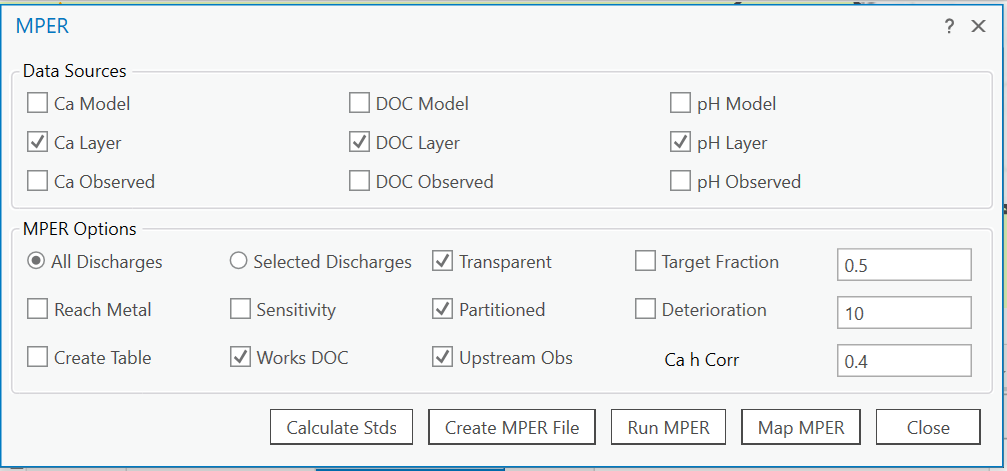

Figure 81 MPER Analysis form

Further information on the settings on the MPER form is provided below:

Interpolate – When calculating the dissolved equivalent of the BLM standard using the lookup table in the BLM database, values are interpolated; otherwise the closest value is applied.
DOC Layer – applies the DOC Theisson polygon layer in the BioStandard database to input DOC.
DOC Model – applies either SAGIS-SIMCAT output or SEPA model DOC to input DOC (this layer needs to be selected in the table of contents first).
DOC Observed – applies upstream observed values from the BLMSamplePointQuality table in the Common database. This is used in combination with one of the other DOC input options, replacing the mapped information with the local observed data if this is available.
Ca Layer – applies the Ca Theisson polygon layer in the BioStandard database to input Ca.
Ca Model – applies the SEPA model Ca (this layer needs to be selected first) to input Ca (this can only be applied for the Scottish models at present).
Ca Observed – applies upstream observed values from the BLMSamplePointQuality table in the Common database. This is used in combination with one of the other Ca input options, replacing the mapped information with the local observed data if this is available.
pH Layer – applies the pH Theisson polygon layer in the BioStandard database to input pH.
pH Model – applies the SEPA model Ca (this layer needs to be selected first) to input pH (this can only be applied for the Scottish models at present).
pH Observed – applies upsteam observed values from the BLMSamplePointQuality table in the Common database. This is used in combination with one of the other pH input options, replacing the mapped information with the local observed data if this is available.
All STWs – applies the calculations to all wastewater treatment works (in SimFeatures).
Selected STWs – applies the calculations only to highlighted wastewater treatment works (in SimFeatures).
Transparent – makes the SAGIS layers transparent with mapping the MPER output to make it clearer.
Target Fraction – when this is ticked the upstream concentration is set to the specified fraction of the dissolved equivalent of the BLM standard.
Deterioration – when this is clicked MPER applies a deterioration assessment against the specified percentage deterioration.
Partitioned – ticked when the metal concentrations have been simulated by partitioning.
Sensitivity – applies MPER sensitivity calculations outputs from which are issued in the outputs.
Reach Metal – if ticked applies, the observed upstream metal concentration is available upstream in the same reach.
Create table – if ticked, a table is created in the regional database when the MPER input file is created as a record of the outputs.
Works DOC – A default value is applied for the discharge DOC (from the Def STWQual table in the Common database). However, when ticked the value is replaced by the observed data if this is found in the BLMSamplePointQuality table in the Common database).
Upstream Obs – if ticked, applies the observed DOC, pH or calcium if available on the same reach upstream of the discharge.
Ca pH Corrlation – correlation between calcium and pH.

Figure 82 Example mapped output from MPER (coloured squares show ratio of bioavailable concentration and bioavailable concentration standard at locations with discharges)

SAGIS Tools

In addition to the SAGIS interface that drives the SAGIS-SIMCAT functionality, several tools have been created to support model building and analysis. These are run by clicking on icons shown below. Details of the operation and function of these tools is provided in this chapter.

Additional model build tools are available on the ribbon in the Editing Tools command set (Figure 83).

New Reach

This tool is used to add a new reach to the SimReaches river polyline. To add a new reach:

43	*Create New Reach*
1	Click on the New Reach tool which creates a cross hair cursor. Click on the map on the line of the new reach starting at the location of the start of the reach. Each click creates a new vertex then double click when the reach joins the existing polyline.
2	A new reach and headwater node will be added. The old reach will also be split at the new confluence and a new node added at the confluence.
3	Further information is added to the reaches including a new unique reference, length, reach type, waterbody ID and other information collected from the existing reaches.
4	Further information on the new reach needs to be added manually including the name and alpha and beta.
5	The addition of the new reaches requires recalculation of the reach connectivity. After the new features have been created, a Yes/No prompt appears asking to recalculate connectivity. If several reaches are to be added it is best to wait until the last is complete to recalculate the connectivity. Alternatively, the connectivity can be recalculated using the Create SIMCAT File form.

Split Reach

This tool is used to split an existing reach to the SimReaches river polyline. To split the reach:

44	*Split Reach*
1	Click on the Split Reach tool which creates a cross hair cursor. Click on the map on the river polyline where the river needs to be split.
2	A prompt indicates the X and Y location of the split.
3	The existing reach is split and new continuation node added between the new reaches.
4	A new unique ID is created for the downstream reach and reach lengths calculated. Other values such as diffuse inputs are derived from the previous reach.
5	Splitting the reach requires recalculation of the reach connectivity. After the reach has been split, a Yes/No prompt appears asking to recalculate connectivity. If several reaches are to be modified it is best to wait until the last is complete to recalculate the connectivity. Alternatively, the connectivity can be recalculated using the the Create SIMCAT File form.

New Feature

45	*Add New Feature*
1	Click on the New Feature tool which creates a cross hair cursor.
2	Click on the map where the new feature is to be added. This opens the Create Point Feature form (Figure 84).
3	Select the feature type on the form and click Create.
4	The new feature is created with the location, GISCode, waterbody reference and reach location. Further information needs to be added such as the feature name and water quality code reference.

Figure 84 Create Point Feature form

Convert SAGIS Load

To convert SAGISPointFeature_LOAD features to a SimFeature:

46	*Converting Load to Flow features*
1	The flow statistics associated with the SAGISPointFeature_LOAD first need to be calculated and entered in the following attributes table fields FLOW_MEAN, FLOW_Q95 and FLOW_CORR (mean flow, standard deviation of flow and the correlation between discharge flow and river flow) in the SAGISPointFeature_LOAD layer. These can be calculated from the loads already in the layer and a default concentration.
2	Select the features to be converted (e.g. using Select by Attributes).
3	Click on the tool. A Yes/No prompt appears asking to remove the old SAGISPointFeature _LOAD features from the map and database.
4	The new SimFeatures appear on the map with data transferred from the SAGISPointFeature_LOAD layer (e.g. name, location etc.), but other data in the attributes table needs to be added.

Delete Feature

47	*Delete Feature*
1	Select feature to delete.
2	Click on the Delete Feature icon.
3	The number of features selected is indicated and a prompt appears to proceed with deleting each feature type in turn.

Reverse Reach Direction

48	*Reverse Reach Direction*
1	Make the project non-editable.
2	Select the reach.
3	Click on the Reverse Reach Direction tool to reverse the reach direction.

Allocate Feature to Waterbody

49	*Allocate Feature to Waterbody*
1	Click on the Allocate Feature To Waterbody tool to allocate waterbodies and point source inputs to inland rivers, estuaries and coastal waterbodies based on their location. It is used as part of the model build process.

Headwater Area

50	*Calculate Headwater Area*
1	Click on the Headwater Area tool to calculate the headwater area (written to the UpArea field in the SimNodes attributes layer).

Allocate WB Reference

51	*Allocate Waterbody Reference* *to Rivers*
1	Click on the Allocate WB Reference tool to allocate the waterbody reference to the reaches.

Split Waterbody

52	*Split Waterbody*
1	Select the waterbody to split.
2	Click on Split Waterbody tool. This creates a cross hair cursor which is used to click on the map along the line where the waterbody is to be split.
3	A prompt asks the user to provide an extension to the waterbody ID for the new waterbody (this is added to the existing waterbody ID).
4	A prompt asks the user if the waterbody flow inputs (in the Regional Database table WB_FlowEstimates) are to be modified (i.e. split between the two waterbodies based on area).
5	The user is prompted to apply other tools to update the waterbody ID references in the other layers (e.g. SimFeatures, SimReaches etc.). This needs to be carried out separately.
6	Note that processing of Diffuse Sources (Section 3.1) must be re-run to align the diffuse sector inputs with the revised waterbody layer.

Make Transparent

This icon is used to make the feature layers transparent to make the output symbology clearer on the map:

53	*Make Transparent*
1	Click on the Make Transparent tool.
2	Specify the % transperency as prompted and click OK to apply.

Repair

This tool repairs corrupted GIS layers:

54	*Repair Layers*
1	Highlight a layer in the table of contents then click on the Repair tool to apply repair. This is used to repair layers that have become corrupted.

Mark Waterbodies

55	*Mark Waterbodies*
1	Select the waterbodies to be marked.
2	Select the Mark Waterbodies tool to apply mark.

Clear Waterbodies

56	*Clear Waterbodies*
1	Select the waterbodies for which mark to be cleared.
2	Select the Clear Waterbodies tool to remove mark.

Migrate Databases

This tool is used in the process for converting pre-existing Access databases (used in the ArcMap version of SAGIS) into file geodatabase format required by the ArcGIS Pro version of SAGIS (for more detail see Chapter 15).

Delete, Copy/Paste and Edit File Geodatabase Tables using ArcGIS Pro Interface

57	*Delete, Copy/Paste and Edit File Geodatabase Tables using ArcGIS Pro Interface*
1	Open the ArcGIS Pro Catalog by selecting Catalog View (located in the View tab) and navigate to a File Geodatabase Table added to a project.
2	Right click and select Delete from the options to delete a table.
3	Right click and select Copy; then navigate into a File Geodatabase and Paste to include a copy of a File Geodatabase Table in a File Geodatabase (if a File Geodatabase Table with the same name already exists then an appendix will be applied to the name e.g. ‘_1’).
4	To edit a File Geodatabase Table, right click and select Add to Map.**
5	Right click on the table in the Contents pane and select Open.
6	Double click on a cell within the table to make a modification.
7	Once modification(s) have been made, select the Save button in the Edit tab which opens the Save Edits form (press Show Edits to reveal the tables where edits have been made).
8	Select Yes to save edits made.

Converting Database Formats

SAGIS connects and uses data from various databases, that are either common or specific (i.e. regional model databases). Whereas in the ArcMap version of SAGIS these databases exist in Microsoft Access database format (this is a legacy format), the ArcGIS Pro version of SAGIS requires data to be stored in file geodatabase format. The file geodatabase format offers numerous advantages over the Access database format, in particular, that the file geodatabase equivalents of pre-existing Access databases are much smaller in size and have a much larger maximum file size (1tb vs 2gb). Because of the transition of SAGIS to the ArcGIS Pro platform, all pre-existing model databases must be converted to the new file geodatabase format. This chapter describes a series of management tasks that should be undertaken prior to converting databases from the legacy Access format to the file geodatabase format, as well as the process for converting the databases.

Database management and trouble shooting

There are two classes of data that need to be managed, namely, tables and feature classes (i.e. tables with associated geometry and coordinates which typical have a ‘Shape_Index’ extension). It is strongly recommended that modifications, edits and deletions are made to the databases using Arc Catalog, either in ArcMap, or ArcGIS Pro after the conversion. Attempting these actions with Microsoft Access directly will risk that data becomes mismatched or corrupted which may have implications for the database migration and subsequent use within ArcGIS Pro. For example, tools such as ArcCatalog automatically ‘group’ the components of feature class data so that data tables and their corresponding geometry components are visible as a single entity whereas in Access these are visible as separate entities. To avoid deleting or corrupting any necessary data, it is advised that no tables or feature classes are deleted from the original databases, but rather only the necessary data is copied into the new file geodatabase using Arc Catalog. It is, however, an opportune time to remove unnecessary data (e.g. old outputs or intermediate data). Users should also, of course, confirm that models are fully operational prior to the file type conversion (e.g. test the open and update, dat file creation, outputs plotting functions).

Information on tables and feature classes are summarised in four tables in this document to support data management and migration processes as well as identifying common issues that have been found to cause problems. These are:

Table 1 lists the tables in each regional model database, indicating those which are required, optional, and the essential meta data tables that are typically not visible to users. This also lists tables that are frequently found in regional model databases, but which have subsequently been deprecated in the course of SAGIS development and that are no longer required (i.e. unnecessary for these to be transferred).
Table 2 lists the feature classes required for each regional model database.
Table 3 lists the fields that should be present in the DeterminandsForSIMCAT table in the common tables database. The structure of this table has changed in recent years and legacy versions of this table may be missing fields that will generate errors with both the latest ArcMap and ArcPro versions of SAGIS. Prior to the database migration, modellers should substitute legacy versions of the DeterminandsForSIMCAT table with that present in the common tables database distributed with the Saglandia database if an update is required.

Common Issues and Troubleshooting

Table 4 lists a series of common data related issues that have been uncovered in databases in the course of working with (certain) live models that have been found to cause difficulties. The ‘DB’ field indicates if the issue relates to the common tables database (C) or the regional model database (R). Users should check and, if necessary, rectify issues prior to creating new databases. Please note that this list is not definitive – it is probable that other data-related issues will exist. Please also note that tables containing fields with the character length set to maximum (>2 million characters) will cause a memory error even if the field is not used by code directly. Fields with this type of formatting are likely to be indicative of database corruption and so, if any single instance is identified it is possible that other instances will be found. However, this is the only known cause of memory related errors encountered in testing thus far.

Table 2 SAGIS tables
No	Name	Comments	Status
1	AbstractionNPDs	Not present in all models - only where previously set up	Optional
2	Anglers_CORCOEFF		Required
3	Anglers_LOAD		Required
4	Anglers_STDDEV		Required
5	ArableFarming_CONC	Created to test functionality to add sector inputs as concentrations	Optional
6	ArableFarming_CORCOEFF		Required
7	ArableFarming_Loads		Required
8	ArableFarming_pKMReach		Required
9	ArableFarming_STDDEV		Required
10	AtmosphericDeposition_CORCOEFF		Required
11	AtmosphericDeposition_Loads		Required
12	AtmosphericDeposition_pKMReach		Required
13	AtmosphericDeposition_STDDEV		Required
14	Atmospheric_CORCOEFF		Deprecated
15	Atmospheric_LOAD		Deprecated
16	Atmospheric_STDDEV		Deprecated
17	BirdCounts		Required
18	Birds_CORCOEFF		Required
19	Birds_LOAD		Required
20	Birds_STDDEV		Required
21	Boats_CORCOEFF		Required
22	Boats_LOAD		Required
23	Boats_STDDEV		Required
24	CalculationType	Legacy from national SIMCAT models - not used by SAGIS	Deprecated
25	CalDiffuseFlow		Deprecated
26	CalHeadWaterFlow	A critical value in this table exists in a field named ‘FivePercentFlow’. However, in certain models the field is named ‘F5PercentFlow’. This discrepancy causes the ‘FLOW_NPILE’ value in the SimFeatures table not to be updated. The correct field name is ‘FivePercentFlow’ and databases should be updated accordingly. This issue affects four tables, namely ‘SimRiverFlowGauges’, ‘CalHeadWaterFlow’, ‘SimOtherFeatures’ and ‘Type13Flow’. All tables should be updated.	Deprecated
27	DBLocations		Deprecated
28	DefDiffuseWBFlow	Also in national common database but if present in the regional model database these take precedent	Optional
29	DefSTWQual	Also in national common database but if present in the regional model database these take precedent	Optional
30	DeterminandPrediction	Legacy from national SIMCAT models - not used by SAGIS	Deprecated
31	DeterminandType	Legacy from national SIMCAT models - not used by SAGIS	Deprecated
32	DiffuseQuality	Legacy table, previously used to apply reach specific diffuse inputs for non-sector determinands (e.g. BOD, ammonia). Values in this table will take precedence of values in the ‘DefDiffuseQual’ table	Required (table must be present but is usually blank)
33	DiffuseScenarios		Optional
34	FlowNPDs	Not present in all models - only where previously set up	Optional
35	GeneralAttributes		Required
36	GeneralSettings		Required
37	HeadWaterQuality	Legacy table, previously used to apply headwater specific diffuse inputs for non-sector determinands (e.g. BOD, ammonia). Values in this table will take precedence of values in the ‘DefHeadQual’ table	Required (table must be present but is usually blank)
38	HighwayRunoff_CORCOEFF		Required
39	HWYTOTAL_Load	Any table ending in "Load" rather than “Loads” (note the ‘s’) should be removed	Deprecated
40	HWY100_Loads		Required
41	HWY100_pKMReach		Required
42	HWY20_Loads		Required
43	HWY20_pKMReach		Required
44	HWY40_Loads		Required
45	HWY40_pKMReach		Required
46	HWY60_Loads		Required
47	HWY60_pKMReach		Required
48	HWY80_Loads		Required
49	HWY80_pKMReach		Required
50	HWYTOTAL_Loads		Required
51	HWYTOTAL_pKMReach		Required
52	LakeMonthlyRatesSRR		Required
53	LakeMonthlyRatesSSR		Required
54	LakesData		Required
55	LakeVolNPDs	Not present in all models - available only where previously set up	Optional
56	LakeWBAreasTable		Optional
57	LivestockFarming_CORCOEFF		Required
58	LivestockFarming_Loads		Required
59	LivestockFarming_pKMReach		Required
60	LivestockFarming_STDDEV		Required
61	ModelRun	Legacy from national SIMCAT models - not used by SAGIS	Deprecated
62	MonthlyFeatureData	Not present in all models – available only where previously set up although table must be present (even if empty)	Optional
63	NaturalBackground_CORCOEFF		Required
64	NaturalBackground_Loads		Required
65	NaturalBackground_pKMReach		Required
66	NaturalBackground_STDDEV		Required
67	OSWwTS_CORCOEFF		Required
68	OSWwTS_Loads		Required
69	OSWwTS_pKMReach		Required
70	OSWwTS_STDDEV		Required
71	SAGISPFL	Used to return the SAGISPointFeature_LOAD layer to original values - if point features and/or data have been edited, this table must be removed	Optional
72	SimAbstractions	The table in the regional database contains fields named as ‘SIM_FEATURE_TYPE’ and ‘SIMFEATURETYPE’. In the English and Welsh regional models, the field with underscores is normally populated, whereas the other one is blank. In Scottish models, it seems to be the other way around. The code has been standardised to use data in the ‘SIM_FEATURE_TYPE’ field therefore where relevant data exists in the ‘SIMFEATURETYPE’ field this should be transferred to the ‘SIM_FEATURE_TYPE’ field.	Required
73	SimConnectivity		Required
74	SimDiffuseWBTable		Optional
75	SimDischarges		Required
76	SimFeaturesMonthly	Not present in all models - only where previously set up	Optional
77	SimFeatureTypes	Legacy from national SIMCAT models - not used by SAGIS	Deprecated
78	SimLakeWQSettings		Required
79	SimNodeTypes	Legacy from national SIMCAT models - not used by SAGIS	Deprecated
80	SimOtherFeatures	A critical value in this table exists in a field named ‘FivePercentFlow’. However, in certain models the field is named ‘F5PercentFlow’. This discrepancy causes the ‘FLOW_NPILE’ value in the SimFeatures table not to be updated. The correct field name is ‘FivePercentFlow’ and databases should be updated accordingly. This issue affects four tables, namely ‘SimRiverFlowGauges’, ‘CalHeadWaterFlow’, ‘SimOtherFeatures’ and ‘Type13Flow’. All tables should be updated.	Required
81	SimPlottingPoints		Required
82	SimRiverFlowEstimates	Legacy from national SIMCAT models - not used by SAGIS	Deprecated
83	SimRiverFlowGauges	A critical value in this table exists in a field named ‘FivePercentFlow’. However, in certain models the field is named ‘F5PercentFlow’. This discrepancy causes the ‘FLOW_NPILE’ value in the SimFeatures table not to be updated. The correct field name is ‘FivePercentFlow’ and databases should be updated accordingly. This issue affects four tables, namely ‘SimRiverFlowGauges’, ‘CalHeadWaterFlow’, ‘SimOtherFeatures’ and ‘Type13Flow’. All tables should be updated.	Required
84	SimRiverQuality	Legacy from national SIMCAT models - not used by SAGIS	Deprecated
85	SimSetup	Legacy from national SIMCAT models - not used by SAGIS	Deprecated
86	SubAreasTable		Required
87	TributaryQuality		Required
88	Type13Flow	A critical value in this table exists in a field named ‘FivePercentFlow’. However, in certain models the field is named ‘F5PercentFlow’. This discrepancy causes the ‘FLOW_NPILE’ value in the SimFeatures table not to be updated. The correct field name is ‘FivePercentFlow’ and databases should be updated accordingly. This issue affects four tables, namely ‘SimRiverFlowGauges’, ‘CalHeadWaterFlow’, ‘SimOtherFeatures’ and ‘Type13Flow’. All tables should be updated.	Required
89	Type13Qual		Required
90	Type15Qual		Required
91	UrbanRunoff_CORCOEFF		Required
92	UrbanRunoff_Loads		Required
93	UrbanRunoff_pKMReach		Required
94	UrbanRunoff_STDDEV		Required
95	WB_FlowEstimates		Required
96	FlowCalibration**	Flow calibration tables start with this string	Optional
97	WQCalibration**	WQ calibration tables start with this string	Optional
98	GDB_AnnoSymbols	These tables are metadata from the database and should not be visible to the user within Arc Catalog. If the database is opened with Microsoft Access these must not, under any circumstance, be deleted or modified. Doing so may cause irreparable damage.	Metadata
99	GDB_AttrRules		Metadata
100	GDB_CodedDomains		Metadata
101	GDB_ColumnInfo		Metadata
102	GDB_DatabaseLocks		Metadata
103	GDB_DefaultValues		Metadata
104	GDB_Domains		Metadata
105	GDB_EdgeConnRules		Metadata
106	GDB_Extensions		Metadata
107	GDB_FeatureClasses		Metadata
108	GDB_FeatureDataset		Metadata
109	GDB_FieldInfo		Metadata
110	GDB_GeomColumns		Metadata
111	GDB_JnConnRules		Metadata
112	GDB_NetDatasets		Metadata
113	GDB_ObjectClasses		Metadata
114	GDB_RangeDomains		Metadata
115	GDB_RasterCatalogs		Metadata
116	GDB_RelClasses		Metadata
117	GDB_ReleaseInfo		Metadata
118	GDB_RelRules		Metadata
119	GDB_ReplicaDatasets		Metadata
120	GDB_Replicas		Metadata
121	GDB_SpatialRefs		Metadata
122	GDB_StringDomains		Metadata
123	GDB_Subtypes		Metadata
124	GDB_Toolboxes		Metadata
125	GDB_TopoClasses		Metadata
126	GDB_Topologies		Metadata
127	GDB_TopoRules		Metadata
128	GDB_UserMetadata		Metadata
129	GDB_ValidRules		Metadata

No	Name	Comments	Status
1	SimFeatures		Required
2	SimNodes		Required
3	SAGISPointFeature_LOAD		Required
4	SimLTSamplePoint		Required
5	SimInflowOutflow		Required
6	SimCoastal		Required
7	SimEstuaries		Required
8	SimLocalLakeCatchment		Required
9	SimReaches		Required
10	SimWaterBodies		Required
11	SimLakes		Required
12	SimWaterBodiesCents		Required
13	SimLakesCentroids		Required
14	SimCoastalCentroids		Required
15	SimEstuaryCentroids		Required
16	ModelBoundary		Required
17	Sub***	All sub-model polygons will be as the listed feature classes but include the prefix ‘Sub’.	Required

Table 3 SAGIS feature classes

Table 4 DeterminandsForSIMCAT table (common tables database)
No.	Field	No.	Field	No.	Field
1	Include	60	CorCoeff_Livestock	119	SWHWCOR
2	ID	61	CorCoeff_NatBack	120	SWURCOR
3	OBJECTID	62	CorCoeff_Highways	121	SWBGCOR
4	DETERMINAND_CODE	63	CorCoeff_OSWwTWs	122	SWSTCOR
5	SCOTTISH_DETCODE	64	CorCoeff_Urban	123	SWBOCOR
6	DETERMINAND_NAME	65	CorCoeff_Atmos	124	BioStandard
7	DET_TYPE	66	CorCoeff_AggInts	125	BioBackground
8	DETERMINAND_UNIT	67	CorCoeff_ AggSAGISWwTWs	126	TargetListNo
9	UNIT_NAME	68	CorCoeff_CSOs	127	SWLKCOR
10	DET_LABEL	69	CorCoeff_StormTanks	128	SWLKCOV
11	DET_SHORTNAME	70	CorCoeff_Mines	129	SWRDCOV
12	UNIT_LABEL	71	CorCoeff_Industry	130	SWRDCOR
13	GlobalRateConstant	72	CorCoeff_ SAGISWwTWs	131	ConvertINL
14	MinQualtyDecay	73	Factor_Arable	132	ConvertSW
15	AutoCalQuality	74	Factor_Livestock	133	DiffuseCorr
16	AutoCalMinQuality	75	Factor_NatBack	134	DiffuseConc
17	WorstEffQuality	76	Factor_Highways	135	Conc_Arable
18	BestEffQuality	77	Factor_OSWwTWs	136	Conc_Livestock
19	GoodEffQuality	78	Factor_Urban	137	Conc_NatBack
20	DET_Order	79	Factor_Atmos	138	Conc_Atmos
21	TargetType	80	Factor_AggInts	139	Conc_OSWwTWs
22	High	81	Factor_ AggSAGISWwTWs	140	Conc_Urban
23	Good	82	Factor_CSOs	141	Conc_Highways
24	Moderate	83	Factor_StormTanks	142	Conc_SAGISWwTWs
25	PartCoeff	84	Factor_Mines	143	Conc_SAGISIndustry
26	Poor	85	Factor_Industry	144	Conc_Mines
27	SectorData	86	Factor_ SAGISWwTWs	145	PowerA_Livestock
28	Parent	87	Monthly_Arable	146	PowerA_Arable
29	ApplyPartition	88	Monthly_Livestock	147	PowerA_Urban
30	Daughter	89	Monthly_NatBack	148	PowerA_Background
31	COV_Arable	90	Monthly_Atmos	149	PowerA_Highways
32	COV_Livestock	91	Monthly_ OSWwTWs	150	PowerA_OSWWTWs
33	COV_NatBack	92	Monthly_Urban	151	PowerA_Mines
34	COV_Highways	93	NPD_Arable	152	PowerA_CSOs
35	COV_OSWwTWs	94	NPD_Livestock	153	PowerB_Livestock
36	COV_Urban	95	NPD_NatBack	154	PowerB_Arable
37	COV_Atmos	96	NPD_Mines	155	PowerB_Urban
38	COV_AggInts	97	NPD_OSWWTWs	156	PowerB_Background
39	COV_AggSAGISWwTWs	98	NPD_Urban	157	PowerB_Highways
40	COV_CSOs	99	SeaWaterConc	158	PowerB_OSWWTWs
41	COV_StormTanks	100	SWSWCOV	159	PowerB_Mines
42	COV_Mines	101	SWINCOV	160	PowerB_CSOs
43	COV_Hyd_Arable	102	SWIMCOV	161	PowerC_Livestock
44	COV_Industry	103	SWMICOV	162	PowerC_Arable
45	COV_SAGISWwTWs	104	SWLSCOV	163	PowerC_Urban
46	COV_Hyd_Livestock	105	SWARCOV	164	PowerC_Background
47	COV_Hyd_NatBack	106	SWATCOV	165	PowerC_Highways
48	COV_Hyd_Highways	107	SWHWCOV	166	PowerC_OSWWTWs
49	COV_Hyd_OSWwTWs	108	SWURCOV	167	PowerC_Mines
50	COV_Hyd_Urban	109	SWBGCOV	168	PowerC_CSOs
51	COV_Hyd_Atmos	110	SWSTCOV	169	HeadDiffuse
52	COV_Hyd_AggInts	111	SWBOCOV	170	n/a
53	COV_Hyd_ AggSAGISWwTWs	112	SWSWCOR	171	n/a
54	COV_Hyd_CSOs	113	SWINCOR	172	n/a
55	COV_Hyd_StormTanks	114	SWIMCOR	173	n/a
56	COV_Hyd_Mines	115	SWMICOR	174	n/a
57	CorCoeff_Arable	116	SWLSCOR	175	n/a
58	COV_Hyd_Industry	117	SWARCOR	176	n/a
59	COV_Hyd_ SAGISWwTWs	118	SWATCOR	177	n/a

Table 5 Model database data issues and errors
DB	Table / feature class	Field	Problem	Solution
C	General_	OBJECTID	OBJECTID field missing or not formatted as ‘auto number’	Create or recreate OBJECTID field and format as auto number
C	ReachTargets	N/A	Table exists in common tables database but contains incorrect data	Remove table from database
C	SIMCATText	N/A	Table absent from common tables database, prevents dat file creation with latest version of ArcMap version of SAGIS	Add SIMCATText table (copy from common tables database distributed with Saglandia databases)
C	DeterminandsForSIMCAT	N/A	The structure of this table has changed in recent years and legacy versions of this table may be missing fields (refer to Table 3) that will generate errors with both the latest ArcMap and ArcPro versions of SAGIS.	Prior to the database migration, substitute legacy versions of the DeterminandsForSIMCAT table with the version in the common tables database distributed with the Saglandia database.
R	DiffuseQuality	N/A	Empty row at the top of the table	Remove empty row
R	SimLakes	GWInflow	Field is 'text' formatted, and contains spaces	Remove spaces, change field to numeric type
R	LakesData	GWInflow	Field is 'text' formatted, and contains spaces	Remove spaces, change field to numeric type
R	LakesData	GWInflowSD	Field is 'text' formatted, and contains spaces	Remove spaces, change field to numeric type
R	LakesData	GWInflowCorr	Field is 'text' formatted, and contains spaces	Remove spaces, change field to numeric type
R	LakesData	Comp_Flow	Field is 'text' formatted, and contains spaces	Remove spaces, change field to numeric type
R	LakesData	Comp_FlowSD	Field is 'text' formatted, and contains spaces	Remove spaces, change field to numeric type
R	SimLakes	EA_WB_ID	Field length set to maximum (>2 million characters), causes memory error	Recreate field (as 'text' type, sets 256-char limit), transfer pre-existing values
R	SimLTSamplePoint	EA_WB_ID	Field length set to maximum (>2 million characters), causes memory error	Recreate field (as 'text' type, sets 256-char limit), transfer pre-existing values
R	SimLTSamplePoint	LakesData	Field length set to maximum (>2 million characters), causes memory error	Recreate field (as 'text' type, sets 256-char limit), transfer pre-existing values
R	SimDischarges	Correlation	Field is 'text' formatted, should be 'numeric' type	Change field to numeric type
R	SimFeatures	Mean_Q1	Field is 'text' formatted, should be 'numeric' type	Change field to numeric type
R	SimFeatures	PermitNo	Field length inadequate, data truncated	Recreate field ('text' type) transfer pre-existing values
R	SimFeatures	CORR_Q1	Field is 'text' formatted, should be 'numeric' type	Change field to numeric type
R	SimFeatures	SD_Q1	Field is 'text' formatted, should be 'numeric' type	Change field to numeric type
R	SimReaches	N/A	Mismatching feature class data (i.e. differences in the number of rows/entries in the feature class table and 'Shape_Index' file component). Affected reaches are not visible in the reach polyline layer. Probable cause is incorrect reach layer modification.	Remove mismatched data, recreate reaches using GIS
R	SimReaches	N/A	Poorly connecting reach polylines (i.e. gaps between connected reaches). In some instances, there are gaps between reach polylines. If these are large this may result in connectively errors that are either visible (i.e. SIMCAT run fails) or invisible (the ‘stranded’ reach is connected incorrectly to another reach). Automated processes within SAGIS use the shortest reach within a given model as the reach ‘auto-connect’ tolerance. For example, if the shortest reach in a model is 10m, where there are gaps between polylines, an automated process will search for reaches within 10m of the ‘stranded’ reach and connect it with the nearest reach. If the ‘stranded’ reach is more than 10m from its nearest reach, SIMCAT will produce an error when run. Another risk is, of course, that the automated process connects reaches incorrectly.	Review reach polylines within the model and modify the reach structure (i.e. extend reaches) to minimise any gaps between connected reaches.
R	Sector data tables (all sectors, all models)	N/A	The data tables for individual sectors must contain their four component parts, that is, the [SECTOR NAME] and ‘CORCOEFF’, ‘Load’ or ‘CONC’, ‘STDDEV’. The absence of any one of these will generate a dat file creation error.	Ensure required data tables are present (Table 1).

Database migration

ArcMap is (one of) the only tools that can read and write data to and from Access and file geodatabase formats. When converting the Access databases there are two classes of data that need to be moved independently, namely, tables and feature classes. The most straightforward approach to converting the Access databases is to use the in-built conversion toolbox in ArcMap 10.2 (Figure 85). Please ensure ArcPro is closed before attempting this process using ArcMap to avoid data management conflicts.

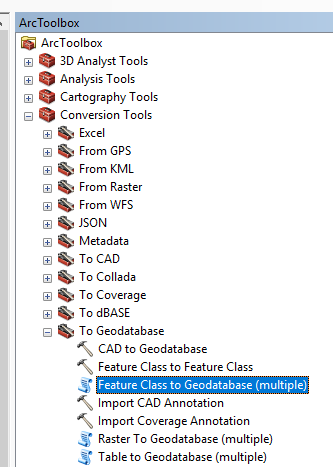

Figure 85 ArcMap 10.2 tools to convert filetypes across databases

The ArcToolbox in ArcMap has two tools within the ‘Conversion Tools’ toolbox that allow the user to select feature classes and tables and convert these to the file geodatabase format. These are:

‘Feature Class to Geodatabase (multiple)’
‘Table to Geodatabase (multiple)’

The database conversion process entails several steps, namely:

Within ArcCatalog (Figure 86), create the target file geodatabases for each of the databases to be migrated, that is, the regional model, the commontables, the LTRaC database (the ‘lakes’ and ‘estuaries’ databases will be included within a single file geodatabase), the land national database (rarely used), and optionally, an ‘Outputs’ database where model outputs can be stored.

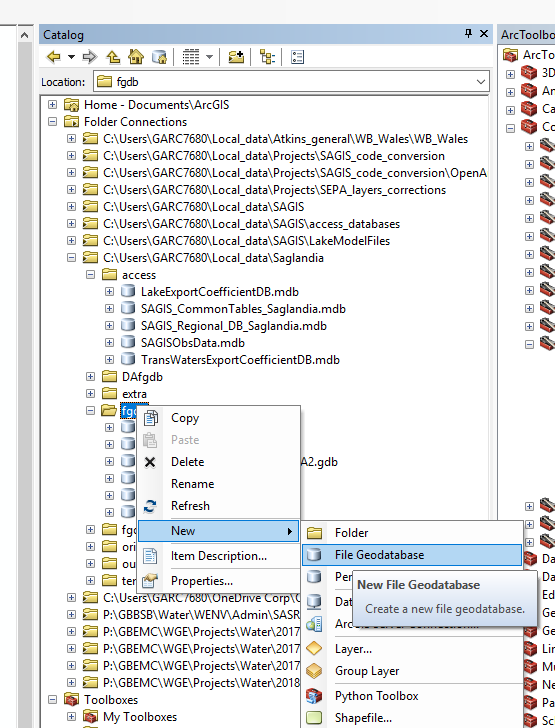

Figure 86 ArcMap 10.2 catalog tools to create the new file geodatabase

Using ArcCatalog, open the Access ‘lakes’ database and create a copy of the ‘MasterTableNames’ table named ‘MasterTableNames_lakes’.
Using ArcCatalog, open the Access ‘estuaries’ database and create a copy of the ‘MasterTableNames’ table named ‘MasterTableNames_estuaries’.
Using the ‘Feature Class to Geodatabase (multiple)’ tool, navigate to the relevant Access database (only regional model databases contain feature class data so this step will not be necessary for converting the common tables database), select the feature classes (Table 2) to be migrated (only feature class data will be visible – note that some feature class data may be located in folders [named ‘simcat’] within the Access database), select the target file geodatabase, and then select ‘ok’. The ‘TSSData’ feature class located in the ‘Obs’ database should be moved into the common tables geodatabase. A ‘pop up’ notification will indicate once the process is complete (time dependent on the size of the database and the processing capacity of the computer used).
Using the ‘Table to Geodatabase (multiple)’ tool, navigate to the relevant Access database (this will need to be done for the regional models, common tables, lakes and estuaries, and the land databases), select the tables to be migrated (users should be careful not to select tables associated with feature classes), select the destination file geodatabase, and then select ‘ok’. For the ‘lakes’ and ‘estuaries’ databases only export the renamed ‘MasterTableNames’
Run the ‘database adaptation’ tool (this modifies a number of tables within the regional databases, specifically normalising nomenclature, scans for file conversion errors and searches for missing fields) on the new file geodatabase. There are two steps associated with running this tool:
Click the ‘Migrate Databases’ icon in ‘editing tools’ (Figure 87).
Navigate to the regional model file geodatabase and select ‘Run’ (Figure 88). If a database is specified in the configuration menu this will be used by the migration tool although you will be able to specify the database to be ‘processes’ when prompted upon selecting ‘Run’.

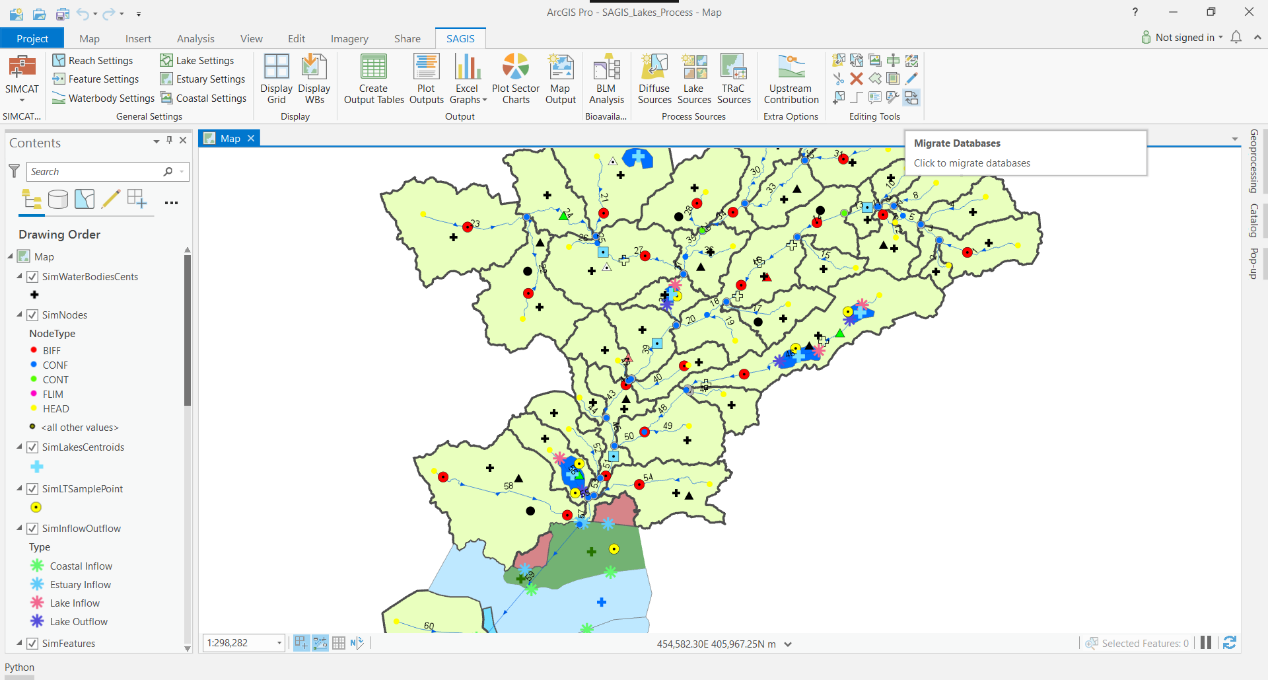

Figure 87 The ‘Migrate Databases’ tool located in ‘Editing Tools’

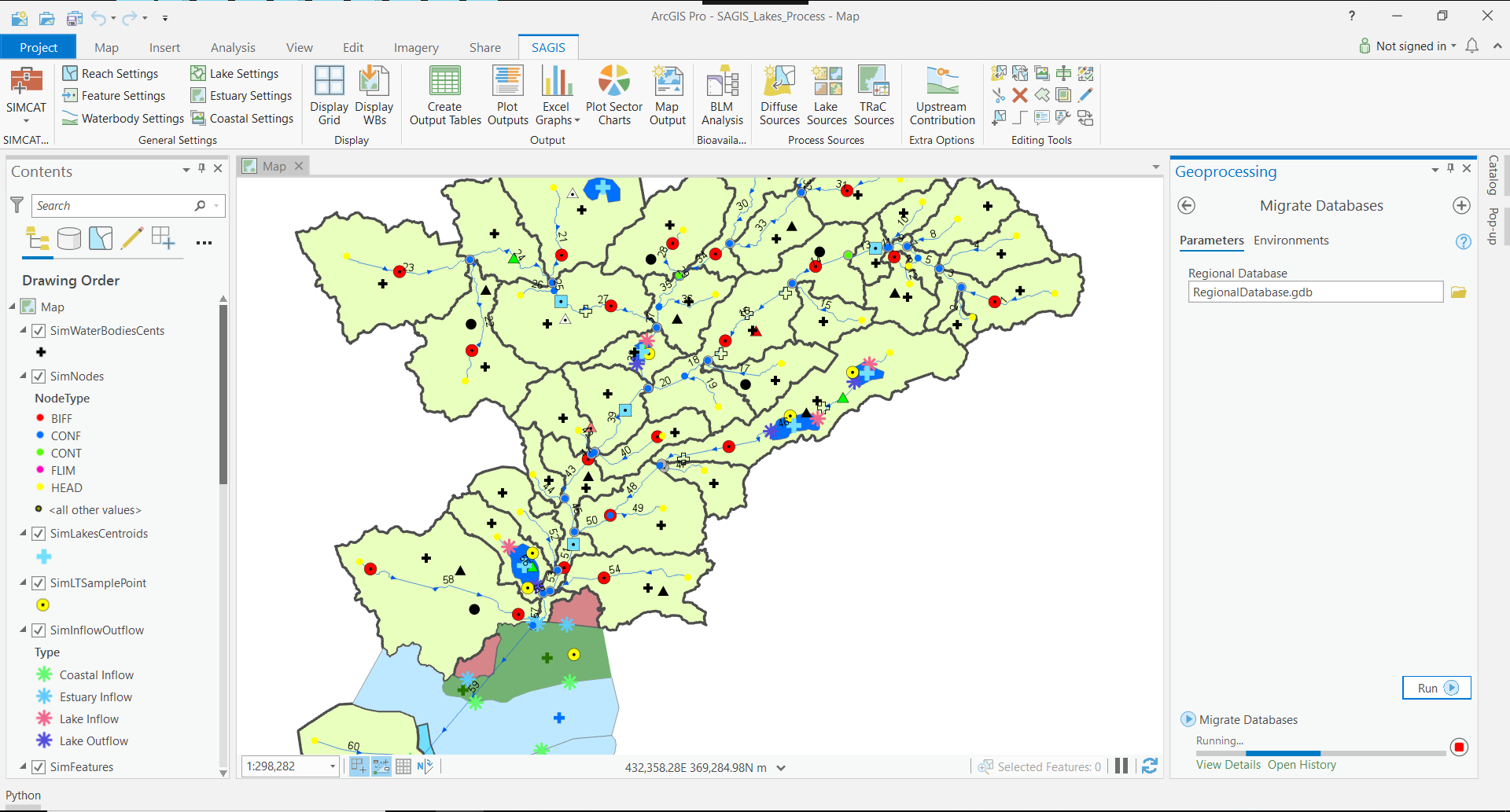

Figure 88 Navigate to the relevant regional model file geodatabase and select ‘Run’

SAGIS Databases

Data sources

The source apportionment tool is underpinned by export loads for each of the sector inputs. Diffuse source information has been processed into a 1 km² grid of England and Wales (~150,000 squares) and point source inputs (e.g. over 5,000 WwTWs and almost 400,000 on-site wastewater treatment systems) have been processed on a site basis.

The diffuse loads are reported on a common 1 km² grid then translated to the waterbody scale (automatically using GIS tools), which allows for any future changes in waterbody boundaries and the river network to be made without compromising the tool. Export loads for each of the identified substances have been generated using methodologies that were agreed (and ‘signed off’) by the Environment Agency and the UKWIR Project Steering Group. These methodologies are based on datasets on the location of sources, combined with literature, monitoring data and assumptions on the magnitude of the load associated with each source.

Inevitably, significant uncertainty is associated with some of the input data and in some cases, it is necessary to use default values. SAGIS has, therefore, been designed to allow input of improved data and settings without requiring changes to the functionality; for example, improved local data or refined spatial information.

For some substances, output from existing models has been used; notably for nutrients - phosphorus (via the PSYCHIC model) and nitrogen (via NEAP-N). For other substances, values have been derived from reported literature on export coefficients and national datasets on sources.

The SAGIS tool structure builds upon existing National SIMCAT models and associated geo-databases containing the input data and model structure.

In addition to the existing SAGIS export load databases, new lakes and estuaries export load databases have been created to provide export loads to each lake and estuary for each chemical substance. SIMCAT generates output files that are processed by the GIS tool to create inputs to lake and estuary models. Direct inputs to the estuaries, lakes and coastal waters and inputs from the local catchment, not covered by SIMCAT, are also estimated by the GIS tools and mapped onto the water bodies.

The information provided in the following sections does not describe all of the fields in all of the tables; it focuses on input values that might be directly manipulated by the user and outputs that might be processed outside of SAGIS.

Export loads databases

The export loads databases contain the national data on diffuse and point sources generated as part of the UKWIR project. The export loads databases are used to create the regional databases using the Diffuse Sources, Lakes Sources and TRaC Sources tools in the GIS interface.

The tables in the Land National Database (e.g. ExportCoefficientDB_230420.gdb) are summarised and referenced in the database table MasterTableNames (Table 5).

Sector	Variable	TableName	Load Type	Use
ArableFarming	CONC	ArableFarming_CONC	Diffuse	Yes
ArableFarming	LOAD	ArableFarming_LOAD	Diffuse	Yes
ArableFarming	COR COEFF	ArableFarming_CORCOEFF	Diffuse	Yes
ArableFarming	STD DEVIATION	ArableFarming_STDDEV	Diffuse	Yes
AtmosphericDeposition	LOAD	AtmosphericDeposition_LOAD	Diffuse	Yes
AtmosphericDeposition	COR COEFF	AtmosphericDeposition_CORCOEFF	Diffuse	Yes
AtmosphericDeposition	STD DEVIATION	AtmosphericDeposition_STDDEV	Diffuse	Yes
HighwayRunoff	COR COEFF	HighwayRunoff_CORCOEFF	Diffuse	Yes
HWY100	LOAD	HWY100_LOAD	Diffuse	Yes
HWY20	LOAD	HWY20_LOAD	Diffuse	Yes
HWY40	LOAD	HWY40_LOAD	Diffuse	Yes
HWY60	LOAD	HWY60_LOAD	Diffuse	Yes
HWY80	LOAD	HWY80_LOAD	Diffuse	Yes
HWYTOTAL	LOAD	HWYTOTAL_LOAD	Diffuse	Yes
Industry	COR COEFF	Industry_CORCOEFF	Point	Yes
Industry	STD DEVIATION	Industry_STDDEV	Point	Yes
Industry	LOAD	Industry_LOAD	Point	Yes
IntermittantsCSO	STD DEVIATION	IntermittantsCSO_STDDEV	Point	Yes
IntermittantsCSO	LOAD	IntermittantsCSO_LOAD	Point	Yes
IntermittantsCSO	COR COEFF	IntermittantsCSO_CORCOEFF	Point	Yes
IntermittantsStorm	LOAD	IntermittantsStorm_LOAD	Point	Yes
IntermittantsStorm	STD DEVIATION	IntermittantsStorm_STDDEV	Point	Yes
IntermittantsStorm	COR COEFF	IntermittantsStorm_CORCOEFF	Point	Yes
LivestockFarming	LOAD	LivestockFarming_LOAD	Diffuse	Yes
LivestockFarming	COR COEFF	LivestockFarming_CORCOEFF	Diffuse	Yes
LivestockFarming	STD DEVIATION	LivestockFarming_STDDEV	Diffuse	Yes
MineWaters	LOAD	MineWaters_LOAD	Point	Yes
MineWaters	COR COEFF	MineWaters_CORCOEFF	Point	Yes
MineWaters	STD DEVIATION	MineWaters_STDDEV	Point	Yes
NaturalBackground	LOAD	NaturalBackground_LOAD	Diffuse	Yes
NaturalBackground	COR COEFF	NaturalBackground_CORCOEFF	Diffuse	Yes
NaturalBackground	STD DEVIATION	NaturalBackground_STDDEV	Diffuse	Yes
NorthernOSWWT	LOAD	NorthernOSWWT_LOAD	Point	Yes
NorthernOSWWT	STD DEVIATION	NorthernOSWWT_STDDEV	Point	Yes
NorthernOSWWT	COR COEFF	NorthernOSWWT_CORCOEFF	Point	Yes
OSWwTS	LOAD	SepticTanks_LOAD	Diffuse	Yes
OSWwTS	COR COEFF	SepticTanks_CORCOEFF	Diffuse	Yes
OSWwTS	STD DEVIATION	SepticTanks_STDDEV	Diffuse	Yes
SAGISSewageWorks	COR COEFF	SAGISSewageWorks_LOAD	Point	Yes
SAGISSewageWorks	STD DEVIATION	SAGISSewageWorks_STDDEV	Point	Yes
SAGISSewageWorks	LOAD	SAGISSewageWorks_CORCOEFF	Point	Yes
SepticTankPoint	LOAD	SepticTankPoint_LOAD	Point	Yes
SepticTankPoint	COR COEFF	SepticTankPoint_CORCOEFF	Point	Yes
SepticTankPoint	STD DEVIATION	SepticTankPoint_STDDEV	Point	Yes
UrbanRunoff	LOAD	UrbanRunoff_LOAD	Diffuse	Yes
UrbanRunoff	STD DEVIATION	UrbanRunoff_STDDEV	Diffuse	Yes
UrbanRunoff	COR COEFF	UrbanRunoff_CORCOEFF	Diffuse	Yes

Table 6 Land National Database table MasterTableNames

For each sector there are separate tables specifying the annual load in kg per km² (LOAD), concentration (CONC), the coefficient of variation (STDDEV) and correlation coefficient (CORCOEFF). Some tables are for diffuse inputs and some for point inputs as specified by the LoadType field.

In each table the load, concentration, coefficient of variation or correlation coefficient, associated with each substance, is specified in the column headed by the appropriate determinand code (e.g. D0348_A – the annual load for total phosphorus).

Loads and concentrations can also be added monthly. In this case, the month is indicated in the field name – e.g. D0348_1 for January. Monthly inputs are only set up for a few substances and sectors (agricultural and background P and N).

The determinand codes are specified in the Common Database in the table DeterminandsForSimcat.

For sectors for which inputs are intermittent (e.g. urban runoff and intermittent discharges), a field called InputPerc1 specifies the proportion of the time that the discharge occurs. For highways, there are separate database for different rainfall bands following the method developed by the WRc.

The format of the LTRaC National Database (consolidated export coefficient database for lakes and transitional waters) is the same as the rivers database but the associated loads (birds, anglers, boats, atmospheric) are specified as total loads for each lake, estuary and coastal water body.

The table Def_RndDeviate specifies a hydrologically sequenced series of random numbers that are used for the lake model simulation. The values in this database are only used if a similar table is not present in the Regional Database. The table EstuaryPassOn specifies the percentage of sediment loads that are passed onto the coastal water for different estuary types, and Trans_Sed gives sediment concentrations for each estuary.

Common database

The Common database contains data related to all the regional models. Key tables are described below:

SamplePointQuality – This table contains the observed river water quality data which is collated at the monitoring features in the SimFeatures layer. This data is also presented when creating chainage plots. Each set of data has a unique determinand (specified by the MEAS_DETERMINAND_CODE field) and sample point code (specified by the SAMP_SMPT_USER_REFERENCE field).
LakeSampleQuality – This table contains all the observed lake water quality data which is collated at the monitoring features in the LakeEstuarySamplePoint layer. This data is also presented when creating lake calibration plots. Each set of data has a unique determinand (specified by the DETCODE field) and sample point code (specified by the SAMPLEPOINTCODE field).
EstuarySampleQuality – This table contains all the observed estuary water quality data which is collated at the monitoring features in the LakeEstuarySamplePoint layer. This data is also presented when creating estuary calibration plots. Each set of data has a unique determinand (specified by the DETCODE field) and sample point code (specified by the SAMPLEPOINTCODE field).
DischargeQuality – This table contains all the observed effluent water quality data which is collated at the discharges features in the SimFeatures layer. Each set of data has a unique determinand (specified by the MEAS_DETERMINAND_CODE field) and sample point code (specified by the SAMP_SMPT_USER_REFERENCE field).
RiverQualityTargets – This table specifies the river quality targets which are collated in the SimReaches and SimFeatures attributes tables and shown on the chainage plots. Values associated with a target number (specified by the Target field) are specified for a range of determinands. The target number is specified for each reach or feature and entered in the SIMCAT data file accordingly.
LakeQualityTargets – This table specifies the lakes quality targets which are collated in the SimLakes attributes table. Values associated with a target number (specified by the Target field) are specified for a range of determinands.
ReachTargets – Reach and waterbody specific targets (e.g. for phosphorus) are specified in this table.
General_ – This table specifies the default general setting for SIMCAT such as the number of shots and average river temperature which are shown in the General Settings form in the GIS interface. These values can be modified using this form before carrying out a SIMCAT run.
DefSTWQual – This table specifies the default effluent concentrations for the substances specified in the DeterminandsForSimcat table if no observed effluent data is available. There are a number of similar tables specifying default concentrations (e.g. DefDiffuseQual), which are only used if the inputs from the export load database are switched off and SIMCAT is run in the old way.
Def_LakeSettings – This table specifies the default values for sediment concentrations and lake settling rates, release rates and burial rates in lakes for the substances specified in the DeterminandsForSimcat table if no observed effluent data is available.
Def_EstSed – This table specifies the default values for suspended sediment concentrations in estuaries (different tidal categories) for the substances specified in the DeterminandsForSimcat table if no observed effluent data is available.
DeterminandsForSimcat – This table specifies the chemicals included in SAGIS tools and associated data and settings related to each chemical substance. Information on the key fields is listed below (Table 7).

Table 7 Common Database table DeterminandsForSimcat
Field Name	Description
DET_TYPE	Defines the SIMCAT determinand type: Type 1 = Conservative. Type 2 = Exponential decay define by decay constant.
Include	If ticked included in SIMCAT run (up to a maximum of 10 determinands). This value is modified using the SIMCAT determinands form.
ApplyPartition	If ticked the partition coefficient is applied. This value is modified using the SIMCAT determinands form.
GlobalRateConstant	Sets the global decay rate decay rate for each determinand. The rate can be modified using the General Settings form.
PartCoeff	Sets the partition coefficient for each determinand (this can only be applied to determinands (i.e. metals) with a dissolved and solid phase). The rate can be modified using the General Settings form.
COV_****	A separate field for each sector setting the Coefficient of Variation. A non-zero value will override the values in the export coefficient database.
COV_Hyd****	A separate field for each sector setting the Coefficient of Variation in relation to the Coefficient of Variation of the Diffuse Inflow for each reach. A non-zero value will override the values in the export coefficient database. This is used for determinands for which inputs are driven by runoff. A value of 1 should result in a constant Load as the inflows vary.
CorCoeff****	A separate field for each sector setting the Correlation Coefficient. A non-zero value will override the values in the export coefficient database.
Factor****	A separate field for each sector factoring the diffuse input up or down. This can be used to adjust inputs for a particular sector if there is evidence that these are systematically too low or high.
Monthly****	A value of 1 results in the tool applying monthly input data. This can only be applied for determinands and sectors for which monthly data exists in the export coefficient database.
NPD****	Name and location of unit non-parametric file to apply to diffuse loads if this option is selected.
SeawaterConc	Average concentration of the chemical substance in seawater
SW**COV	Coefficient of variation for freshwater input to the estuaries and coastal waters for the specified (**) sector.
SW**COR	Correlation factor for freshwater input to the estuaries and coastal waters for the specified (**) sector.
Biostandard	BLM standard for the chemical.
BioBackground	Background concentration for the BLM standard.
ConvertINL	Flag to convert load features to flow and concentrations features for inland waterbodies when the dat file is created.
ConvertSW	Flag to convert load features to flow and concentrations features for estuary and coastal discharges when the dat file is created.
Conc****	Flag to apply sector inputs as a concentration.
PowerA****	First part of power function for each sector.
PowerB****	Second part of power function for each sector.
PowerC****	Third part of power function for each sector.
HeadDiffuse	Flag to apply headwater diffuse sector inputs.

Regional databases - Inputs

The Regional Databases contain data and information specific to each regional SIMCAT models.

When the Diffuse Sources tool is run, the national sector loads are mapped onto the water bodies in the regional databases in a series of tables mirroring those in the Land National Database (e.g. NaturalBackground_Loads, NaturalBackground_CORCOEFF and NaturalBackground_STDDEV). These tables are accessed when the SIMCAT data file is created. The loads in the tables are the total annual load to each waterbody in kg per year.

The point source loads, coefficients of variation and correlation coefficients are mapped onto the regional model area as a single table called SAGISPointFeature_LOAD which is also presented as a layer in the GIS interface. Key fields in the table are presented below. Values can be modified using the Feature Settings form in the tool.

When the TRaC Sources tool is run the loads, coefficients of variation and correlation coefficients associated with the input sectors to these water bodies (anglers, boats, birds) are mapped onto the regional model mirroring those in the LTRaC National Database.

SAGISPointFeature_LOAD table

The key fields for this feature class are shown below (Table 8). When the model is rebuilt, modified values are replaced with the original values.

Field Name	Description
FeatName	Name of feature.
WBID	Waterbody number within which feature is located.
Diffuse	A value of 1 includes the feature in aggregated diffuse load for intermittent discharges or small wastewater treatment works.
Exclude	Exclude feature from model run.
FLOW_MEAN	Mean flow.
FLOW_Q95	Standard deviation or Q95 for flow.
FLOW_CORR	Correlation between flow and river flow.
D****_A	Average load for determinand. ****
D****_AS	Standard deviation for load for determinand. ****
D****_AC	Correlation coefficient for determinand. ****
D****_AF	Non-parametric distribution file for determinand. ****
InputPerc1	Percentage of time inputting for intermittent discharges.
Offshore	Flag to mark if the discharge occurs offshore.
OtherWBID	Waterbody ID of the waterbody into which the feature discharges if it does not discharge to a river.

Table 8 Regional Database table SAGISPointFeature_LOAD

SimReaches Table

This feature class, containing information on the SIMCAT reaches, is populated when the regional model is initialised using the Open and Update tool in the GIS interface. It collates information held in other tables in the selected Regional Database and the Common Database. Tables that are accessed during this process are:

WB_FlowEstimates – This table contains estimates of diffuse inflow to each waterbody per square kilometre derived from Lowflows 2000 (the QMeanNatPerKm2 and Q95NatPerKm2 fields).
CalDiffuseFlow – Values in this table override the diffuse inflows from the WB_FlowEstimates table and are used to calibrate the flow model. These values are added to the reaches as flow per km².
DiffuseQuality – This table inputs diffuse quality for each reach (default values are added from the Simcat Common Table Database if no values are specified). It also contains values for the travel time parameters alpha and beta.

Values in the table can be edited using the Reach Settings form. Key fields in the table are listed below (Table 9).

Field Name	Description
SIMNAME	Name of Reach.
WaterBodyNo	Waterbody number within which each reach is located.
ALPHA	Travel time parameter Alpha for the reach (see SIMCAT manual).
BETA	Travel time parameter Beta for the reach (see SIMCAT manual).
DIFF_DTYPE	Distribution type for diffuse inflows.
DIFF_MEAN	Mean diffuse inflow.
DIFF_NFIVE	Q95 for the diffuse inflow.
DIFF_SHIFT	Shift parameter for the diffuse inflow.
DIFF_CORR	Correlation coefficient for the diffuse inflow.
DIFF_DAT	Non-parametric file for the diffuse inflow.
DetDecay1	Decay rate for the determinand 1.
DIFFQ1_DTY	Distribution type for determinand 1.
DIFFQ1_MEA	Mean Load for determinand 1.
DIFFQ1_SD	Standard deviation for Load for determinand 1.
DIFFQ1_SHI	Shift parameter for determinand 1.
DIFFQ1_COR	Correlation coefficient for the determinand 1.
DIFFQ1_DAT	Non-parametric file for determinand 1.
	Same as above for determinands 2 to 10.
TempNPD	Non-parametric file for temperature for the reach.
SSNPD	Suspended solids file for the reach. If a file is entered this overwrites the file created automatically by the tool using the General Settings form.
TARGET_1	Target concentration for determinand 1. Repeated for determinands 2 to 10.
WFD_Std1_1	WFD class boundary (high) for determinand 1 (the boundary good is specified in the WFD_Std2_1 field etc.). Repeated for determinands 2 to 10.
QMeanJan	Change factor for the QMean for January. The annual QMean is multiplied by this factor to generate monthly statistics. Repeated for months Feb to Dec.
Q95Jan	Change factor for the Q95 for January. The annual Q95 is multiplied by this factor to generate monthly statistics. Repeated for months Feb to Dec.
MonthlyFlow	A value of 1 in this field instructs the tool to generate a monthly npd file for this reach.
DiffuseCalAdjQ1	Calibration adjustments for determinand Q1 which can be created by the calibration mapping tool on the Create SIMCAT File form.

Table 9 Regional Database table SimReaches

SimFeatures Table

This feature class, containing information on the SIMCAT features, is populated when the regional model is initialised using the Open and Update tool in the GIS interface. It collates information held in other tables in the Regional Database and the Common Database. Tables that are accessed during this process are:

SamplePointQuality – Observed river quality data.
DischargeQuality – Observed effluent quality data.
SimDischarges – Information (including spatial) on the discharges including flow data.
SimAbstractions – Information (including spatial) on the abstractions including flow data.
SimRiverFlowGauges – Information (including spatial) on the river flow gauges including flow data.
SimPlottingPoints: Information (including spatial) on the plotting points (separate to those created at regular intervals when running the Create SIMCAT File tool (i.e. in the National SIMCAT models).
SimRiverQuality – Information (including spatial) on river monitoring stations.
SimOtherFeatures – Information (including spatial) on other features including tributaries.
SimNodes Table – Information (including spatial) on the nodes, marking the start and end of reaches, is included in the attributes table. The table includes a field called UpstreamArea that defines the area upstream of a headwater. This area is used to calculate the headwater flows based on the flows derived from the WB_FlowEstimates table, as described earlier. Calculated values are overridden by flows in the CalHeadwaterFlow, also in the Regional Database, which can be used to calibrate the flow model. When the Open and Update tool is used, the SimNodes attributes table is populated with quality data from the HeadWaterQuality table in the Regional Database or the default setting from the Common Database.

Settings in the SimFeatures and SimNodes attributes tables can be edited using the settings forms (Feature Settings, Feature Load Settings, Node Settings) or directly in ArcGIS. Values in the source tables are, however, not modified so that when the model is rebuilt, the modified values are replaced with the original values from the source tables.

Key fields in the SimFeatures and SimNodes tables are listed below in Table 10.

Field Name	Description
WaterBodyNo	Waterbody number within which feature is located.
FEATURE_NA	Name of feature.
SAMPLES_F	Number of samples for flow for the feature.
FLOW_DIST	Distribution type for flow for the feature.
FLOW_MEAN	Mean flow for the feature.
FLOW_NPILE	Q95 for flow for the feature.
FLOW_SHIFT	Shift parameter for flow for the feature.
FLOW_CORR	Correlation coefficient for flow for the feature.
SAMPLES_Q1	Number of samples for determinand 1.
DIST_Q1	Distribution type for determinand 1.
MEAN_Q1	Mean Concentrations for determinand 1.
SD_Q1	Standard deviation for Concentration for determinand 1.
SHIFT_Q1	Shift parameter for Concentration for determinand 1.
CORR_Q1	Correlation coefficient for Concentration for determinand 1.
CORR_Q*	Repeated determinand 2 to 10.
FILE_Q	Flow non-parametric distribution file.
FILE_Q1	Non-parametric file for Load for determinand 1.
FILE_Q*	Repeated determinand 2 to 10.
TARGET_1	Target type for determinand 1.
	Repeated for determinands 2 to 10
TargetWB	Target lake waterbody if water is pumped to a lake.
OverrideWB	Overrides target waterbody in SIMCAT dat file that is generated by the Create SIMCAT processing tools.
OtherWB	Waterbody ID of the waterbody into which the feature discharges if it does not discharge to a river.
QMeanJan	Average monthly abstraction for January (used by the lake model).
Q95Jan	Average monthly Q95 abstraction for January (used by the lake model).
QCorrJan	Average correlation between abstraction and river flow for January (used by the lake model) .
Qcorr*	Repeated for Feb to Dec
WQDataCode	Sample point code for features (discharge or river quality).
PermitNo	Permit number for discharges.
PC_Q****	90 percentile concentration.

Table 10 Regional Database table SimFeatures

SimWaterBodies Table

This attributes feature class, containing information on the SIMCAT waterbodies, is populated when the regional model is initialised using the Open and Update tool. It collates information held in other tables in the selected Regional Database that are accessed during this process.

Key fields in the SimWaterBodies table are listed below in Table 11.

Field Name	Description
EA_WB_ID	Waterbody number.
DSTREAM_WB	Downstream waterbody for waterbodies with no reaches (loads and flows are routed downstream).
RoutingWB	Reference for estuary or coastal waterbody for which loads and flows are transferred.
RoutingWB2	Second reference for estuary or coastal waterbody for which loads and flows are transferred if the waterbody connects to more than one estuary or coastal waterbody.
RoutingPC	Percentage of flows and loads routed to the first waterbody.
RoutingPC2	Percentage of flows and loads routed to the second waterbody.
LVChangeQ1	Change factor for loads from livestock.
ARChangeQ1	Change factor for loads from arable.
STChangeQ1	Change factor for loads from septic tanks.
URChangeQ1	Change factor for loads from urban.
BGChangeQ1	Change factor for loads from background.
DMChangeQ1	Change factor for loads from diffuse mines.
LVNPDQ1	Reference npd file name for livestock inputs.
ARNPDQ1	Reference npd file name for arable inputs.
STNPDQ1	Reference npd file name for septic tank inputs.
URNPDQ1	Reference npd file name for urban inputs.
BGNPDQ1	Reference npd file name for background inputs.
DMNPDQ1	Reference npd file name for diffuse mine inputs.
	Repeated for determinands 2 to 10.
QMeanAdj	Change factor for mean diffuse flow.
Q95Adj	Change factor for Q85 diffuse flows.
StdBackQ1	Background concentration to calculate BLM standard.
	Repeated for determinands 2 to 10.

Table 11 Regional Database table SimWaterBodies

SimLakes Table

This attributes feature class, containing information on the lake features, is populated when the regional model is initialised using the Open and Update tool. It collates information held in other tables in the national and regional databases and the Common Database. Tables that are accessed during this process are:

LakeSampleQuality – Observed water quality data for the lakes in the Common Database.
Def_LakeSettings – Default settings for lake sediment concentrations and process rates in the Common Database.
Lake_RATES – Lakes specific settings for sediment concentrations and process rates in the Regional Database.
LakeMonthlyRatesSSR – Monthly setting rates in the Regional Database.
LakeMonthlyRatesSRR – Monthly sediment release rates in the Regional Database.

Field Name	Description
Name	Name of lake.
OffOnline	Specifies if lake is online, connected to SIMCAT reaches or offline.
LakeArea	Area of the lake in km.
LakeVolume	Volume of the lake in Ml.
LakeDepth	Average depth of the lake in m.
LocalCatch	Local catchment area in km2.
SimPeriod	Period in years of the simulation.
VolNPDFile	Name of NPD file with details of volume variability.
GWInflow	Mean groundwater inflow.
GWInflowQ9	Q95 of groundwater inflow.
GWInflowCo	Correlation between groundwater inflow and river flow.
CompFlow	Mean compensation flow.
CompFlowSD	Standard deviation of compensation flow.
Q1_SetRate	Settlement rate parameter (det 1).
Q1_SRUB	Upper bound of settlement rate (det 1).
Q1_RelRate	Sediment release rate (det 1).
Q1_RRUB	Upper bound of sediment release rate (det 1).
Q1_BurRate	Permanent burial rate (det 1).
Q1_BRUB	Upper bound of permanent burial rate (det 1).
Q1_SedConc	Sediment concentration (det 1).
Q1_SCUB	Upper bound of sediment concentration (det 1).
AnglingDay	Number of angling days.
Exclude	Exclude from simulation.
GWQual_Q1	Mean of groundwater concentration (det 1).
GWQualSD_1	Standard deviation of groundwater concentration (det 1).
GWQualCo_1	Correlation between groundwater concentration and river flow (det 1).
TARGET1	Lake quality target (det 1).
AvTemp_1	Average lake temperature for January.
DynSed	Flag to apply dynamic sediment interaction.
Timestep	Time set in days for the simulation.
Detailed	Flag to run detailed model.

Table 12 Regional Database table SimLakes

Model Outputs

When SIMCAT is run and the GIS interface is used to generate plots, a number of output tables are created in the Output Database. These are used to generate the various maps and plots that the interface creates.

Mapped output layer (GIS1)

When the Plot Output tool is used in the GIS interface and the Create Maps menu item selected, a new layer is created, based on the name of the Simcat dat file name. The fields in the output table for the layers created from the GIS1.csv files are shown below in Table 13.

Table 13 Output table *GIS1
GIS1__** (* = name of Simcat dat file, = determinand, * = partitioning)
Field Name	Description
ReachNo	Reach Number from SIMCAT run.
GISCode	GIS code providing Easting (first 6 digits) and Northing (last 6 digits).
DISHeadKM	Distance from head of reach in km.
MeanQMld	Average river flow.
Q90Mld	Q90 river flow.
Q95Mld	Q95 river flow.
Q99Mld	Q99 River flow.
MeanConc_ug/l	Mean Load (ng/l, ug/l or mg/l). When Simcat runs it carries out the simulation in the smallest unit (e.g. ng/l if one of the determinands has these units).
LCLimMnCon	Lower confidence limit for simulated mean Load.
UCLimMnCon	Upper confidence limit for simulated mean Load.
CalcValQ90	90 percentile for simulated Load.
LCLimPer90	Lower confidence limit for 90 percentile for simulated Load.
UCLimPer90	Upper confidence limit for 90 percentile for simulated Load.
CalcValQ95	95 percentile for simulated Load.
LCLimPer95	Lower confidence limit for 95 percentile for simulated Load.
UCLimPer95	Upper confidence limit for 95 percentile for simulated Load.
CalcValQ99	99 percentile for simulated Load.
LCLimPer99	Lower confidence limit for 99 percentile for simulated Load.
UCLimPer99	Upper confidence limit for 99 percentile for simulated Load.
MeanLdKGd	Mean chemical load.
LCLimMnLd	Lower confidence limit for mean chemical load.
UCLimMnLd	Upper confidence limit for mean chemical load.
Q90LdKGd	90 percentile for chemical load.
LCLQ90MnLd	Lower confidence limit for 90 percentile of chemical load.
UCLQ90MnLd	Upper confidence limit for 90 percentile of chemical load.
Q95LdKGd	95 percentile for chemical load.
LCLQ95MnLd	Lower confidence limit for 95 percentile of chemical load.
UCLQ95MnLd	Upper confidence limit for 95 percentile of chemical load.
Q99LdKGd	99 percentile for chemical load.
LCLQ99MnLd	Lower confidence limit for 99 percentile of chemical load.
UCLQ99MnLd	Upper confidence limit for 99 percentile of chemical load.
TargDetMgl	Target Load.
PercEffDis	Percentage contribution of discharges to load.
FeatName	Feature name.
US_DS_Feat	Upstream (U/S), downstream (D/S) or at (at) feature.
ReachName	Reach name.
TypeCode	SIMCAT feature type (see SIMCAT manual).
X	X coordinate.
Y	Y coordinate.
Det_No	Determinand number (1-10 from General Settings form).
ObsFlow	Observed river flow.
ObsQ90Flow	Observed Q90 flow.
ObsQ95Flow	Observed Q95 flow.
ObsQ99Flow	Observed Q99 flow.
ObsConc	Observed Load.
ObsQ90Conc	Observed 90 percentile Load.
ObsQ95Conc	Observed 95 percentile Load.
ObsQ99Conc	Observed 99 percentile Load.
NumSamples	Number of samples for observed data.
ObsConcUCL	Observed mean Load upper confidence limit.
ObsConcLCL	Observed mean Load lower confidence limit.
TargetMean	1 = above target, 0 = below target for simulated mean Load.
Target90	2 = above target, 0 = below target for simulated 90 percentile Load.
ObsDiffMean	Percentage difference between simulated and observed mean Load.
ObsDiff90	Percentage difference between simulated and observed 90%ile Load.
ObsDiff95	Percentage difference between simulated and observed 95%ile Load.
ObsDiff99	Percentage difference between simulated and observed 99%ile Load
FlowDiffMe	Percentage difference between simulated and observed mean flow.
FlowDiffQ95	Percentage difference between simulated and observed Q95 flow.
FLoadSim	Simulated load (product of average flow and average Load).
FLoadObs	Observed load (product of average flow and average Load).
ObsTargetMean	1 = above target, 0 = below target for observed mean Load.
ObsTarget90	2 = above target, 0 = below target for observed 90 percentile Load.
FLoadDiff	Percentage difference between simulated and observed load (product of average flow and average Load).
SWConc	Average concentration from sewage works.
IMConc	Average concentration from intermittent discharges.
INConc	Average concentration from industry.
MIConc	Average concentration from minewaters.
LSConc	Average concentration from agricultural livestock.
ARConc	Average concentration from agricultural arable.
HWConc	Average concentration from highways.
URConc	Average concentration from urban sources.
ATConc	Average concentration from atmospheric sources.
BGConc	Average concentration from background.
STConc	Average concentration from OSWwTWs.
LKConc	Average concentration from lake sources.
SWLoad	Average load from sewage works.
IMLoad	Average load from intermittent discharges.
INLoad	Average load from industry.
MILoad	Average load from minewaters.
LSLoad	Average load from agricultural livestock.
ARLoad	Average load from agricultural arable.
HWLoad	Average load from highways.
URLoad	Average load from urban sources.
ATLoad	Average load from atmospheric sources.
BGLoad	Average load from background.
STLoad	Average load from OSWwTWs.
LKLoad	Average load from lake sources.
DConc	Total Load associated with diffuse sources.
DLoad	Total load associated with diffuse sources.
TargetHigh	Target concentration for WFD class High. This is repeated for Good, Moderate, Poor and Bad.
EA_WB_ID	Waterbody in which the output point is located (populated using the Map Output tools).
DOCMean	Mean DOC generated by BLM Analysis processing tools.
pHMean	Mean pH generated by BLM Analysis processing tools.
CaMean	Mean Ca generated by BLM Analysis processing tools.
StdBackground	Background for calculating BLM standards generated by BLM Analysis processing tools.
BioF	Bioavailablity factor generated by BLM Analysis processing tools.
BLMStd	BLM standard generated by BLM Analysis processing tools.
BLMConc	Bioavailable metal concentration generated by BLM Analysis processing tools.
BLMCompliance	Compliance (0 or 1) with BLM standard generated by BLM Analysis processing tools.
PntConc	Point source concentration.
PntLoad	Point source load.
CalScore	Calibration score.
GapAdded	Load added by gap filling.
GapRemoved	Load removed by gap filling.
DecayRemoved	Load removed by decay.
AbsRemoved	Load removed by abstraction.
Obs_SD	Standard deviation of observed data.
TValue1	T test value 1.
TValue2	T test value 2.
TValue1Desc	Description of whether passes or fails T test 1.
TValue2Desc	Description of whether passes of fails T test 2.

Apportionment tables

When the Create Output Tables menu item is applied a number of tables are created in the Output Database which are used to create apportionment pie charts and upstream contribution charts. All of the table names are appended onto the SIMCAT dat file name.

When pie charts are created using the Plot Sector Charts tool, values for the selected waterbodies are transferred to the SimWaterBodiesCents table for mapping at the waterbody centroid (values and units are the same).

ContributingInputs – This table collates the inputs to each waterbody from each sector and the cumulative inputs for all waterbodies upstream and including each waterbody. The key fields are listed below.

Table 14 Output table ***ContributingInputs
***ContributingInputs
Field Name	Description
Catchment	Waterbody Reference Number.
DetNo	Determinand number as listed on General Settings form.
DetCode	Determinand code as listed in the DeterminandsForSimcat table.
DatFile	Dat file that was used to generate the output.
Units	Units for input loads.
SW_CON	Load from sewage works.
IM_CON	Load from intermittent discharge.
IN_CON	Load from industry.
MI_CON	Load from minewaters.
LS_CON	Load from agricultural livestock.
AR_CON	Load from agricultural arable.
HW_CON	Load from highways.
UR_CON	Load from urban.
AT_CON	Load from atmospheric deposition.
BG_CON	Load from background.
ST_CON	Load from OSWwTWs.
AI_CON	Load from diffuse intermittent discharges.
AS_CON	Load from diffuse small sewage works.
SW_CUMCON	Upstream load from sewage works.
IM_CUMCON	Upstream load from intermittent discharge.
IN_CUMCON	Upstream load from industry.
MI_CUMCON	Upstream load from minewaters.
LS_CUMCON	Upstream load from agricultural livestock.
AR_CUMCON	Upstream load from agricultural arable.
HW_CUMCON	Upstream load from highways.
UR_CUMCON	Upstream load from urban.
AT_CUMCON	Upstream load from atmospheric deposition.
BG_CUMCON	Upstream load from background.
ST_CUMCON	Upstream load from OSWwTWs.
AI_CUMCON	Upstream load from diffuse intermittent discharges.
AS_CUMCON	Upstream load from diffuse small sewage works.

ContributingOutputs – This table collates the sector concentrations at the downstream limit of each waterbody. The key fields are listed below (Table 15).

Table 15 Output table ***ContributingOutputs
***ContributingOutputs
Field Name	Description
Catchment	Waterbody Reference Number.
DetNo	Determinand number as listed on General Settings form.
DetCode	Determinand code as listed in the DeterminandsForSimcat table.
DatFile	Dat file that was used to generate the output.
SW_CON	Concentration from sewage works.
Unit	Unit (this is the smallest unit for the simulated determinands).
IM_CON	Concentration from intermittent discharge.
IN_CON	Concentration from industry.
MI_CON	Concentration from minewaters.
LS_CON	Concentration from agricultural livestock.
AR_CON	Concentration from agricultural arable.
HW_CON	Concentration from highways.
UR_CON	Concentration from urban.
AT_CON	Concentration from atmospheric deposition.
BG_CON	Concentration from background.
ST_CON	Concentration from OSWwTWs.
AI_CON	Concentration from diffuse intermittent discharges.
AS_CON	Concentration from diffuse small sewage works.
PNT_CON	Total concentration from point sources.
DIF_CON	Total concentration from diffuse sources.

ContributingOutputLoads – This table collates the sector loads at the downstream limit of each waterbody. The fields are the same as for the ContributingOutputs table. The key fields are shown below (Table 16).

Table 16 Output table ***ContributingOutputLoads
***ContributingOutputsLoads
Field Name	Description
Catchment	Waterbody Reference Number.
DetNo	Determinand number as listed on General Settings form.
DetCode	Determinand code as listed in the DeterminandsForSimcat table.
DatFile	Dat file that was used to generate the output.
SW_CON	Load from sewage works.
Unit	Unit (this is the smallest unit for the simulated determinands).
IM_CON	Load from intermittent discharge.
IN_CON	Load from industry.
MI_CON	Load from minewaters.
LS_CON	Load from agricultural livestock.
AR_CON	Load from agricultural arable.
HW_CON	Load from highways.
UR_CON	Load from urban.
AT_CON	Load from atmospheric deposition.
BG_CON	Load from background.
ST_CON	Load from OSWwTWs.
AI_CON	Load from diffuse intermittent discharges.
AS_CON	Load from diffuse small sewage works.
PNT_CON	Total Load from point sources.
DIF_CON	Total Load from diffuse sources.

ContributingMonthlyOutputs – This table collates the monthly sector concentrations at the downstream limit of each waterbody. The key fields are listed below (Table 17).

Table 17 Output table ***ContributingMonthlyOutputs
***ContributingMonthlyOutputs
Field Name	Description
Catchment	Waterbody Reference Number.
DetNo	Determinand number as listed on General Settings form.
DetCode	Determinand code as listed in the DeterminandsForSimcat table.
DatFile	Datfile that was used to generate the output.
SW_CON	Concentration from sewage works.
Unit	Unit (this is the smallest unit for the simulated determinands).
Month	Month.
IM_CON	Concentration from intermittent discharge.
IN_CON	Concentration from industry.
MI_CON	Concentration from minewaters.
LS_CON	Concentration from agricultural livestock.
AR_CON	Concentration from agricultural arable.
HW_CON	Concentration from highways.
UR_CON	Concentration from urban.
AT_CON	Concentration from atmospheric deposition.
BG_CON	Concentration from background.
ST_CON	Concentration from OSWwTWs.
AI_CON	Concentration from diffuse intermittent discharges.
AS_CON	Concentration from diffuse small sewage works.
PNT_CON	Total concentration from point sources.
DIF_CON	Total concentration from diffuse sources.

ContributingSTWs – When the Plot River Chainage Graphs menu item is applied a table called ContributingSTWs is created in the Output Database which is used to wastewater contribution plots. This table lists the sewage works providing a contribution above a specified threshold (or above zero) to concentrations at the downstream boundary of each waterbody. The key fields are listed below (Table 18).

Table 18 Output table ***ContributingSTWs
***ContributingSTWs
Field Name		Description
Catchment		Waterbody ID.
FEAT_Type		Feature type (e.g. industry or wastewater treatment works).
US_STW		Name of upstream sewage works, industrial discharge or intermittent discharge.
DetNo	Determinand number as listed on General Settings form.
DetCode	Determinand code as listed in the DeterminandsForSimcat table.
DET_PERC		Percentage contribution of upstream WwTWs, Industrial Discharges, CSOs, Storm Tanks and Mine Waters to chemical loads in specified waterbody.
DET_LOAD		Load from upstream WwTWs, Industrial Discharges, CSOs, Storm Tanks and Mine Waters to the specified waterbody.
Units		Unit of the loads.

Contributing Upstream Diffuse Sectors – When the Plot River Chainage Graphs menu item is applied a series of tables are created in the Output Database for each of the selected upstream sectors (e.g. ***ContributingArable). These tables list the contribution of marked upstream areas to concentrations at the downstream boundary of each downstream waterbody. The key fields are listed below (Table 19).

Table 19 Regional database table ***Contributing***
Contributing* (* = Dat file name, ** = Sector name)
Field Name		Description
Catchment		Waterbody ID.
US_Catchment		Name of upstream area.
DetNo	Determinand number as listed on General Settings form.
DetCode	Determinand code as listed in the DeterminandsForSimcat table.
PERC		Percentage contribution of upstream area to chemical loads in specified waterbody.
LOAD		Load from upstream area to the specified waterbody.
Units		Unit of the loads.

Lakes tables

When the lake model inputs are processed, the model is run and outputs processed and a number of tables are created in the Output Database. All of the table names are appended onto the SIMCAT dat file name.

LakeInputs and LakeInputsMonthly. These tables collate all of the input loads to each regional lake from river, direct and pumped inputs (key fields shown below in Table 20 are the same for both tables).

Table 20 Output table ***LakeInputs and LakeInputsMonthly
**LakeInputs and **LakeInputsMonthly
Field Name	Description
WBID	Water body ID.
DetCode	Determinand code associated with the output.
DetNo	Number of the determinand as order on the General Settings form.
Month	Month.
Units	Units for loads.
Datfile	SIMCAT dat file name.
RIV_FLOW	Average flow into the lake from all rivers (Ml/day).
RIV_FLOWQ95	Q95 flow into the lake from all rivers (Ml/day).
LOC_FLOW	Average flow into the lake from the local catchment (Ml/day).
LOC_FLOWQ95	Q95 flow into the lake from the local catchment (Ml/day).
PUMP_FLOW	Average flow into the lake from pumped inputs (Ml/day).
PUMP_FLOWQ95	Q95 flow into the lake from pumped inputs (Ml/day).
GWFLOW	Average groundwater inflow into the lake (Ml/day).
GW_FLOWQ95	Q95 groundwater inflow into the lake (Ml/day).
DISCHARGE	Total flow into the lake from discharges (Ml/day).
ABSTRN	Total abstraction from the lake (Ml/day).
SW_CON	Direct load from sewage works.
IM_CON	Direct load from intermittent discharge.
IN_CON	Direct load from industry.
MI_CON	Direct load from minewaters.
LS_CON	Direct load from agricultural livestock.
AR_CON	Direct load from agricultural arable.
HW_CON	Direct load from highways.
UR_CON	Direct load from urban.
AT_CON	Direct load from atmospheric deposition.
BG_CON	Direct load from background.
ST_CON	Direct load from OSWwTWs.
BD_CON	Direct load from birds.
BO_CON	Direct load from boats.
AN_CON	Direct load from anglers.
TOT_CON	Direct load from all sectors.
**_RIVCON	Same as above but loads from river inputs.
**_PUMP	Same as above but loads from pumped inputs.
**_LKTR	Same as above but loads transferred from upstream lakes.
Total_Diffuse	Total diffuse source load.
Total_Point	Total point source load.

SIM – This table collates the average simulated concentrations from the lake simulation. The key fields are shown below (Table 21).

Table 21 Output table ***SIM
***SIM
Field Name	Description
WBID	Water body ID.
DetCode	Determinand code associated with the output.
DetNo	Number of the determinand as ordered on the General Settings form.
Month	Month.
DatFile	SIMCAT dat file name.
Units	Units for simulated concentration.
NumShots	Number of shots in simulation.
TotalConc	Total simulated concentration.
TotalConcSD	Standard deviation of total simulated concentration.
TotalConc90	90%ile of total simulated concentration.
TotalConc10	10%ile of total simulated concentration.
TotalSedConc	Total sediment concentration.
TotalSedConcSD	Standard deviation for total simulated total sediment concentration.
TotalSedConc90	90%ile of total simulated total sediment concentration.
TotalSedConc10	10%ile of total simulated total sediment concentration.
SW_OUT	Simulated concentration associated with sewage works.
IM_OUT	Simulated concentration associated with intermittent discharge.
IN_OUT	Simulated concentration associated with industry.
MI_OUT	Simulated concentration associated with minewaters.
LS_OUT	Simulated concentration associated with agricultural livestock.
AR_OUT	Simulated concentration associated with agricultural arable.
HW_OUT	Simulated concentration associated with highways.
UR_OUT	Simulated concentration associated with urban.
AT_OUT	Simulated concentration associated with atmospheric deposition.
BG_OUT	Simulated concentration associated with background.
ST_OUT	Simulated concentration associated with OSWwTWs.
BD_OUT	Simulated concentration associated with birds.
BO_OUT	Simulated concentration associated with boats.
AN_OUT	Simulated concentration associated with anglers.
**_SD	Standard deviation for concentration associated with each sector, as shown above.
FlowOut	Average outflow from the lake.
FlowOutQ95	Q95 of outflow from the lake.
PumpIn	Average pumped input to the lake.
PumpInQ95	Q95 of pumped input to the lake.
Abst	Average abstraction from the lake.
SedFlux	Proportion of flux of chemical derived from release from the sediment.
RetnTime	Lake retention time in years.
Target	Water quality target.
AvInfluentConc	Average influent concentration.

SIMTS – This table collates the simulated concentrations for each month of the lake simulation (i.e. the steady state monthly profile. The first characters in the name are derived from the SIMCAT dat file name so that separate tables can be stored for different SIMCAT model runs. The key fields are shown below (Table 22).

Table 22 Output table ***SIMTS
***SIMTS
Field Name	Description
WBID	Water body ID.
DetCode	Determinand code.
DetNo	Number of the determinand as ordered on the General Settings form.
Month	Month.
Year	Year from starting point of zero.
DatFile	SIMCAT dat file name.
Units	Units for simulated concentration.
TotalConc	Average simulated concentration from all sectors.
TotalConcSD	Standard deviation of simulated concentration from sectors.
TotalConc10	Ninety percentile of simulated concentration from sectors.
TotalConc90	Ten percentile of simulated concentration from sectors.
TotalSedConc	Average simulated sediment concentration from all sectors.
TotalSedConcSD	Standard deviation of simulated sediment concentration from sectors.
TotalSedConc10	Ninety percentile of simulated sediment concentration from sectors.
TotalSedConc90	Ten percentile of simulated sediment concentration from sectors.
FlowOur	Average outflow from the lake.
FlowOutQ95	Q95 of outflow from the lake.
AbsMean	Average abstraction from the lake.
AbsQ95	Q95 of abstraction from the lake.
NumShots	Number of shots in simulation.
SedFlux	Proportion of flux of chemical derived from release from the sediment.
SW_AN	Sewage works annual mean concentration repeated for all sectors.
SW_SD	Standard deviation of mean concentration repeated for all sectors.
PumpIn	Average pumped inflow.
PumpInQ95	Q95 of pumped inflow.
Abst	Average quantity abstracted.

Lake contributing input tables – These tables contain information on the contribution of upstream individual point sources and marked diffuse source areas on inputs to lakes, estuaries and coastal waters.

Table 23 Output table ***ContributingDiffuseTRACS
***ContributingLTraCSTWs
Field Name	Description
Catchment	Lake, estuary of coastal waterbody reference.
Source_Type	Type of upstream sources.
Feature_Type	Type of point sources (sewage works, industry etc.).
Feature_Name	Name of upstream feature.
DetCode	Determinand code.
GISCode	GIS Code of source.
UpstreamLoad	Load from upstream sources.
Units	Units.

Table 24 Output table ***ContributingDiffuseTRACS
***ContributingLTraCSTWs
Field Name	Description
Catchment	Lake, estuary of coastal waterbody reference.
US_Catchment	Upstream waterbody reference.
DetNo	Determindand number.
DetCode	Determindand code.
LOAD	Inputs load.
Unit	Units.
Sector	Sector description.
SourceType	Type of source.
SourceName	Name of sources.
GISCode	GIS Code of source.

Estuary tables

EstuaryInputs – This table collates all of the input loads to each regional estuary from rivers and direct inputs (key fields are shown below in Table 25).

Table 25 Output table ***EstuaryInputs
***EstuaryInputs
Field Name	Description
WBID	Water body ID.
DetCode	Determinand code associated with the output.
DetNo	Number of the determinand as ordered on the General Settings form.
Units	Units for load.
RIV_FLOW	Average flow into the estuary from all rivers (Ml/day).
RIV_FLOWQ95	Q95 flow into the estuary from all rivers (Ml/day).
DIR_FLOW	Average flow into the estuary from the local catchment (Ml/day).
DIR_FLOWQ95	Q95 flow into the estuary from the local catchment (Ml/day).
PUMP_FLOW	Average flow into the estuary from pumped inputs (Ml/day).
PUMP_FLOWQ95	Q95 flow into the estuary from pumped inputs (Ml/day).
TSS_Mean	Average total suspended solids in the input flow.
TSS_SD	Standard deviation for total suspended solids in the input flow.
SW_CON	Direct load from sewage works.
IM_CON	Direct load from intermittent discharge.
IN_CON	Direct load from industry.
MI_CON	Direct load from minewaters.
LS_CON	Direct load from agricultural livestock.
AR_CON	Direct load from agricultural arable.
HW_CON	Direct load from highways.
UR_CON	Direct load from urban.
AT_CON	Direct load from atmospheric deposition.
BG_CON	Direct load from background.
ST_CON	Direct load from OSWwTWs.
BD_CON	Direct load from birds.
BO_CON	Direct load from boats.
AN_CON	Direct load from anglers.
TOT_CON	Direct load from all sectors.
**_RIVCON	Same as above but loads from river inputs.

***EstuaryOutputs – This table collates the outputs of the estuary calculations. The first characters in the name are derived from the SIMCAT dat file name so that separate tables can be stored for different SIMCAT model runs. The key fields are shown below (Table 25).

Table 26 Output table ***EstuaryOutputs
***EstuaryOutputs
Field Name	Description
WBID	Water body ID.
DetCode	Determinand code associated with the output.
DetNo	Number of the determinand as ordered on the General Settings form.
Units	Units for load.
DatFile	SIMCAT dat file name.
SW_INF	Average influent concentration associated with sewage works.
IM_INF	Average influent concentration associated with intermittent discharge.
IN_INF	Average influent concentration associated with industry.
MI_INF	Average influent concentration associated with minewaters.
LS_INF	Average influent concentration associated with agricultural livestock.
AR_INF	Average influent concentration associated with agricultural arable.
HW_INF	Average influent concentration associated with highways.
UR_INF	Average influent concentration associated with urban.
AT_INF	Average influent concentration associated with atmospheric deposition.
BG_INF	Average influent concentration associated with background.
ST_INF	Average influent concentration associated with OSWwTWs.
BO_INF	Average influent concentration associated with boats.
TOTMean_INF	Average influent concentration associated with all sectors.
TOT10_INF	Ten percentile of influent concentrations associated with all sectors.
TOT90_INF	Ninety percentile of influent concentrations associated with all sectors.
**_EFF	As above but effluent concentrations flowing out of estuary.
TSS_FRESH	Average total suspended solids derived from freshwater inputs.
TSS10_FRESH	10 %ile of total suspended solids derived from freshwater inputs.
TSS90_FRESH	90 %ile of total suspended solids derived from freshwater inputs.
TSS_SEA	Average total suspended solids derived from freshwater inputs.
TSS10_SEA	10 %ile of total suspended solids derived from seawater inputs.
TSS90_SEA	90 %ile of total suspended solids derived from seawater inputs.
TSS_EST	Observed average total suspended solids in estuary.
TSS10_EST	10%ile of observed average total suspended solids in estuary.
TSS90_EST	90%ile of observed average total suspended solids in estuary.
SEDMean	Average concentration associated with suspended solids.
SED10	10%ile of concentrations associated with suspended solids.
SED90	90%ile of concentrations associated with suspended solids.

Coastal waters tables

CoastalInputs – This table collates all of the input loads to each regional coastal water from rivers and direct inputs (key fields are shown below in Table 27).

Table 27 Output table ***CoastalInputs
***CoastalInputs
Field Name	Description
WBID	Water body ID.
DetCode	Determinand code associated with the output.
DetNo	Number of the determinand as ordered on the General Settings form.
Units	Units for load.
RIV_FLOW	Average flow into the estuary from all rivers (Ml/day).
RIV_FLOWQ95	Q95 flow into the estuary from all rivers (Ml/day).
DIR_FLOW	Average flow into the estuary from the local catchment (Ml/day).
DIR_FLOWQ95	Q95 flow into the estuary from the local catchment (Ml/day).
PUMP_FLOW	Average flow into the estuary from pumped inputs (Ml/day).
PUMP_FLOWQ95	Q95 flow into the estuary from pumped inputs (Ml/day).
TSS_Mean	Average total suspended solids in the input flow.
TSS_SD	Standard deviation for total suspended solids in the input flow.
SW_CON	Direct load from sewage works.
IM_CON	Direct load from intermittent discharge.
IN_CON	Direct load from industry.
MI_CON	Direct load from minewaters.
LS_CON	Direct load from agricultural livestock.
AR_CON	Direct load from agricultural arable.
HW_CON	Direct load from highways.
UR_CON	Direct load from urban.
AT_CON	Direct load from atmospheric deposition.
BG_CON	Direct load from background.
ST_CON	Direct load from OSWwTWs.
BD_CON	Direct load from birds.
BO_CON	Direct load from boats.
AN_CON	Direct load from anglers.
TOT_CON	Direct load from all sectors.
**_RIVCON	Same as above but loads from river inputs.

Flow Calibration Tables

This table contains the adjustment factors applied to the model diffuse inflows following calibration. The fields are shown in Table 28 (below).

Table 28 Regional Database flow calibration table
FlowCalibrationTable_***
Field Name	Description
SIMNO	References the SimNo field in SimReaches.
MAPINFO_ID	References the MapInfo_ID field in SimReaches.
UniqueRef	References the Unique_Ref field in SimReaches.
ReachAdj	The adjustment applied to the specified reach diffuse inflow Qmean.
ReachAdjQ95	The adjustment applied to the specified reach diffuse inflow Q95
NodeAdj	The adjustment applied to the Qmean inflow for the headwater node associated with the specified reach after first applying the reach adjustment. If the adjustment is set as the same as for the reach the value will be 1.
NodeAdjQ95	The adjustment applied to the Q95 inflow for the headwater node associated with the specified reach after first applying the reach adjustment. If the adjustment is set as the same as for the reach the value will be 1.
Comments	Comments such as the method applied in calibration.
EA_WB_ID	References the EA_WB_ID field in SimReaches.

Water Quality Calibration Tables

This table contains the adjustment factors applied to the model input loads following calibration. The fields are shown in Table 29 (below).

Table 29 Regional database water quality calibration table
WQCalibrationTable_***
Field Name	Description
SIMNO	References the SimNo field in SimReaches.
MAPINFO_ID	References the MapInfo_ID field in SimReaches.
Unique_Ref	References the Unique_Ref field in SimReaches.
EA_WB_ID	References the EA_WB_IDfield in SimReaches.
DetCode	Determinand code.
SWAdj	Adjustment applied to sewage works inputs (normally 1 as diffuse inputs are calibrated).
LVAdj	Adjustment applied to livestock inputs.
	Similar adjustments are applied to the other sectors.
SWCOV	Coefficient of variation applied to sewage works inputs.
	Similar COV values are applied to the other sectors.

\ SAGIS Non-parametric files ==========================

This chapter shows the format of non-parametric files that are used by SAGIS, additional to those described in the SIMCAT manual.

StandardNPDs table in the Common Tables Database. The format is a ranked series of 1000 values that have an average value of 1 (see below), and is used by SAGIS to generate diffuse input npd files based on the annual load to each waterbody and reach derived from the export load databases.

ID	1	2	3	4	5	to 1000
Value	9.51E-03	9.91E-03	1.09E-02	1.12E-02	1.42E-02	to 38.2

Lake volume npd file. These files are used by SAGIS lake model to take into account observed variability in lake volume. For each month (1 to 12 from left to right) the 1 %ile to 100%ile volumes (as proportion of full) must be specified. These files must be located in the same folder as the SIMCAT dat file.

Lake abstraction npd file. These files are used by SAGIS lake model to take into account observed variability in lake abstraction. For each month (1 to 12 from left to right) the 1 %ile to 100%ile abstraction volumes should be specified. These files must be located in the same folder as the SIMCAT dat file.

Hydrological series file. This is a series of daily values for diffuse flow with a mean of zero and standard deviation of 1.

The format is show below

01/01/1980, 0.01

02/01/1980, 0.023

03/01/1980, -0.02

04/01/1980, 0.7

etc.

Tributary file (for external input). A csv file with the following data fields:

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 1, Agg Sewage Works’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 1, Agg Intermittents’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 1, Agg Mines’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 1, Livestock’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 1, Arable’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 1, Highways’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 1, Urban’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 1, Atmospheric’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 1, Background’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 1, Septic Tanks’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 2 Agg Sewage Works’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 2, Agg Intermittents’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 2, Agg Mines’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 2, Livestock’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 2, Arable’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 2, Highways’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 2, Urban’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 2, Atmospheric’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 2, Background’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 2, Septic Tanks’

Load, Load SD, Load Corr, Number Samples, NPD File, ‘Det 3 Agg Sewage Works’

Etc.

[^2]: Reynolds C.S. & Maberly S.C. (2002) A simple method for approximating the supportive capacities and metabolic constraints in lakes and reservoirs. Freshwater Biology 47, 1183-1188
